Rubber Duck Antenna

This Omni-directional All-network Compatible Rubber Duck Antenna features a standard SMA connector with 180° vertical bending and 360° horizontal rotation for flexible installation. It provides stable omnidirectional signal coverage across multiple frequency bands. Manufactured by Shenzhen Qianmu Communication Technology Co., Ltd., the antenna is built with a new environmentally friendly rubber housing and high-purity copper radiating elements, helping improve signal stability, connector durability, and compatibility with a wide range of wireless devices.

Working Principle and Measured Data

1.Operating Principle

This model supports all network bands.Rubber Duck Antenna Enables bidirectional conversion between full-band electrical signals and RF electromagnetic waves: High-frequency electrical signals from the device are transmitted via an SMA interface to a pure copper oscillator, which radiates 2G/3G/4G/5G cellular signals as well as 2.4G/5.8G WiFi signals outward. At the same time, the device can receive all types of wireless signals from the surrounding environment in any direction and relay them back to the device, enabling stable, bidirectional, and nationwide communication. The product features a standard 50-ohm impedance design.,Significantly reduces signal transmission loss across multiple frequency bands, effectively enhancing connection stability in complex environments.

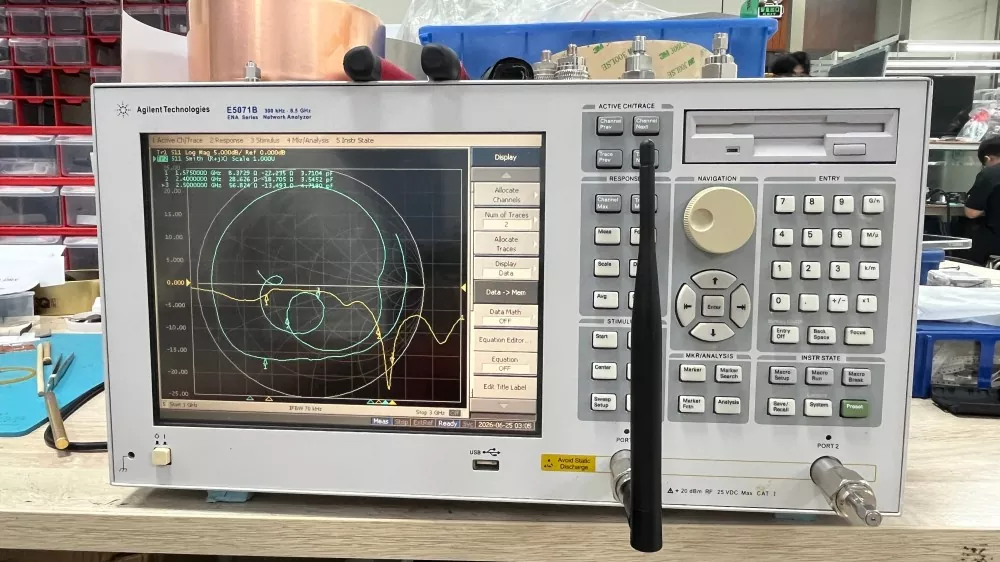

2.Factory-measured data

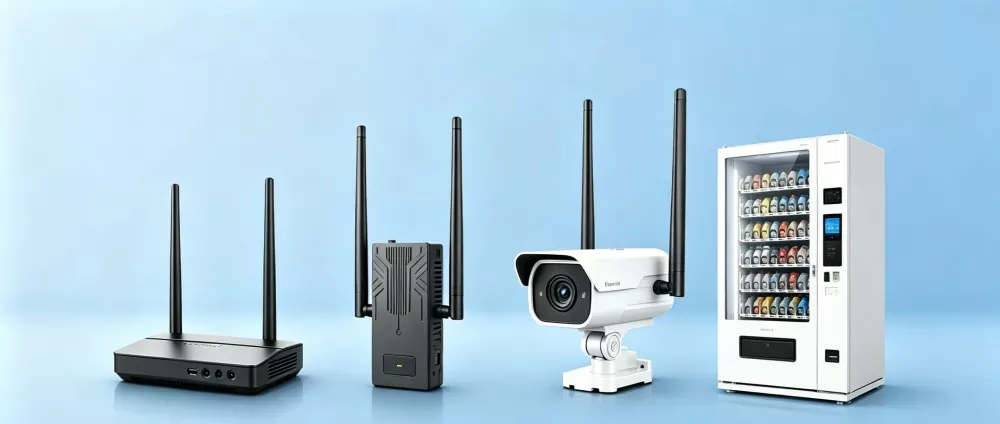

Device Compatibility Range

As a China-based manufacturer and supplier, Shenzhen Qianmu Communication Technology Co., Ltd. produces All-network Compatible Rubber Duck Antennas for a wide range of wireless communication applications. They are compatible with 2G, 3G, 4G, and 5G devices equipped with SMA or RP-SMA connectors, offering broader application compatibility than conventional WiFi antennas:

• Network Devices: All-network-compatible routers, 4G/5G CPEs, WiFi repeaters, and whole-home networking equipment for residential use.

• Security Surveillance: 4G/5G Solar-Powered Surveillance Cameras, Outdoor Wireless Bullet Cameras, Remote Video Terminals

• Industrial IoT: 2G/3G/4G/5G DTU modules, industrial gateways, PLC data collectors, IoT data transmission terminals

• Smart Agriculture: 4G Monitoring Terminal for Farmland, Greenhouse Sensor Devices, and Outdoor Environmental Data Collection Gateway

• Commercial equipment: Vending machines, outdoor advertising displays, shared charging stations, and smart networked POS devices.

• Vehicle & Security: Vehicle 4G/5G communication terminals, wireless alarm control panels, and smart security networked devices

Technical Specification Parameters

Real-world implementation cases

1. Overseas Security Brand Collaboration

A European surveillance brand purchased this 2G/3G/4G/5G all-network compatible Rubber Duck Antenna in bulk. After replacing the standard WiFi antenna, the offline rate of outdoor 4G surveillance devices was reduced from 18% to 2.3%, significantly improving network stability in remote areas with weak signal conditions.

2. Domestic Industrial IoT Projects

An industrial DTU manufacturer purchased 50,000 units of this all-network compatible Antenna in bulk. The antenna supports multi-band industrial terminals, effectively solving disconnection issues during 2G/4G band switching and reducing device communication failures by 76%.

3. Australian Agricultural Monitoring Project

A farm’s long-range 4G monitoring equipment equipped with this antenna achieved full signal strength within an 80-meter range in open environments. The system maintained stable multi-band communication under both high and low temperature conditions, eliminating nighttime disconnections and signal attenuation issues.

Comparative advantages over peers

Most Rubber Duck Antennas available on the market support only a single WiFi band and are not suitable for 2G/3G/4G/5G cellular applications. Many are produced by small contract manufacturers using lower-grade materials and lack full-band performance verification. As a professional China manufacturer and factory, Shenzhen Qianmu Communication Technology Co., Ltd. offers all-network compatible solutions with the following advantages:

Standardized Installation Guide

【Suggested image】Step-by-step installation diagram, real-shot tutorial images

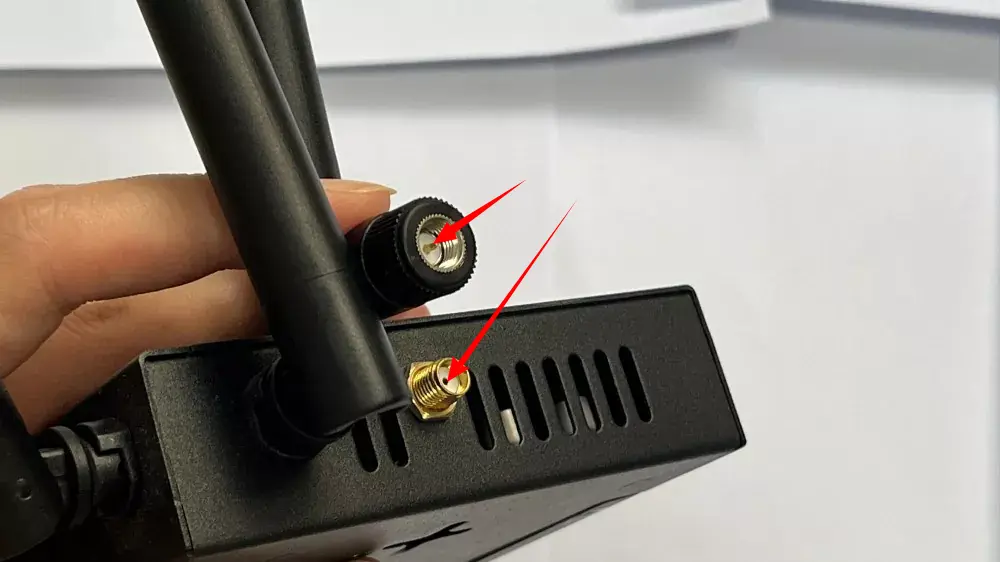

Step 1: Interface Verification

The standard SMA female connector is compatible with the male-pin interface of 2G/3G/4G/5G all-network devices. If you require an RP-SMA reverse connector, please contact the supplier for custom adaptation.

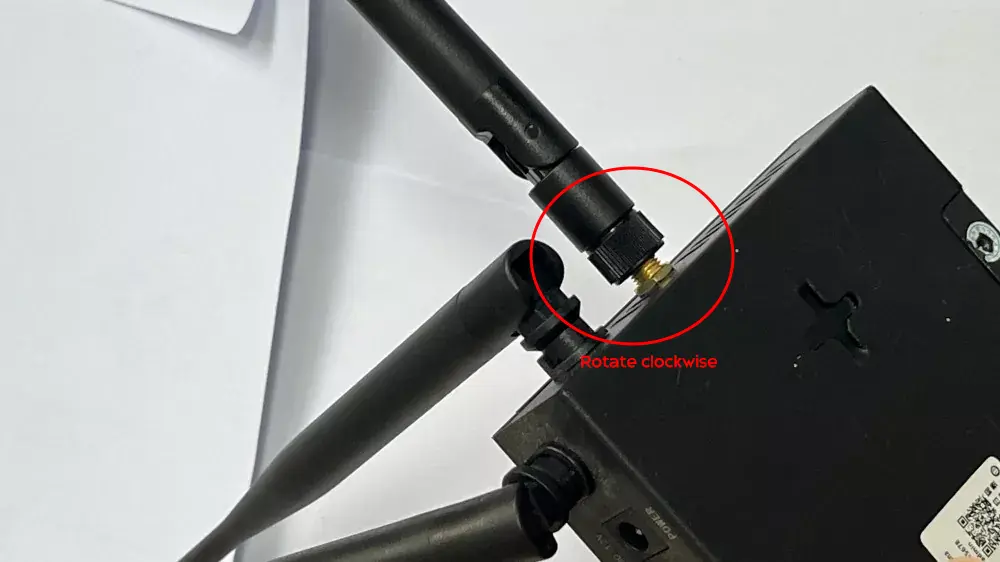

Step 2: Tighten the connector.

Tighten the hand-tightened nut gently clockwise; do not use forceful tools to tighten it. This will prevent the threads from stripping and the internal pin from breaking, ensuring smooth signal transmission across all frequency bands.

Step 3: Angle Adjustment

Bend at a 30° angle according to the device’s position – 180°; When installing outdoors or in areas with weak network signals, aim the device upward as much as possible to expand the coverage of the full-frequency band.

Qualification Certification and Factory Strength

Located in Shenzhen’s RF industry cluster, Shenzhen Qianmu Communication Technology Co., Ltd. was founded in 2009 and has been dedicated to the R&D and manufacturing of multi-band antennas for over a decade. As a verified China factory and manufacturer, we are equipped with automated injection molding, assembly production lines, a full-frequency RF testing laboratory, and an on-site inventory warehouse. For Rubber Duck Antenna production, we independently control the entire process from raw material selection and manufacturing to full-band testing and final shipment, ensuring consistent quality and reliable performance.

FAQ

Q1: Which network bands does this antenna support?

A: This Rubber Duck Antenna supports 2G/3G/4G/5G cellular networks as well as dual-band 2.4GHz/5.8GHz Wi-Fi, providing full-band coverage for a wide range of wireless devices.

Q3: Do you offer customization? What’s the minimum order quantity?

A: Qianmu Communication Technology Co., Ltd. supports frequency band fine-tuning, length adjustment, gain adjustment, logo customization, and packaging customization.

Q4:Can the weak signal of 5G devices be improved?

A: Yes, this product is optimized for 5G high-frequency signals and can effectively enhance the sensitivity of 5G signal reception in industrial, outdoor, and weak-network environments. We can provide a customized optimization solution tailored to your needs.

Q5:How is the price calculated for bulk purchasing of all-network-compatible antennas?

A: Tiered pricing—bulk orders enjoy favorable prices. This all-network-compatible, versatile model offers far better value for money than many single-frequency antenna combinations. Simply contact our supplier to receive a precise quote.
