T Type VTX Antenna

Shenzhen Qianmu Communication Technology Co., Ltd. is a China manufacturer and supplier specializing in T Type FPV Antenna solutions for FPV drones, RC aircraft, UAVs, robotics, and wireless video transmission systems. Our VTX Antenna for FPV Drone platforms are built around a T-shaped dipole structure and are available in 868MHz, 915MHz, and 2.4GHz versions. OEM/ODM customization is available for different frequency bands, connectors, cable lengths, and antenna structures to meet various wireless communication requirements.

What is a T Type VTX Antenna?

It is an Omnidirectional FPV Antenna designed for FPV video transmission systems. It is widely used in FPV drones, RC aircraft, industrial robots, and other wireless communication devices operating in the 868MHz, 915MHz, and 2.4GHz frequency bands. The T-shaped dipole structure provides stable 360° signal coverage while reducing polarization loss during flight and movement.

Designed for FPV drones and industrial RC applications, our T Type FPV Antenna can be used as either a transmitting (TX) or receiving (RX) antenna. Optimized dipole geometry and feedline impedance help improve signal stability, reducing video dropouts, screen tearing, and transmission loss in long-range or obstacle-rich environments.

Compatible Devices

This Factory-direct T Type VTX Antenna is compatible with most 915MHz / 2.4GHz Analog and Digital Image Transmission Equipment:

1. FPV Drone: Long-Range DIY Drone, Long-Distance Aerial Photography Drone, Fixed-Wing Payload Transmitter / Transmitter Unit

2. Ground receiver: 915M / 2.4G Image transmission receiver, remote control range-extending handle, aerial surveillance monitor receiving antenna

3. Industrial remote-control devices: pipeline inspection drones, surveying and mapping aircraft, and forest fire patrol robots for mountainous and forested areas.

4. Onboard Wireless Video Transmission: High-Definition Image Transmission for Construction Vehicles, Wireless Video Transmission Module for Emergency Rescue

5. Remote-controlled vehicle and boat models: large-scale long-distance sailing ship models, high-speed off-road remote-controlled vehicles with long-range image transmission.

Detailed Technical Specifications

868MHz / 915MHz / 2.4GHz Frequency Options

The 868MHz FPV Antenna, 915MHz FPV Antenna, and 2.4GHz FPV Antenna versions share the same T-shaped symmetric dipole design. The 868MHz version suits European long-range FPV regulations, the 915MHz version is widely used for North American long-distance video transmission, and the 2.4GHz version provides compatibility with most consumer analog and digital image transmission systems.

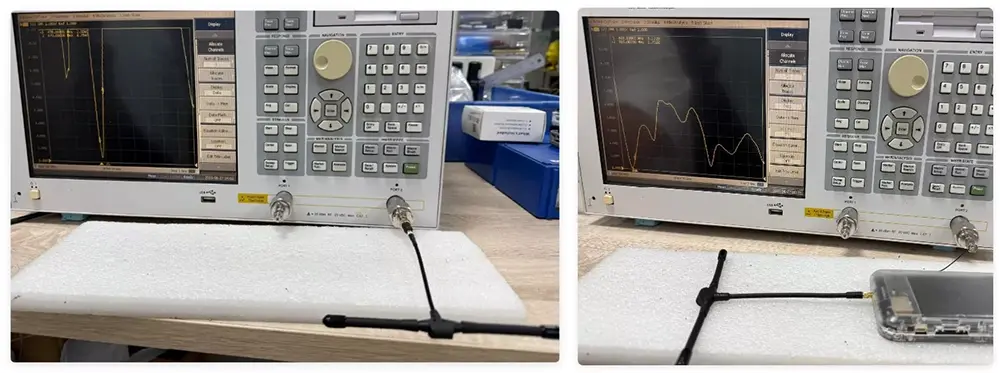

Compared with conventional antennas from peers, side by side

Simple Installation and Usage Guide

1. Aircraft-mounted launch end installation: Tighten the MMCX connector of the T-shaped antenna onto the RF port of the video transmission transmitter module. Secure the thin feeder cable along the groove on the drone's fuselage. Position the T-shaped radiator horizontally outward, keeping it away from metallic interference components such as the battery and electronic speed controller.

2. Ground receiver installation: Connect the same type of SMA MMCX FPV Antenna to the video transmission receiver, and place it horizontally in an open, elevated location, ensuring that the antenna elements are not obstructed by walls or metal equipment.

3. Debugging Notes: When using image transmission on two devices simultaneously, keep the transmitting and receiving antennas at least 1 meter apart. Do not bend the T Type VTX Antenna to avoid damaging the RF matching structure.

T-Shape Antenna Procurement and Selection Guide

1. Confirm device frequency band

For long-distance image transmission, choose this T-shaped image transmission antenna. For 2.4GHz FPV Antenna / 5.8G high-definition digital image transmission, please consult our supplier for matching antennas. For 868MHz FPV Antenna or 915MHz FPV Antenna long-range FPV, select the corresponding frequency version.

2. Distinguish interface types

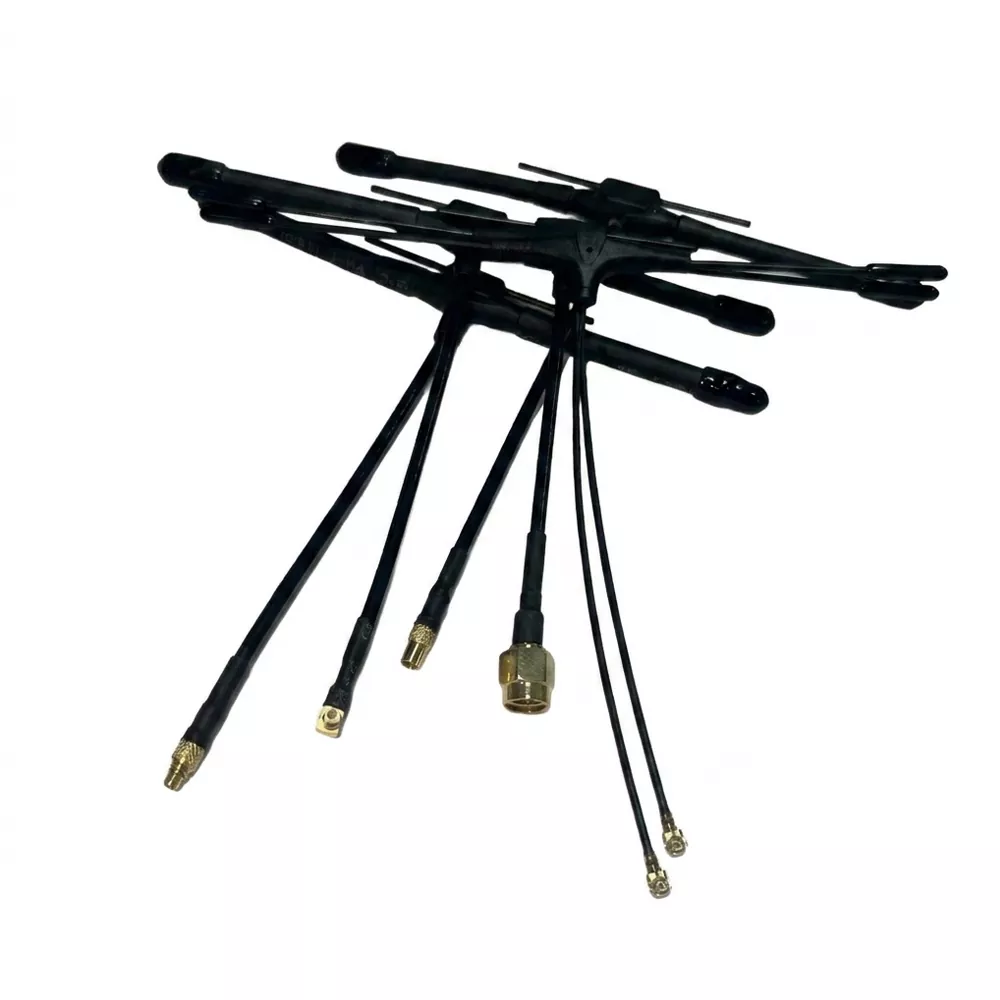

Small cross-country drones use multi-purpose MMCX connectors; high-power video transmission equipment uses SMA male connectors. Our SMA MMCX FPV Antenna options cover both connector families.

3. Use the scene to differentiate

For close-range indoor flights, a lightweight, short T Type FPV Antenna is available; for outdoor long-distance flights and industrial inspections, the standard gain Omnidirectional FPV Antenna is recommended.

4. Procurement Channel Selection

Priority sourcing directly from the factory—traders without their own production lines cannot guarantee consistency in batch parameters. Shenzhen Qianmu Communications supports sample orders, bulk orders, and OEM label customization for this VTX Antenna for FPV Drone series.

FAQ

Q1: Can this T type VTX Antenna Factory product be used for both TX and RX?

A: Yes. It is universally compatible as both an airborne transmitting and ground receiving antenna.

Q2: What is the MOQ for overseas buyers?

A: As a professional China Supplier, we require a minimum of 10 units for sample orders. Bulk orders have no MOQ limit, and we support split shipments.

Q3: What is the main difference between this and a standard rubber duck antenna?

A: It features 360° horizontal polarization. This prevents signal loss during drone flips or side flights, offers better anti-interference in obstructed environments, and is ideal for long-range FPV.

Q4: Do you support OEM/ODM customization (e.g., shape, logo)?

A: Yes. With our in-house molding workshop, we offer full ODM services. We can customize dipole/feedline lengths, connectors, and silk-print your brand logo.
