FOCUS ON WIRELESS COMMUNICATION ANTENNAS

Qianmu Communication is a professional External Antenna manufacturer in China, focusing on the design, development and production of high-quality wireless antenna solutions for IoT devices, industrial communication equipment, vehicle systems, security monitoring products and smart electronic devices.

Unlike built-in antennas that are often restricted by internal space, housing materials and device structures, external antenna solutions provide more flexible installation options and improved signal performance. By optimizing antenna structure, frequency coverage and radiation characteristics, Qianmu Communication enables wireless devices to achieve stronger connectivity, wider signal coverage and stable data transmission even in challenging environments.

Founded in 2009, Qianmu Communication has accumulated extensive experience in antenna R&D and manufacturing. The company provides customized solutions according to specific application requirements, covering antenna design, frequency tuning, connector configuration, performance evaluation and large-scale production support. With professional engineering capabilities and reliable manufacturing processes, Qianmu Communication delivers customized external antenna solutions for customers worldwide.

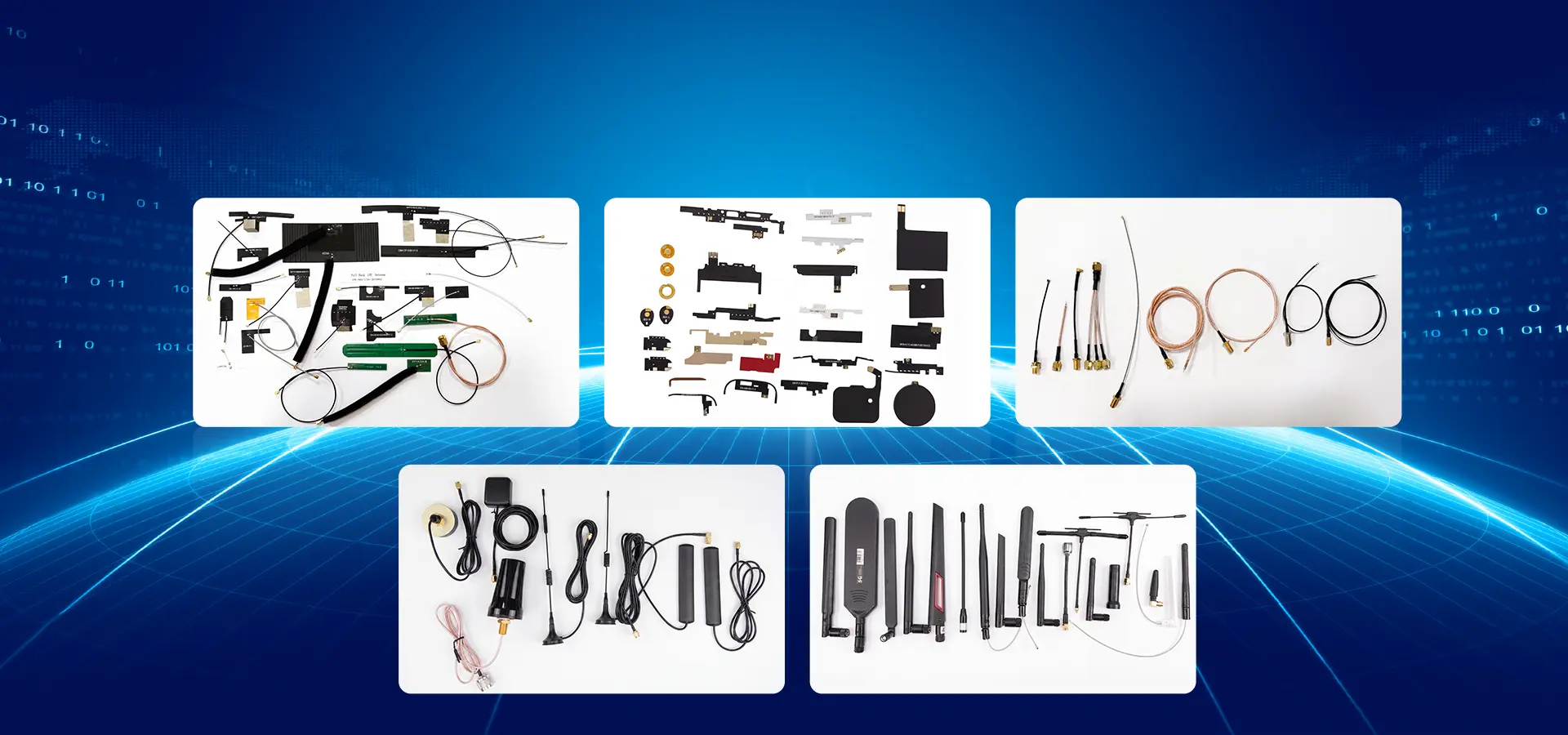

Our external antenna product range includes:

· Omni Antenna

· Directional Antenna

· Structure Mount Antenna

· Magnetic Mount Antenna

· Suction Cup Antenna

· Rod Antenna

· Customized External RF Antenna

These products are widely used in wireless communication terminals, industrial equipment, vehicle communication systems, IoT networks and outdoor monitoring applications.

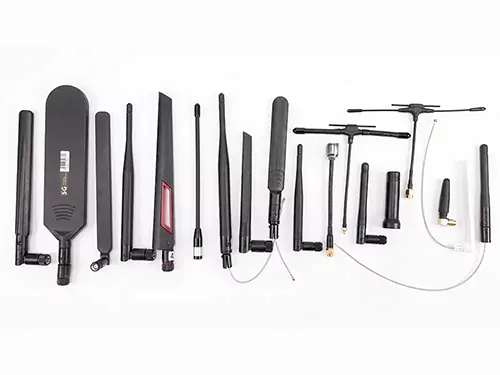

What Is an External Antenna?

An External Antenna is a wireless antenna installed outside the main device enclosure or connected through an external interface. It receives and transmits radio frequency signals through a dedicated antenna structure, allowing engineers to optimize signal performance without being restricted by the internal layout of the equipment.

Commonly used when devices require:

· Longer communication distance

· Better signal stability

· Flexible installation position

· Higher radiation efficiency

· Improved wireless coverage

For example, industrial gateways installed inside metal cabinets, outdoor monitoring equipment, vehicle communication terminals and IoT devices often require External Antenna designs because internal antennas may experience signal attenuation caused by enclosure materials, installation position or electromagnetic interference.

Qianmu Communication designs customized antenna solutions according to actual application conditions, including operating frequency, communication protocol, installation environment and mechanical requirements.

External Antenna Types

Omni Antenna

Omni Antenna is designed to provide 360-degree horizontal signal coverage, making it suitable for applications where wireless devices need to communicate with multiple directions.

Unlike directional antennas that focus energy toward a specific area, Omni Antenna distributes signals around the antenna axis, providing stable coverage for mobile terminals and distributed wireless networks.

Features of Omni Antenna

· 360° horizontal radiation pattern

· Wide signal coverage area

· Easy installation and deployment

· Suitable for multi-direction communication

· Compatible with multiple wireless protocols

Typical Applications

Omni Antenna is widely applied in:

Directional Antenna

Directional Antenna focuses RF energy toward a specific direction, improving signal gain and extending communication distance.

It is mainly used in applications where wireless communication needs to overcome long-distance transmission challenges or reduce interference from surrounding environments.

Qianmu Communication provides customized directional antenna solutions according to:

· Communication distance

· Frequency band

· Installation angle

· Gain requirement

· Environmental conditions

Advantages of Directional Antenna

· Higher antenna gain

· Longer transmission distance

· Reduced signal interference

· Improved point-to-point communication efficiency

Typical Applications

Structure Mount Antenna

Structure Mount Antenna is designed for fixed installation on equipment structures, panels or mechanical housings. This type of antenna provides excellent mechanical stability and is widely used in industrial and commercial equipment.

Compared with temporary installation solutions, Structure Mount Antenna offers better reliability for long-term operation.

Features

· Stable mechanical installation

· Suitable for equipment integration

· Supports customized mounting structures

· Good vibration resistance

· Suitable for industrial environments

Applications

Structure Mount Antenna is commonly used in:

· Industrial control equipment

· Smart transportation systems

· Communication cabinets

· Automated production equipment

· Outdoor wireless terminals

Technical Specifications

To meet different wireless communication requirements, Qianmu Communication develops external antenna products based on frequency range, communication protocol, installation environment and mechanical requirements.

During antenna development, engineers evaluate key performance factors including operating frequency, gain, impedance matching, VSWR, radiation efficiency and environmental adaptability to ensure reliable wireless performance in practical applications.

Customization Capability

Different wireless devices have different installation structures, operating environments and communication requirements. A standard antenna may not always achieve the expected signal performance. Therefore, Qianmu Communication provides customized external antenna development services based on customer application scenarios.

From initial design evaluation to final mass production, our engineering team focuses on antenna performance optimization and practical application compatibility.

Customized Services Include:

Frequency Band Optimization

Different wireless communication systems require different operating frequencies.

Qianmu Communication supports antenna development for:

· 4G LTE communication

· 5G Sub-6GHz communication

· WiFi 2.4GHz / 5GHz

· Bluetooth communication

· GPS / GNSS positioning

· LoRa wireless transmission

· NB-IoT applications

· Industrial RF communication

Engineers optimize antenna structure according to frequency requirements to improve signal stability and communication efficiency.

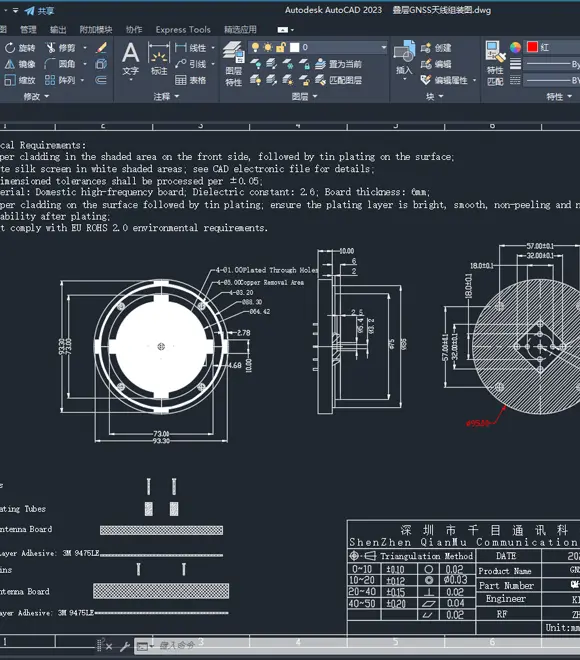

Structural Design Customization

External antennas need to match different equipment installation conditions.

Customization options include:

· Antenna size adjustment

· Cable length modification

· Connector replacement

· Mounting method design

· Housing material selection

· Waterproof structure optimization

For example, outdoor monitoring equipment may require waterproof external antenna structures, while industrial devices may require vibration-resistant mounting solutions.

RF Performance Optimization

Antenna performance is affected by equipment structure, surrounding materials and installation location.

Qianmu Communication provides RF optimization services including:

· Antenna tuning

· Impedance matching

· Frequency adjustment

· Gain optimization

· Radiation performance improvement

Through simulation analysis and actual testing, engineers optimize antenna performance before mass production.

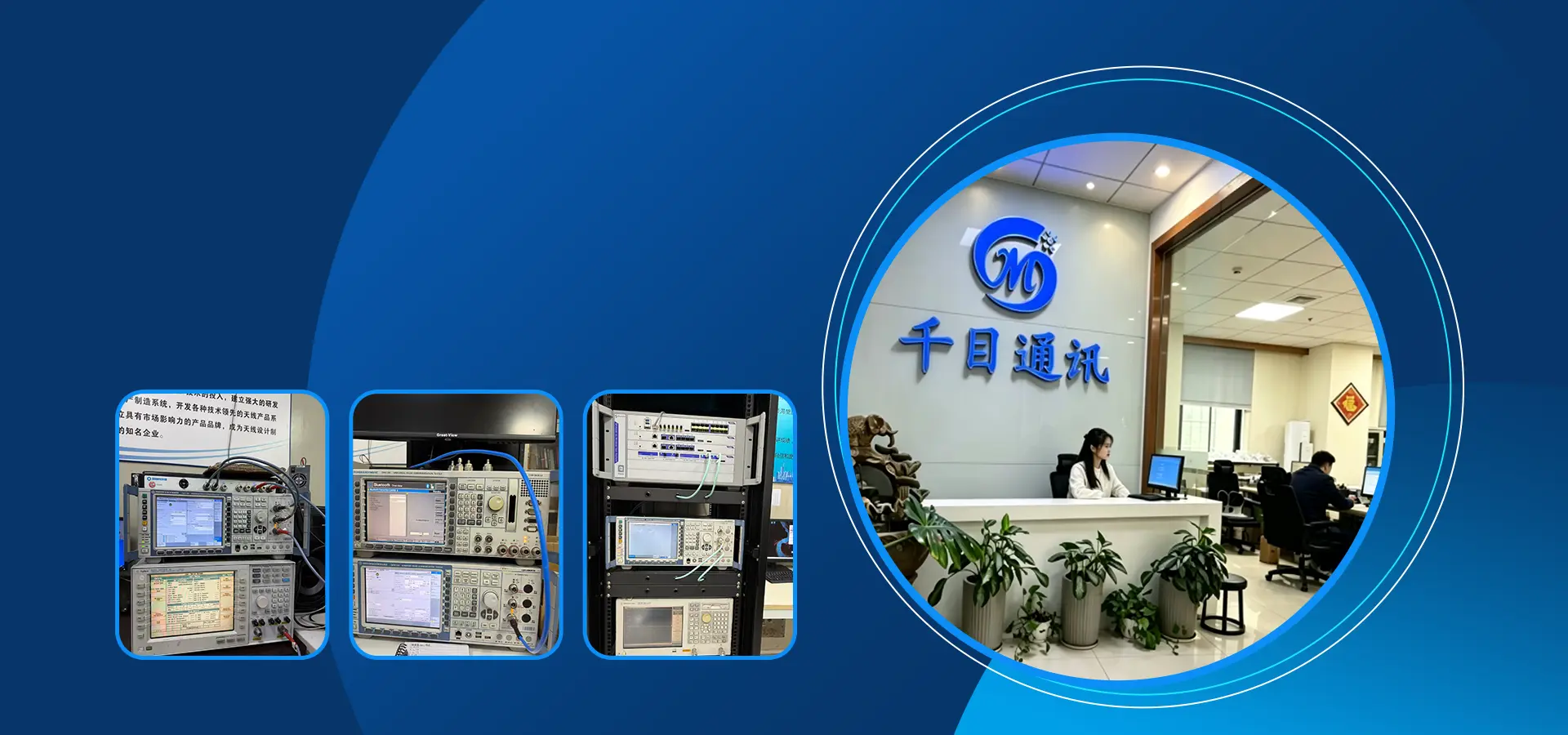

Professional Manufacturing and Testing Process

As an experienced antenna factory in China, Qianmu Communication follows a standardized manufacturing process to ensure product consistency and reliability.

The production process includes:

1. Material Inspection

Before production, incoming materials are inspected, including:

· RF cables

· Connectors

· Antenna elements

· Plastic housings

· Metal components

Material quality directly affects antenna durability and signal performance.

2. Antenna Assembly

The production team performs:

· Antenna component assembly

· Cable welding

· Connector installation

· Structural fixing

· Surface processing

Each process follows production standards to reduce performance variation between batches.

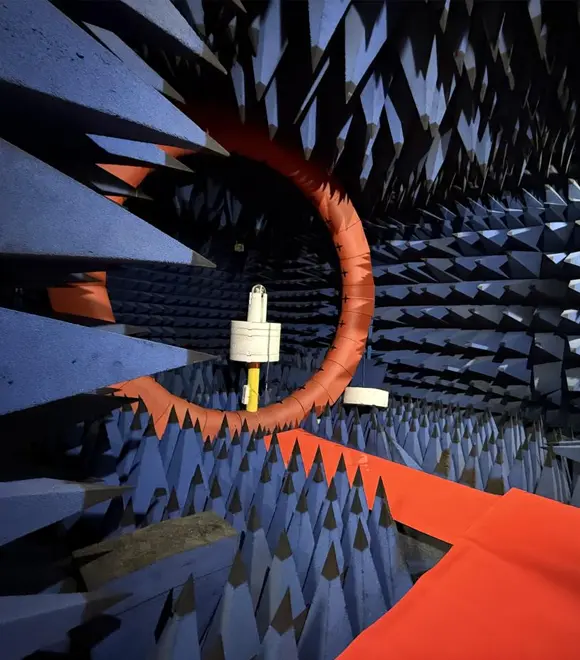

3. RF Performance Testing

Each antenna product is tested according to customer requirements.

Testing items include:

Professional testing equipment such as vector network analyzers and signal testing systems are used during product verification.

Applications

External antennas are widely used where stable wireless communication and flexible installation are required.

Industrial Communication

Industrial environments often include metal equipment, electromagnetic interference and complex installation conditions.

They help industrial devices achieve:

· More stable wireless transmission

· Extended communication distance

· Flexible equipment installation

Applications include:

· Industrial gateways

· Wireless data collectors

· Automation equipment

· Factory monitoring systems

· Industrial IoT terminals

IoT Devices

IoT devices require long-term and reliable wireless connectivity.

External antennas improve communication performance for:

· Smart meters

· Environmental monitoring systems

· Tracking devices

· Smart access control

· Remote sensors

By selecting suitable antenna gain and installation methods, devices can maintain stable communication in indoor, outdoor and remote environments.

Vehicle Communication Systems

Vehicle environments have special requirements for antenna reliability due to vibration, temperature changes and limited installation space.

Used for:

· Vehicle tracking systems

· Fleet management equipment

· Vehicle WiFi systems

· Navigation terminals

· Automotive communication modules

Qianmu Communication provides antenna solutions with suitable mechanical structures and environmental adaptability for vehicle applications.

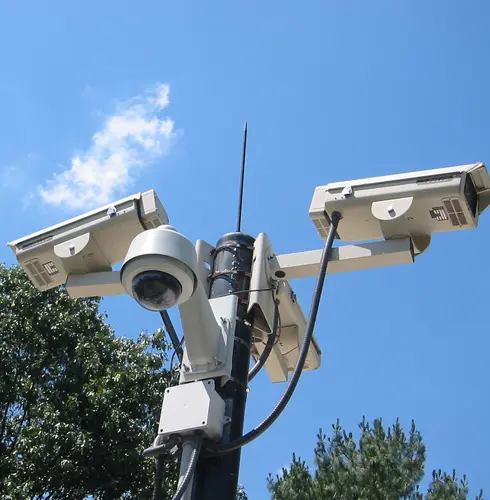

Security Monitoring Systems

Outdoor security devices require antennas that can maintain signal transmission under weather changes.

External antennas support:

· Wireless cameras

· Outdoor monitoring equipment

· Wireless bridges

· Remote video transmission systems

Solutions can be customized with waterproof structures, extended cables and suitable mounting methods.

Why Choose Qianmu Communication as Your External Antenna Supplier?

Experienced Antenna Manufacturer

Established in 2009, Qianmu Communication focuses on antenna R&D and manufacturing, with accumulated experience in wireless terminal antenna design, RF optimization and customized production.

The company has independent R&D capability and manufacturing facilities, supporting both standard antenna supply and customized antenna projects.

Strong RF Engineering Capability

The engineering team has experience in:

· Antenna electromagnetic simulation

· RF matching optimization

· Structural design

· Performance debugging

· Customized antenna development

This allows Qianmu Communication to provide solutions based on actual equipment requirements instead of only supplying standard products.

Quality Control System

Quality control runs through the entire production process.

Including:

· Incoming material inspection

· Production process inspection

· Semi-finished product testing

· Finished product performance verification

The factory has obtained ISO9001 quality management system certification, and products comply with international requirements including CE, RoHS and FCC standards.

Flexible OEM and ODM Support

Qianmu Communication supports:

· Prototype development

· Small batch customization

· Mass production

· OEM projects

· ODM cooperation

Whether customers need antenna replacement for existing equipment or new product development, the engineering team can provide technical support from design evaluation to production delivery.

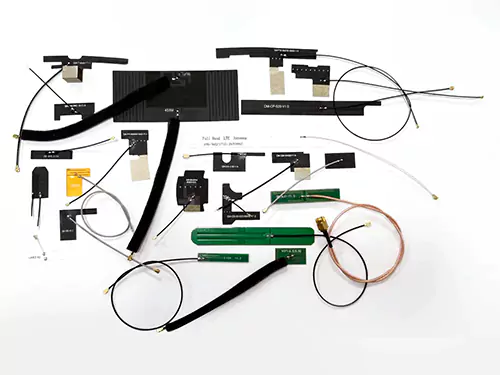

Modern wireless devices are becoming smaller, thinner and more intelligent, creating higher requirements for antenna design inside limited product spaces. Internal Antenna solutions are developed to integrate directly into electronic devices, providing stable wireless signal transmission while maintaining compact product structures and clean appearance.

Qianmu Communication provides customized internal antenna solutions for consumer electronics, IoT terminals, smart devices, industrial equipment and communication products. With professional RF design capability and manufacturing experience, Qianmu helps customers optimize antenna performance according to device structure, frequency requirements and application environments.

Compared with external antenna solutions that require additional installation space, internal designs allow manufacturers to achieve better product integration, simplified assembly and improved appearance. Through RF simulation, impedance matching and performance testing, Qianmu develops antenna solutions that balance signal quality, mechanical design and production efficiency.

Compact Antenna Design for Space-Limited Wireless Devices

For many modern electronic products, available internal space is extremely limited. The antenna must work efficiently while sharing space with batteries, circuit boards, displays and other components.

Poor antenna integration may lead to:

· Reduced signal strength

· Unstable wireless connection

· Frequency deviation

· Difficult product assembly

A properly designed internal antenna can overcome these challenges by optimizing the antenna layout according to the device structure.

Qianmu engineers consider multiple factors during development:

· PCB layout conditions

· Housing material impact

· Component interference

· Required communication bands

· Installation position

The result is a reliable wireless solution that fits seamlessly into the final product design.

Main Advantages

Space-Saving Integration

Internal antennas are widely used in products where appearance and size are important.

Typical applications include:

· Smartphones

· Tablets

· Wearable devices

· Smart home products

· Portable terminals

By embedding the antenna inside the device, manufacturers can maintain a compact design without adding external components.

Stable Wireless Performance

Miniaturized devices often require antennas to support multiple communication functions, including:

· WiFi

· Bluetooth

· GPS/GNSS

· 4G LTE

· 5G Sub-6GHz

· NFC

Qianmu optimizes antenna structure and RF parameters to improve:

· Signal stability

· Radiation efficiency

· Frequency matching

· Communication reliability

Customized Design for Different Products

Every wireless device has different structural limitations.

Qianmu provides customized development based on:

· Product dimensions

· Communication module

· Operating frequency

· Installation position

· Material requirements

This allows the antenna to become an integrated part of the device instead of a separate component.

Product Categories

Qianmu provides different internal antenna structures according to application requirements.

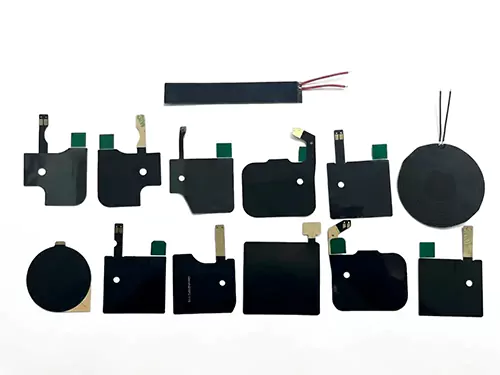

FPC Antenna

FPC Antenna uses flexible printed circuit technology, allowing the antenna to be installed in curved or compact spaces.

It is commonly used in:

· Wearable devices

· Smart terminals

· Portable electronics

· IoT equipment

Key advantages include:

· Flexible installation

· Lightweight structure

· Easy integration

· Suitable for complex internal layouts

For products with limited space or irregular housing structures, FPC solutions provide excellent design flexibility.

PCB Antenna

PCB Antenna is directly integrated into the printed circuit board, reducing additional antenna components and simplifying product assembly.

Applications include:

· Wireless modules

· Smart home devices

· IoT controllers

· Embedded communication equipment

Advantages include:

· Lower assembly complexity

· Compact design

· Cost-effective mass production

· Good consistency in large-volume manufacturing

Qianmu engineers optimize PCB antenna layout according to the circuit design and RF requirements to achieve stable performance.

Technical Specifications

Qianmu develops internal antenna solutions according to different wireless standards and device requirements.

Application Areas

Consumer Electronics

Small electronic products require antennas that provide reliable wireless connectivity without affecting product appearance.

Applications include:

· Tablets

· Smart watches

· Wireless earbuds

· Portable devices

Internal integration helps manufacturers achieve compact designs while maintaining stable wireless functions.

Internet of Things (IoT)

IoT devices often require long-term operation with limited maintenance.

Applications include:

· Smart sensors

· Smart meters

· Tracking devices

· Environmental monitoring equipment

Customized internal antenna designs help improve communication reliability in distributed IoT networks.

Smart Home Devices

Smart home products rely on stable wireless communication between multiple devices.

Applications include:

· Smart locks

· Smart speakers

· Lighting controllers

· Home automation systems

Internal antenna optimization helps reduce signal loss caused by compact housing structures.

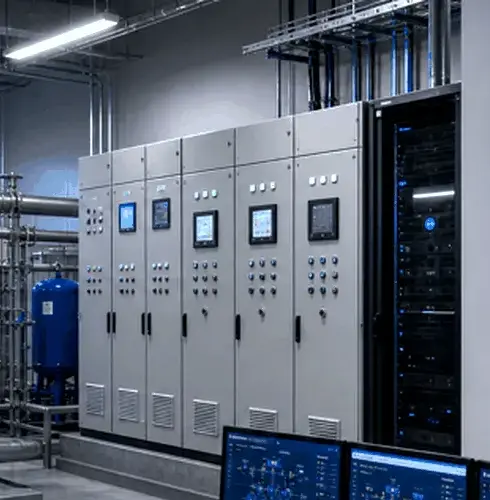

Industrial Equipment

Industrial devices require antennas that can operate reliably in complex environments.

Applications include:

· Industrial controllers

· Wireless gateways

· Data collection terminals

Qianmu considers electromagnetic interference, equipment structure and operating conditions during antenna development.

How Qianmu Develops Customized Internal Antenna Solutions

A successful internal antenna requires cooperation between RF design and product structure.

Qianmu provides:

RF Simulation and Design

Engineers analyze:

· Antenna placement

· Radiation characteristics

· Frequency performance

· Structural influence

Prototype Verification

Sample antennas are tested and adjusted according to actual device conditions.

Testing includes:

· Frequency measurement

· Gain testing

· VSWR testing

· Radiation performance evaluation

Mass Production Support

After verification, Qianmu provides stable production processes to ensure consistency between samples and bulk orders.

Why Choose Qianmu as Your Internal Antenna Supplier?

Experienced RF Development Team

Since 2009, Qianmu Communication has focused on antenna R&D and manufacturing, supporting customized projects across different wireless industries.

The engineering team has experience in:

· Antenna matching optimization

· Structural adaptation

· Signal improvement

· Customized product development

Complete Manufacturing Process

Qianmu controls the entire production process, including:

· Material inspection

· Antenna forming

· Assembly

· RF debugging

· Performance testing

· Final inspection

This helps ensure consistent quality for global customers.

Customized Solutions for Global Markets

As an experienced Internal Antenna manufacturer and supplier in China, Qianmu supports OEM and customized antenna projects for customers requiring specific frequency bands, structures and application requirements.

FAQ

1. What is an Internal Antenna?

It is a wireless antenna installed inside electronic equipment to provide signal transmission while saving external installation space.

2. What products commonly use internal antennas?

They are widely used in smartphones, wearable devices, IoT products, smart home equipment, industrial terminals and wireless communication devices.

3. What is the difference between FPC Antenna and PCB Antenna?

FPC solutions provide greater flexibility for irregular spaces, while PCB solutions are integrated directly into circuit boards and are suitable for high-volume electronic products.

4. Can Qianmu customize antenna dimensions and frequency?

Yes. Qianmu can customize antenna size, frequency range, connector type, cable configuration and installation method according to product requirements.

5. How do you improve antenna performance inside a device?

Engineers optimize antenna position, RF matching, material selection and simulation results to reduce interference and improve signal efficiency.

6. Does Qianmu provide samples before mass production?

Yes. Prototype samples and performance verification are available before bulk manufacturing.

7. What information is needed for antenna development?

Customers can provide:

· Product structure

· Wireless module information

· Frequency requirements

· Installation space

· Application environment

This allows engineers to recommend a suitable antenna solution.

Reliable wireless communication starts with stable antenna performance. For many electronic devices and communication systems, a properly matched antenna is essential to achieve consistent signal transmission, accurate data exchange and long-term operation. Standard Antenna solutions are designed for applications that require proven structures, stable performance and efficient deployment.

Qianmu Communication is a professional Standard Antenna manufacturer and supplier in China, specializing in the development and production of communication antennas for wireless terminals, IoT devices, industrial equipment, smart systems and consumer electronics. Based on years of RF engineering experience and standardized manufacturing capability, Qianmu provides reliable antenna products that meet different frequency requirements and application environments.

Unlike highly customized antenna solutions developed for specific structures, standard models focus on fast deployment, stable supply and proven performance. They are widely selected by manufacturers who need efficient product integration, shorter development cycles and consistent quality for large-scale applications.

Stable Antenna Solutions for Diverse Wireless Applications

Wireless devices operate in different environments, from indoor smart devices to outdoor communication equipment. Each application requires suitable antenna characteristics, including frequency coverage, signal strength, installation method and environmental adaptability.

Qianmu standard antenna solutions are developed according to practical application requirements, helping customers achieve:

· Reliable wireless signal transmission

· Simplified product design

· Faster project implementation

· Stable batch production

· Reduced development cost

Through professional RF testing and manufacturing control, each antenna is optimized to provide consistent performance in real-world applications.

Main Categories

Qianmu provides a wide range of antenna products covering cellular communication, short-range wireless connection, positioning systems and broadcast reception applications.

Cellular Network Antenna

Cellular communication requires antennas with stable signal performance across different network environments.

Qianmu provides antenna solutions for:

· 2G / 3G / 4G LTE communication

· 5G Sub-6GHz applications

· Industrial wireless terminals

· Vehicle communication equipment

· Data transmission devices

These antennas are commonly used in:

· Industrial gateways

· Smart meters

· Remote monitoring equipment

· Vehicle terminals

· Wireless routers

By optimizing frequency coverage, impedance matching and radiation performance, cellular communication antennas help maintain reliable connectivity in different signal conditions.

IoT Short-range Antenna

Short-distance wireless communication plays an important role in smart devices and connected systems.

Qianmu develops solutions for:

· WiFi communication

· Bluetooth connectivity

· Zigbee applications

· 2.4GHz wireless systems

Typical applications include:

· Smart home products

· Wireless sensors

· Smart controllers

· Consumer electronic devices

These antenna solutions support stable device-to-device communication while maintaining compact size and easy installation.

Positioning Antenna

Accurate positioning requires antennas with excellent signal reception capability.

Qianmu provides positioning antenna solutions for:

· GPS

· GNSS

· BeiDou

· Multi-system positioning applications

Common applications include:

· Vehicle tracking systems

· Navigation equipment

· Asset management terminals

· Outdoor monitoring devices

Through optimized receiving performance and frequency matching, positioning antennas help improve location accuracy and communication reliability.

TV Antenna

TV signal reception requires antennas with suitable frequency response and stable receiving capability.

Qianmu provides antenna solutions for:

· Digital TV equipment

· Portable display devices

· Vehicle entertainment systems

· Multimedia terminals

These products help improve signal reception quality while adapting to different installation environments.

Product Specifications

Qianmu provides different antenna structures according to application requirements.

Application Scenarios

Industrial Communication Equipment

Industrial systems require antennas that can operate continuously under demanding conditions.

Applications include:

· Industrial gateways

· Automation equipment

· Remote monitoring systems

· Wireless data terminals

Qianmu considers electromagnetic interference, installation environment and communication distance to provide suitable antenna solutions.

Smart IoT Systems

IoT networks depend on stable wireless connections between large numbers of devices.

Standard antenna products are widely used in:

· Smart meters

· Environmental monitoring systems

· Smart access control

· Sensor networks

Reliable signal transmission helps improve system efficiency and reduce communication interruptions.

Vehicle and Transportation Systems

Vehicle communication equipment requires antennas with stable performance under vibration and temperature changes.

Applications include:

· Fleet management systems

· Vehicle trackers

· Navigation devices

· Intelligent transportation terminals

Qianmu provides antenna solutions designed for long-term vehicle operation.

Consumer Electronics

Consumer products require antennas that combine compact design with reliable connectivity.

Applications include:

· Smart speakers

· Wireless devices

· Portable electronics

· Multimedia products

Standardized antenna designs help manufacturers achieve efficient production and consistent product quality.

Manufacturing and Quality Control Capability

Qianmu Communication has focused on antenna R&D and manufacturing since 2009, providing wireless antenna solutions for customers worldwide.

The company maintains professional production and testing procedures, including:

· Raw material inspection

· Antenna assembly

· RF debugging

· Performance testing

· Finished product inspection

Each antenna is evaluated according to key performance indicators such as:

· Frequency response

· Gain performance

· VSWR

· Signal stability

This ensures consistent quality for different applications.

Why Choose Qianmu as Your Antenna Supplier?

Professional RF Engineering Support

Qianmu engineers have extensive experience in:

· Frequency optimization

· Antenna matching

· Application adaptation

· Wireless performance improvement

Technical support is provided from product selection through final production.

Direct Factory Manufacturing

As an experienced antenna factory in China, Qianmu supports global customers with:

· Standard product supply

· OEM customization

· Sample testing

· Bulk production

Direct factory cooperation helps improve communication efficiency and supply stability.

Flexible Solutions for Global Markets

Qianmu products are used in communication, IoT, industrial, vehicle and consumer electronics applications.

With professional manufacturing capability and international quality standards, Qianmu supports customers requiring dependable wireless connectivity solutions.

FAQ

1. What applications use standard antenna products?

They are widely used in cellular communication equipment, IoT devices, positioning terminals, smart home products, vehicles and consumer electronics.

2. How do I choose the right antenna model?

Selection depends on operating frequency, communication protocol, installation method, required gain and application environment.

3. Can Qianmu provide customized specifications?

Yes. Qianmu can adjust frequency range, cable length, connector type, size and performance parameters according to customer requirements.

4. What is the difference between standard and customized antenna solutions?

Standard models provide faster deployment and proven performance, while customized solutions are developed for special structures or unique application requirements.

5. Can these antennas support multiple communication systems?

Yes. Different models can support cellular networks, short-range wireless communication, positioning systems and other RF applications.

6. Does Qianmu provide samples before bulk orders?

Yes. Sample testing and technical verification are available before mass production.

7. What quality tests are performed before delivery?

Products undergo RF performance testing, frequency verification, VSWR testing and appearance inspection to ensure stable quality.
