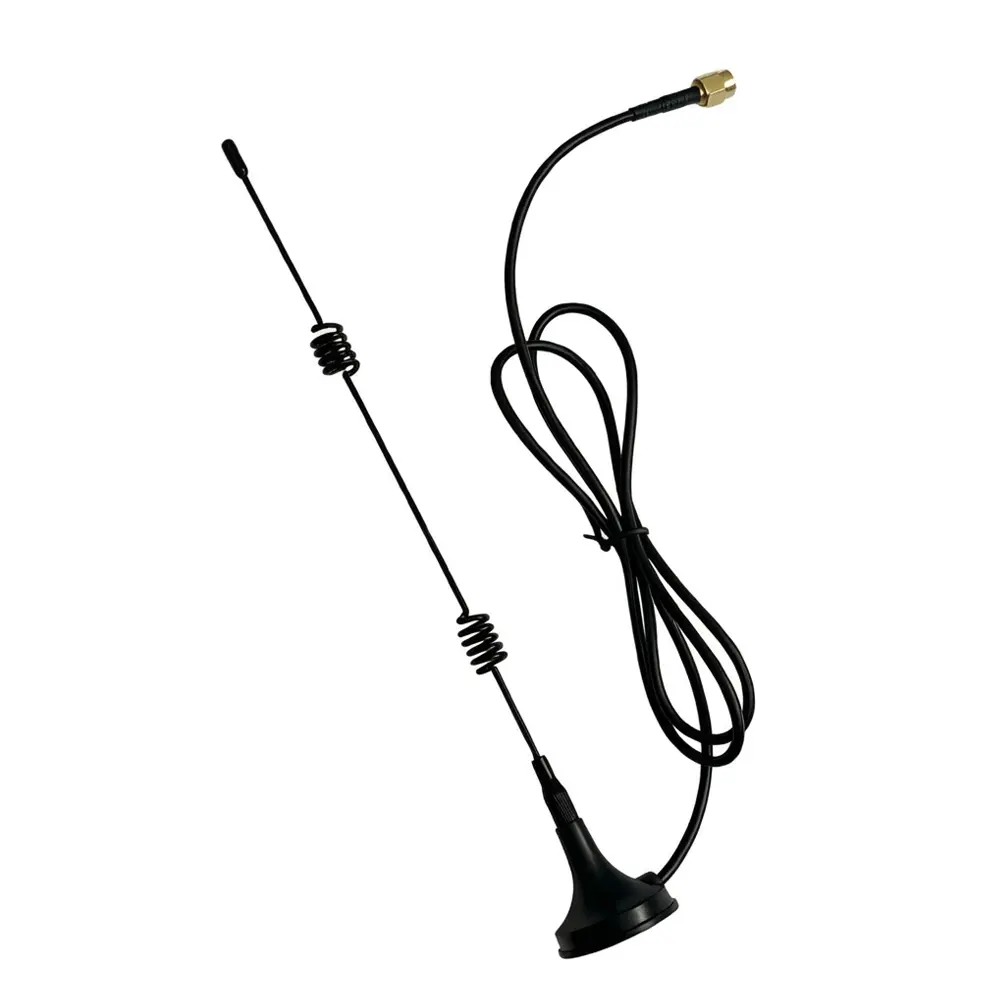

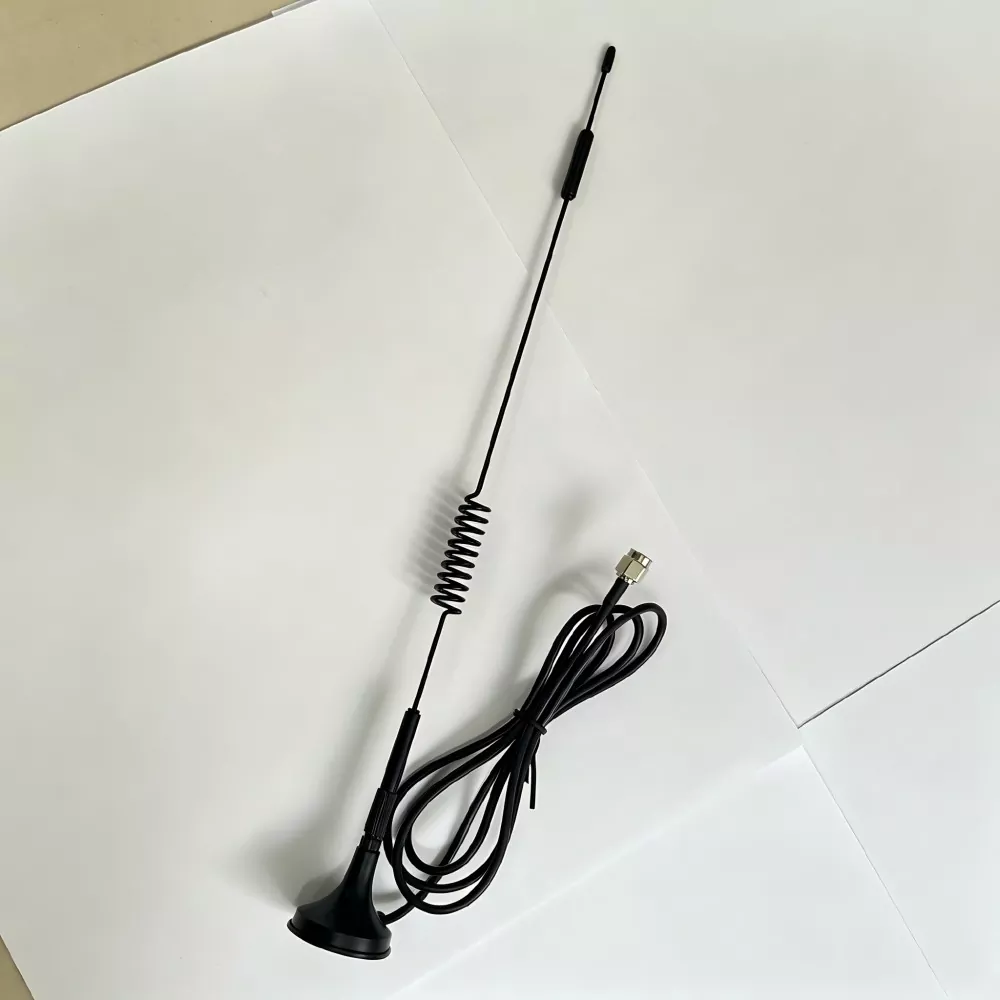

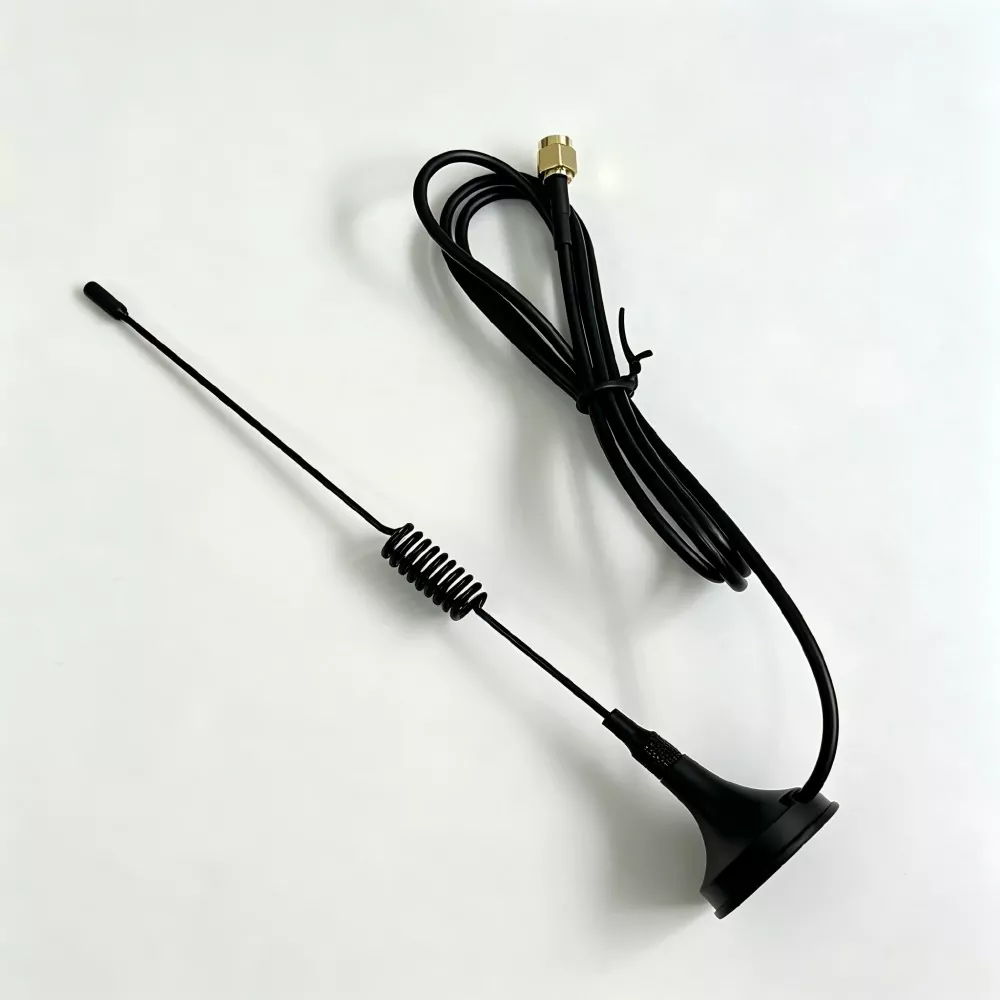

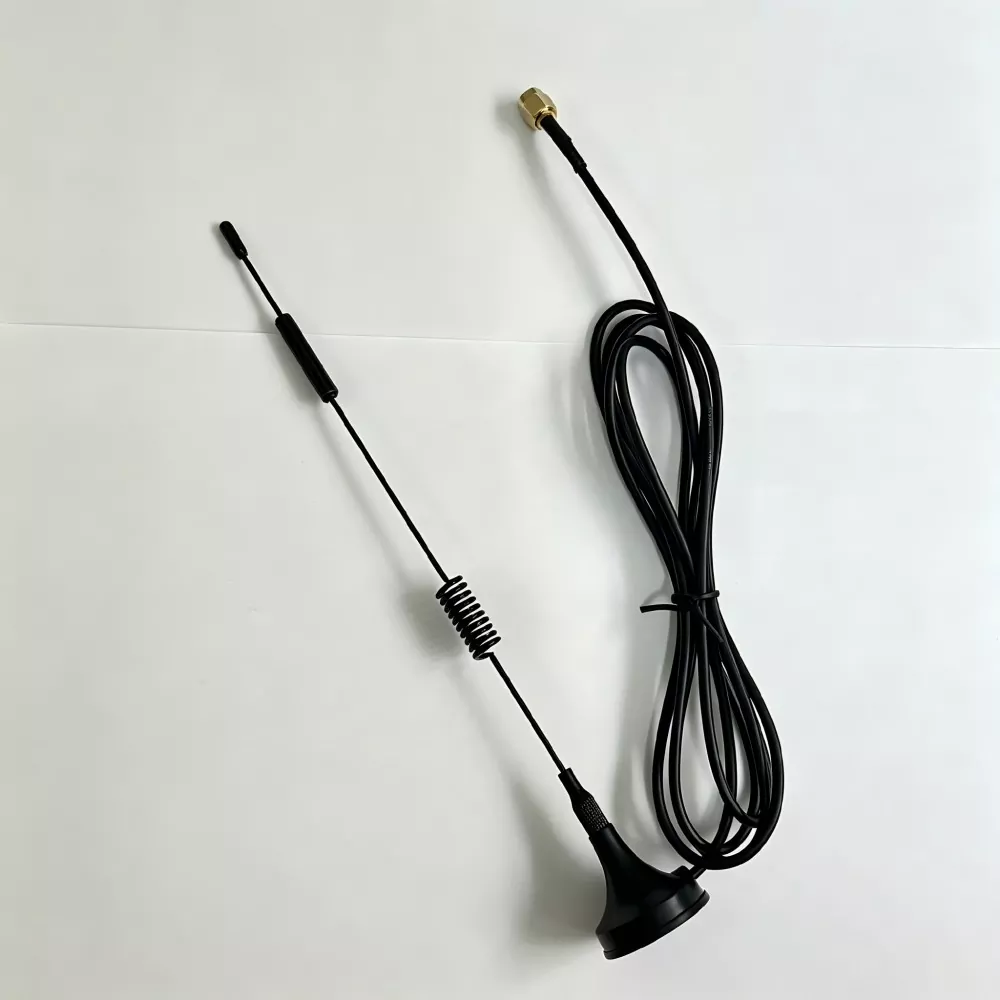

Magnetic Base Antenna
Qianmu Magnetic Base Antenna is manufactured by Shenzhen Qianmu Communication Technology Co., Ltd., a professional RF antenna manufacturer in China with experience in external antenna design and production. Featuring wide frequency coverage from 600MHz to 6000MHz, high gain performance, RG174 coaxial cable and customizable connectors, this antenna is designed for 4G/5G communication, IoT devices, GPS tracking, WiFi systems and vehicle applications. OEM/ODM services are available for global distributors, system integrators and equipment manufacturers.
Magnetic Base Antenna is an external wireless communication antenna featuring a magnetic mounting base for quick installation and flexible positioning. It provides stable signal transmission for IoT devices, GPS trackers, 4G/5G terminals, WiFi equipment, vehicle communication systems and industrial applications.
About Qianmu Magnetic Base Antenna Manufacturing
Shenzhen Qianmu Communication Technology Co., Ltd. is a professional antenna manufacturer specializing in RF antenna design, development and mass production. Since 2009, Qianmu has focused on wireless communication solutions covering 2G/3G/4G/5G, GPS, WiFi, Bluetooth, IoT and industrial communication applications.
For magnetic base antennas, Qianmu provides complete manufacturing services including antenna design, frequency tuning, prototype verification, cable assembly, connector customization and volume production. Our engineering team works with customers to optimize antenna performance according to different devices and application environments.
What Makes This Antenna Different?
The suction cup antenna (also called a magnetic base antenna) is a versatile external antenna designed for quick, tool-free mounting on any flat or curved surface — glass, dashboards, metal panels, or plastic enclosures. Unlike fixed-mount antennas that require drilling, our suction cup design allows repositioning in seconds.
The reinforced vacuum base sustains a holding force of ≥ 45 N, ensuring it won't dislodge even on vibrating vehicle surfaces or in harsh outdoor environments.

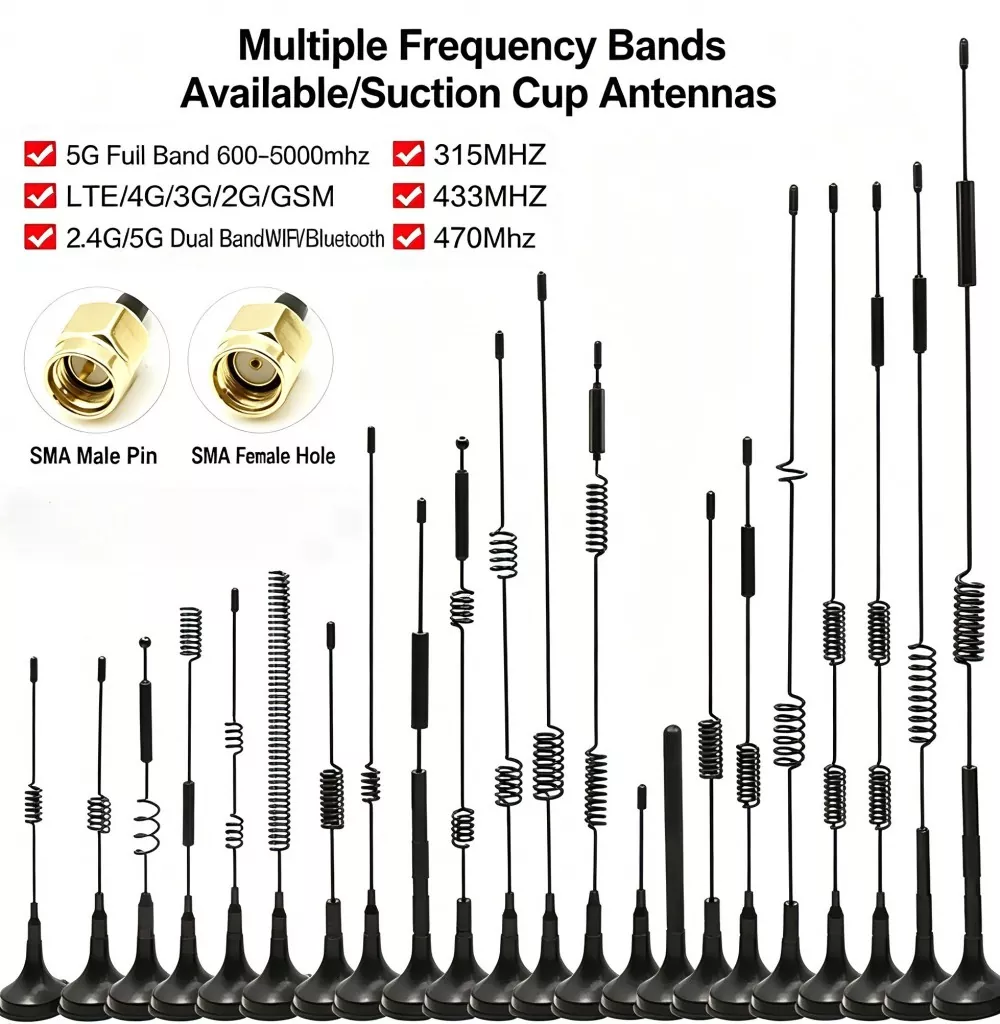

We stock single-band (GPS L1, GSM 900/1800, LTE 700–2700 MHz) and multi-band variants. Custom frequency ranges, cable lengths (0.5 m – 10 m), and connectors (SMA, TNC, BNC, N-type, FAKRA) are available from our Factory floor within 10–15 business days.
Application Bands: GSM / LTE | Wi-Fi 2.4 / 5 GHz | IoT / NB-IoT | 4G / 5G
Manufacturing Capability
Qianmu operates professional antenna production facilities in Shenzhen, China, supporting customized antenna projects from prototype development to mass production.
Our manufacturing capabilities include:
- RF antenna design and tuning
- Injection molding and component assembly
- Cable and connector assembly
- Antenna performance testing
- OEM and ODM production
Specifications
|
Parameter |
Value |
|
Operating Frequency |
600-6000MHz/600-2700MHz/2.4G/5G/5.8G/433/470/315MHz |
|
Impedance |
50Ω |
|
Cable Length |
1-50 Meters (Customizable) |
|
Antenna Gain |
4-18dBi |
|
Base |
Strong Magnetic Base |
|
Antenna Height |
9-36CM |
|
Standing Wave Ratio |
SWR≤1.5 |
|
Polarization |
Vertical |
|
Cable Model |
RG174 Pure Copper Cable |
|
Connector Model |
SMA Female Inner Hole/SMA Female Inner Pin |
|
Application Range |
Devices for 433/470/315/2.4G/5G/Dual Band/WiFi/Bluetooth/LTE/4G/3G/2G/GSM/GPRS/NB-IoT/800MHz/868MHz/900MHz/915MHz, etc. |
Product Details
Strong magnetic base：
Excellent corrosion resistance when exposed to harsh environments, made of environmentally friendly materials, ensuring safe use. Equipped with a strong magnetic attraction at the bottom for secure connection and resistance to falling off (3M stickers can be added to the bottom as per requirements and needs)
Copper spring rod：
The spiral spring rod is crafted from high-purity copper, whose conductivity far surpasses that of iron and alloy materials. This significantly reduces power loss during signal transmission, ensuring more stable signal reception and transmission for suction magnetic base antenna. It offers a comprehensive upgrade in performance for long-distance communication, in-vehicle signals, and IoT device signals. The surface undergoes blackening and rust-proof treatment, making it less prone to rust and oxidation in outdoor and in-vehicle humid environments, thereby extending its service life.
SMA male：
It is corrosion-resistant, has strong conductivity and good oxidation resistance, and features a uniform standard for interface diameter. It can pass the 48-hour salt spray test.

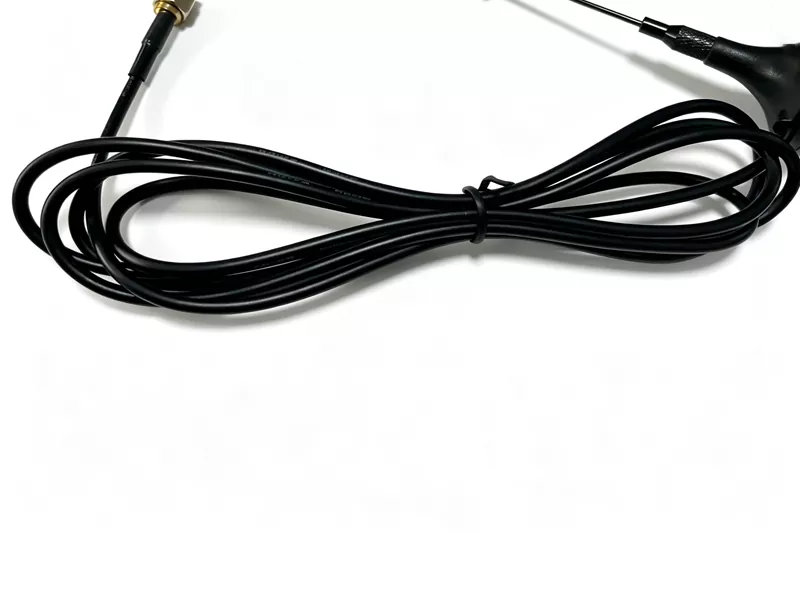

Coaxial wire：
RG174 cable outer diameter: 2.8mm, insulation outer diameter: 1.5mm, pure copper wire coaxial cable with high-density transmission shielding layer, ensuring faster and more stable signal transmission.
Why Choose Our Magnetic Base Antenna?
1. Ultra-Wide Compatibility
One antenna supports multiple wireless standards including 2G/3G/4G/5G, WiFi, Bluetooth, and IoT frequencies.
2. High Gain & Stable Signal
With up to 18dBi gain and low SWR ≤1.5, the antenna significantly improves weak signal environments and extends communication range.
3. Tool-Free Fast Installation
Magnetic mounting design enables installation in seconds without drilling or technical tools.
4. Industrial-Grade Durability
Built with RG174 copper cable and corrosion-resistant materials for long-term indoor and outdoor use.
5. Full Customization Service
We support OEM/ODM customization:
· Frequency tuning
· Cable length (1–50m)
· Connector type
· Antenna size & design
· Packaging & branding
6. Factory Direct Manufacturing
As a professional magnetic base antenna manufacturer in China, we provide stable quality control, competitive pricing, and bulk production capability for global buyers.
Antenna Testing & Quality Control
To ensure consistent RF performance, every magnetic base antenna undergoes quality inspection before shipment.
- VSWR performance testing
- Frequency verification
- Gain measurement
- Impedance matching analysis
- Cable and connector inspection
- Environmental reliability testing
These quality control procedures help ensure stable signal transmission in automotive, industrial and outdoor wireless applications.
Application Scenarios
The Magnetic Mount Antenna is widely used in both commercial and industrial wireless systems:
4G LTE / 5G routers and gateways
Vehicle-mounted communication systems (cars, trucks, fleet tracking)
WiFi signal extension (2.4GHz / 5GHz / 5.8GHz)
GPS tracking and positioning devices
Industrial IoT sensor networks
Smart agriculture monitoring systems
Security surveillance systems
NB-IoT smart city infrastructure
Remote telemetry and automation systems
Magnetic Base Antenna vs Fixed Mount Antenna
| Feature | Magnetic Base Antenna | Fixed Mount Antenna |
| Installation | Tool-free installation | Requires mounting process |
| Flexibility | Easy repositioning | Permanent installation |
| Vehicle Applications | Excellent | Limited |
FAQ
Q1: Are you a magnetic base antenna manufacturer or trading company?
Qianmu Communication is a professional RF antenna manufacturer based in Shenzhen, China, providing antenna design, customization and mass production services.
Q2: Can you customize frequency bands and connectors?
Yes. We support customized frequency ranges, cable lengths, connectors including SMA, TNC, BNC and N-type, as well as product dimensions.
Q3: What is your production process?
We provide complete services from engineering evaluation, prototype testing to mass production delivery.
Q4: Do you provide samples before bulk orders?
Yes. Sample testing is available for customers before production confirmation.
Q5: What industries use your magnetic base antennas?
They are widely used in automotive communication, IoT gateways, GPS tracking, industrial monitoring and wireless networking equipment.
Contact Manufacturer
We are a professional Magnetic Base Antenna supplier and manufacturer in China, offering bulk supply, OEM customization, and global export services.
Send us your requirements to get:
· Fast quotation
· Sample support
· Custom engineering solution
