Fiberglass Antenna

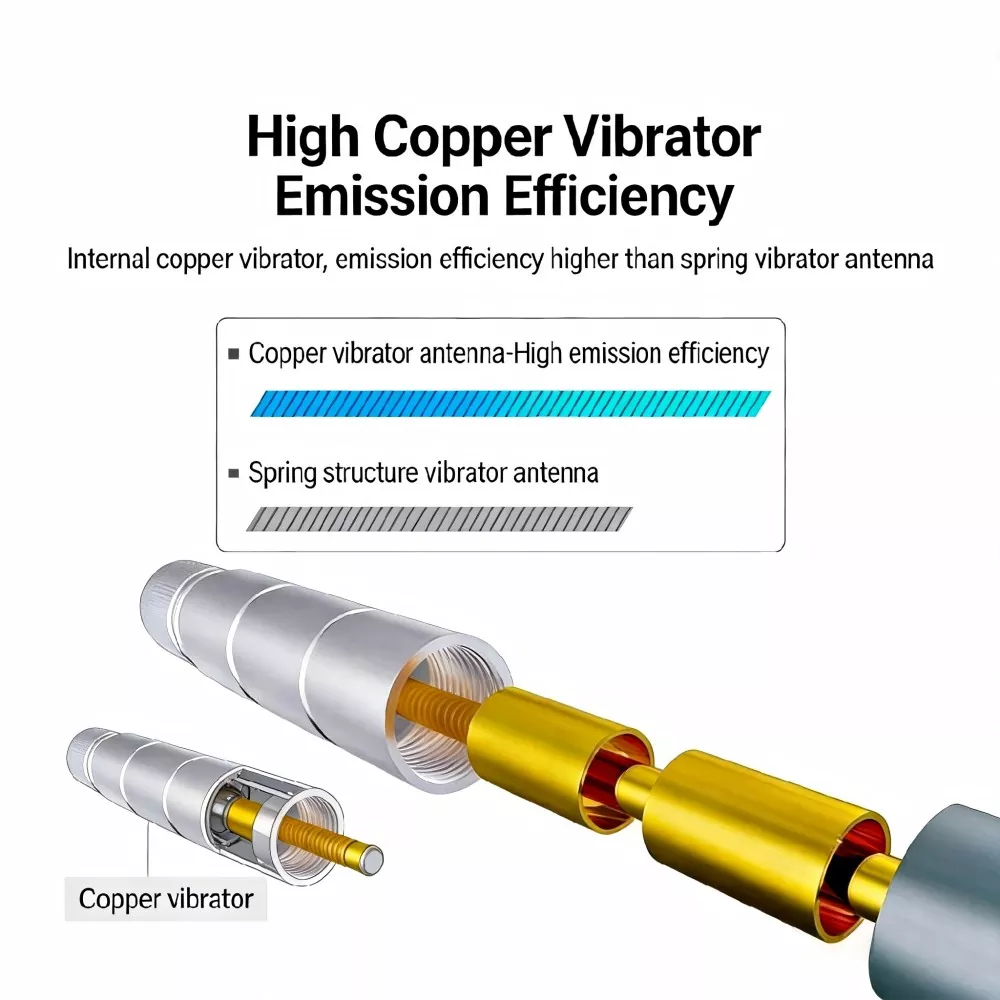

A fiberglass antenna is a communication antenna constructed with a shell made of glass fiber-reinforced plastic (FRP/SMC). Its shell exhibits minimal interference with wireless signals and high wave transmission efficiency. Internally, it employs pure copper elements and a balanced power supply design, with precisely arranged elements enabling efficient electromagnetic wave radiation and reception while significantly reducing signal reflection losses.

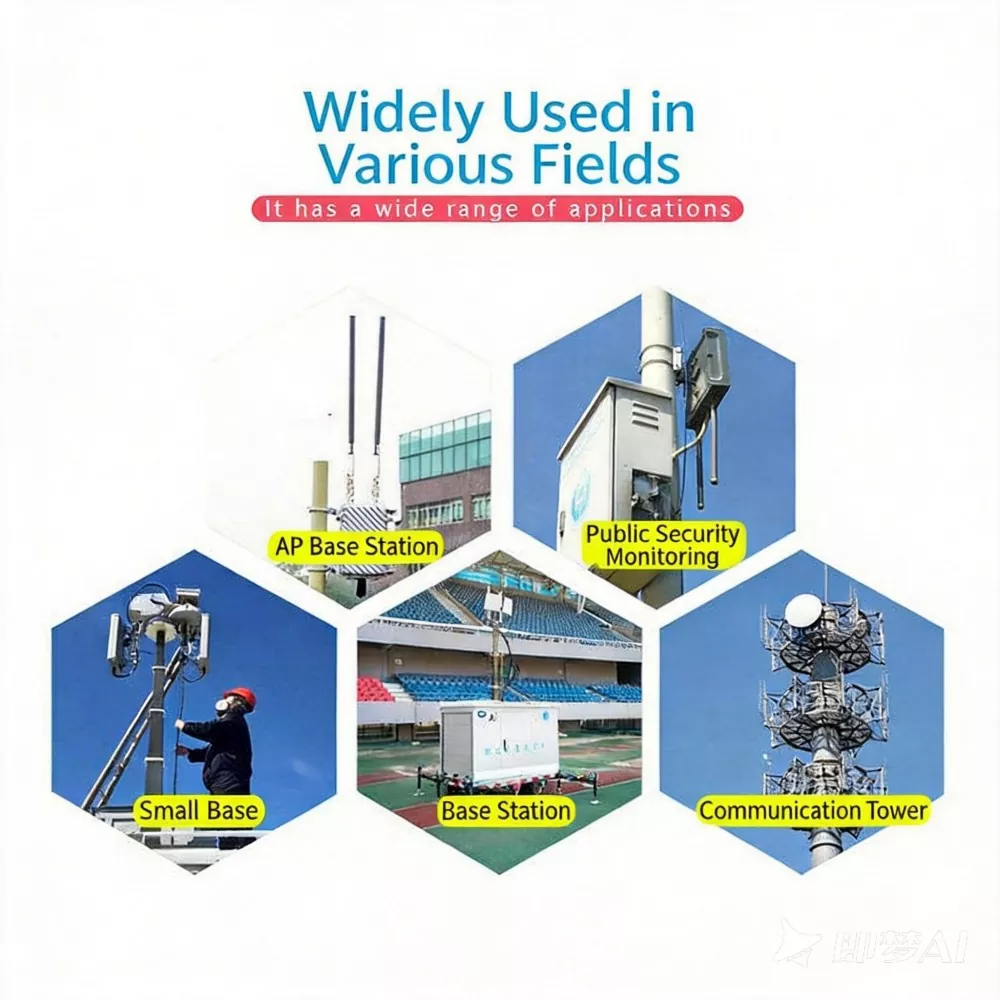

Application Scenarios

• Coastal and high-humidity areas: Provides excellent protection against salt spray corrosion, ensuring stable communication links.

• Urban dense areas: The streamlined design reduces wind resistance and minimizes signal blind spots.

• Extreme industrial environments: Reliable data transmission in harsh conditions such as mines and oil pipeline monitoring.

Core Selling Points

• Wind and corrosion resistance: withstands typhoons of Category 12 (45 m/s), salt spray, and acidic/alkaline environments, with a service life exceeding 15 years.

• Lightweight yet highly strong: Weighing only half that of traditional metal antennas while offering exceptional structural rigidity.

• High gain with low standing wave: uniform signal coverage and penetration loss controlled within 0.5 dB.

• All-weather performance: Operates effectively across a wide temperature range of-45°C to +85°C, with IP67-rated water and dust resistance.

Core Technical Specifications

Comparison with peers

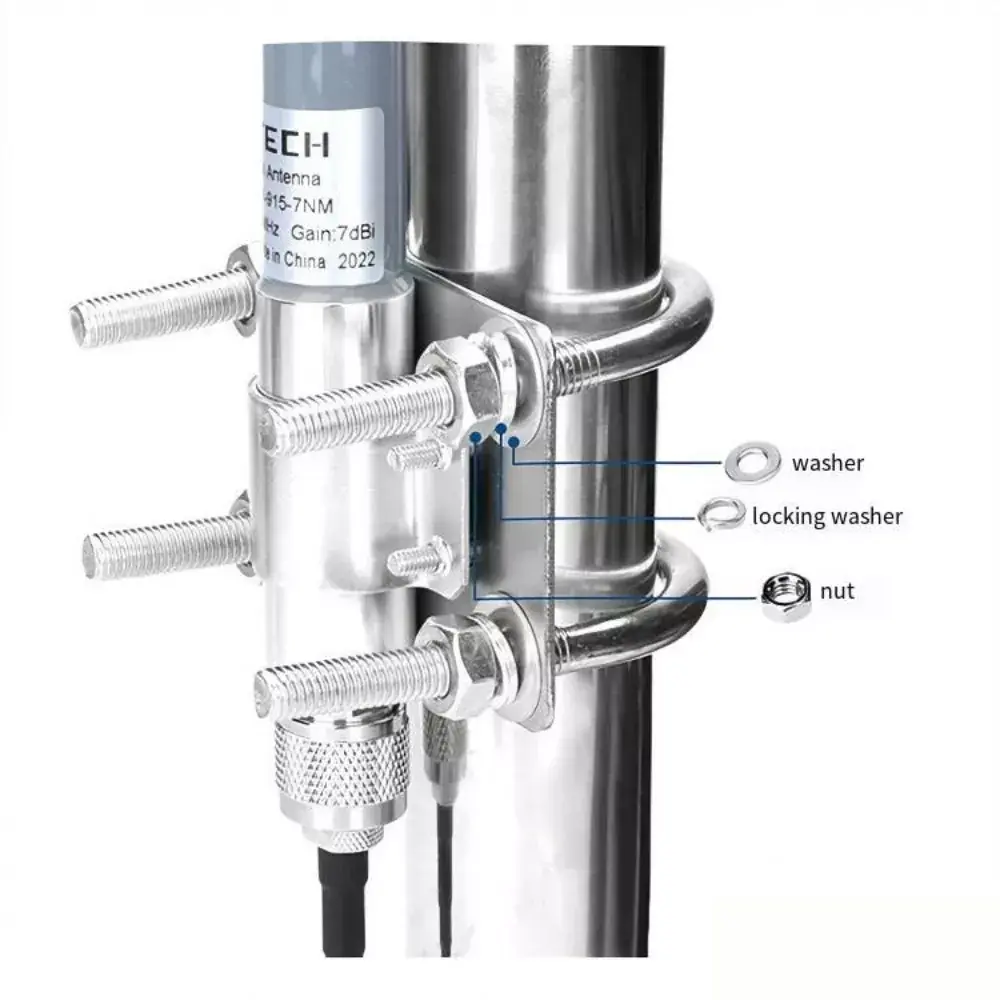

Installation Guide

① Position the antenna base adjacent to the mast.

② Pass the U-shaped clamp code through the support rod and onto the antenna.

③ Insert the hook

④ Pass the flat plate, spring plate, and nut sequentially through the screw.

⑤ Simply tighten the nut.

How to Choose a Product

• Matched Frequency Band: Ensure the antenna frequency band fully matches the device's frequency band (deviation should not exceed ±50 MHz).

• Scenario Evaluation: For long-distance point-to-point connections, select high gain (10–12 dBi); for omnidirectional coverage, select medium gain.

• Environmental resistance: For coastal areas, ensure compliance with IP67 certification and salt spray resistance test reports.

Why Choose Us

As an industry-leading fiberglass antenna supplier, Shenzhen Qianmu Communication Technology Co., Ltd. delivers end-to-end services spanning R&D to production. Leveraging our robust China Manufacturer supply chain network, we not only ensure consistent batch quality but also offer highly competitive factory-direct pricing and rapid customization responses.

FAQ

Q: Are you the direct manufacturer of these antennas?

A: Yes, Shenzhen Qianmu Communication Technology Co., Ltd. is a certified China Manufacturer with its own production line, eliminating middleman markups.

Q: Is customization available for fiberglass antennas?

A: Supported. As a seasoned supplier, we can provide customized solutions tailored to your frequency band, gain, and size requirements.

Q: How long is the product's service life?

A: Under normal outdoor conditions, our FRP antennas typically have a service life of over 15 years.
