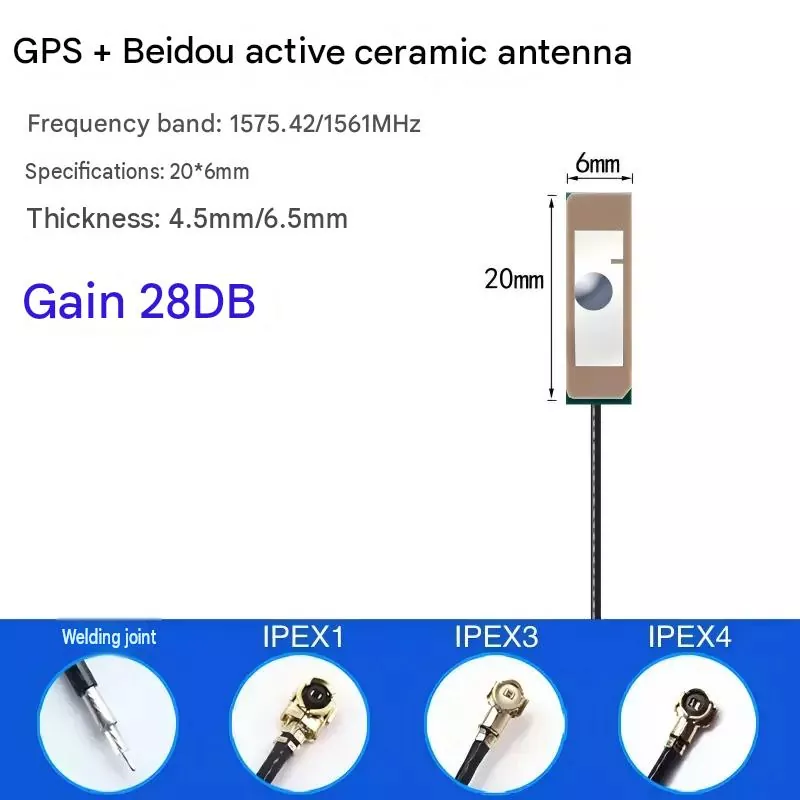

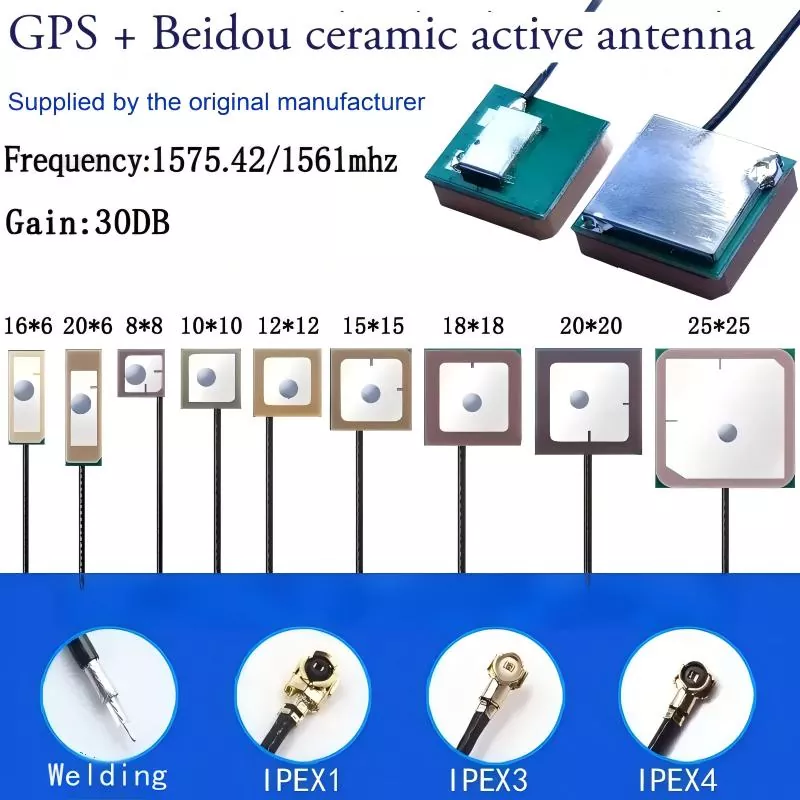

Tablet GPS/BD Positioning Antenna

The GPS BeiDou ceramic positioning antenna is a passive/active dual-mode satellite positioning receiving antenna built on a ceramic dielectric substrate, serving as a core signal reception component for tablet smart devices and IoT positioning terminals. Unlike standard external antennas, this dedicated Tablet GPS/BD Positioning Antenna features a high-frequency ceramic resonant design that simultaneously captures signals from both the GPS global satellite system and the BDS BeiDou satellite system. Some models are also compatible with GLONASS and GALILEO multi-system signals, enabling continuous satellite positioning data reception even in complex environments, delivering precise location information including longitude, latitude, altitude, and speed to the device.

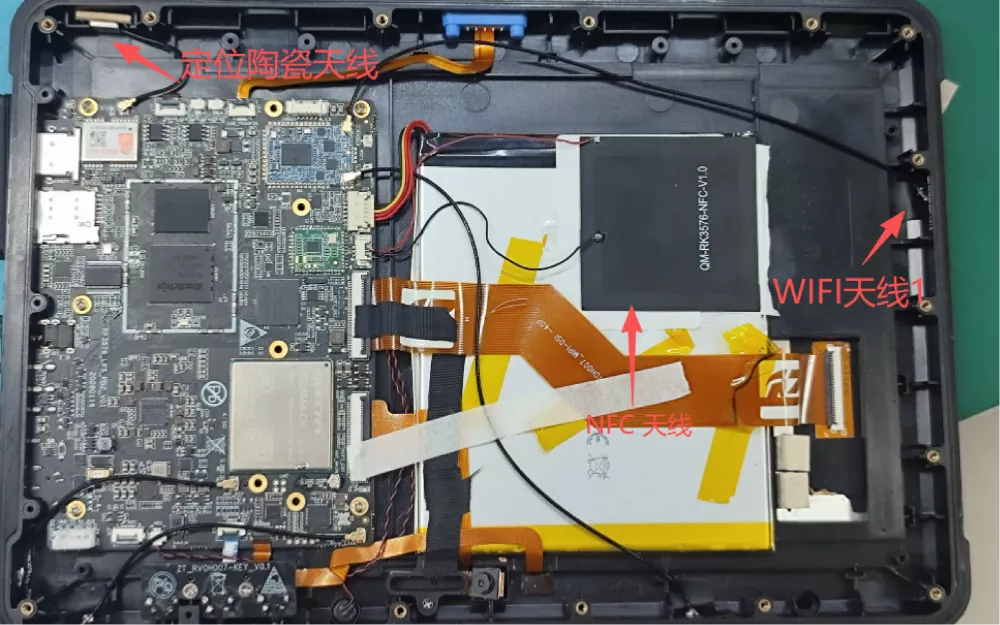

Our GPS and BeiDou ceramic positioning antennas are specifically optimized for slim tablet devices, featuring compact size, lightweight design, and a snug fit that saves internal space without compromising signal reception performance or device compatibility. They perfectly meet the built-in installation requirements of various tablets, including consumer-grade, industrial, and ruggedized models, making them one of the most widely used core antenna components in smart positioning devices today.

Compatible device range

This Tablet GPS/BD Positioning Antenna offers excellent compatibility, specifically designed for various tablet devices and derivative smart positioning terminals, covering multiple fields including consumer electronics, industrial applications, automotive, and IoT. The specific compatible devices are as follows:

• Tablet devices: consumer-grade Android tablets, Windows business tablets, industrial rugged tablets, in-vehicle navigation tablets, handheld surveying tablets, educational tablets, and outdoor work-specific tablets—perfectly compatible with various built-in tablet mounting structures and designed to fit slim, lightweight bodies.

• IoT positioning terminals: portable IoT positioning modules, personnel positioning terminals, asset tracking locators, outdoor monitoring terminals, and smart wearable positioning devices.

• In-vehicle smart devices: in-vehicle navigation terminals, dashcams, in-car tablet central control units, truck positioning terminals, and agricultural machinery in-vehicle positioning devices.

• Outdoor work equipment: drone ground control tablet, handheld surveying instrument, outdoor inspection terminal, engineering survey tablet, geological exploration positioning device.

• Intelligent security devices: mobile security monitoring terminals, portable law enforcement tablets, emergency rescue positioning equipment, and all other intelligent terminals requiring satellite positioning.

Core Product

As a professional original manufacturer, our Tablet GPS/BD Positioning Antenna stands out from ordinary antennas on the market. After tens of thousands of real-world device tests and scenario evaluations, it features multiple core differentiating advantages that effectively address users' positioning challenges in their devices:

• Dual-mode dual-system compatibility doubles satellite acquisition efficiency: supports both GPS and BeiDou dual-mode signal reception simultaneously, increasing the number of satellites acquired by over 60% compared to single-mode antennas. In open environments, it achieves rapid satellite acquisition in just 1–3 seconds, with cold-start positioning speed far surpassing that of standard industry products, eliminating startup delays and positioning lag.

• High gain and low loss, with maximum signal stability: Utilizing imported high-frequency ceramic substrate, the antenna delivers stable and compliant gain. The active model features a built-in low-noise amplifier, enabling extremely high signal reception sensitivity. Even in weak signal environments—such as indoors, under building obstructions, tree cover, or urban high-rise interference—the device maintains stable satellite signal lock, effectively eliminating positioning drift, disconnection, and lag.

• Strong anti-interference capability, suitable for complex operating conditions: Featuring a dedicated filtering circuit design that effectively blocks high-frequency interference from Wi-Fi, Bluetooth, 4G/5G, and electromagnetic devices. Industrial-grade models support wide-temperature operation from -40°C to +85°C, ensuring stable signal performance without degradation in extreme hot or cold environments, making them ideal for demanding outdoor, industrial, and automotive applications.

• Ultra-slim and customizable, designed to fit tablet structures: Optimized for the slimming requirements of tablet devices, with an extremely thin profile that allows concealed internal installation without compromising the device's appearance or internal structure. Supports personalized customization in dimensions, interfaces, and cable length, compatible with various tablet mold designs.

• Low power consumption for extended battery life: Passive antennas consume zero power, while active antennas feature ultra-low power design, avoiding additional drain on tablet or terminal device batteries—perfectly suited to the power needs of portable and mobile devices.

• Factory-direct high cost-performance: As a direct manufacturer and factory, we eliminate middlemen markups, offering excellent value for money. We support large-volume in-stock supply, OEM/ODM customization, short delivery cycles, and consistent quality control.

Detailed Technical Specifications

Product Comparison with Competitors

Certification and Quality Assurance

Shenzhen Qianmu Communication Technology Co., Ltd. is a legitimate manufacturing facility and a reliable China Tablet GPS/BD Positioning Antenna Factory, equipped with independent production workshops, quality control laboratories, and testing equipment. All antenna products come with complete certifications, ensuring controllable quality that fully complies with industry export standards and domestic quality inspection requirements.

1. Authoritative Product Certification

All products are certified with CE, FCC, RoHS, and ISO9001 quality management system standards, meeting requirements for cross-border export, industrial procurement, and national electronic equipment specifications. They pose no environmental or quality risks and can be supplied globally in compliance with regulations.

2. Factory Quality Control System

The factory is equipped with fully automatic SMT production lines, high-frequency signal detectors, high-low temperature aging test chambers, and vibration testing equipment, establishing a comprehensive quality control system covering every stage from raw material storage and production processing to semi-finished product inspection, finished product aging, and final outgoing inspection. Each GPS BeiDou ceramic positioning antenna undergoes signal gain testing, standing wave ratio testing, high-low temperature aging testing, and anti-interference testing before leaving the factory, ensuring no defective products are released.

3. Quality and After-Sales Service Guarantee

The factory guarantees all products are authentic, with a standard one-year warranty. Bulk purchasing customers can enjoy exclusive warranty upgrades, and we provide factory inspection reports and certification documents upon delivery, ensuring product quality is traceable and verifiable.

FAQ

Q1: Does this Tablet GPS/BD Positioning Antenna support standalone BeiDou system operation?

A: Fully supported. The product features dual-mode GPS/BDS adaptive capability, enabling independent compatibility with either the BeiDou or GPS positioning systems, as well as coordinated operation of both systems to automatically select and lock onto optimal satellite signals.

Q2: How to choose between active and passive antennas?

A: For indoor use with good signal coverage, a passive antenna is sufficient—offering high cost-effectiveness and zero power consumption. For outdoor, automotive, industrial, or environments with significant signal obstruction, we recommend an active high-gain antenna, which provides better signal amplification and more stable positioning.

Q3: Does it support custom sizes, cable lengths, and connectors?

A: Yes, we support! As a factory at the source, we can customize products according to customers' equipment structure, interface requirements, and cable length needs, offering one-stop OEM/ODM services.

Q4: What causes inaccurate positioning after antenna installation?

A: It is most likely caused by metal obstruction, electromagnetic interference, or loose connections. You can adjust the antenna's installation position, keep it away from metal components, and re-tighten the connectors. Slight drift in complex urban environments is normal; active models can significantly improve this issue.
