Digital Photo Frame WiFi Antenna

What is a digital photo frame WiFi antenna

The digital photo frame WiFi antenna is a specialized RF transceiver antenna designed specifically for smart cloud photo frames, commercial advertising photo frames, and home electronic photo frames. It is specially engineered to accommodate the internal structure of photo frames, minimize electromagnetic interference, and meet low-power consumption requirements, distinguishing it from standard universal WiFi antennas.

After installation, standard antennas are easily shielded by screens, batteries, and motherboards, leading to poor signal quality, frequent disconnections, and lag during remote image transmission. It has been optimized through electromagnetic simulation, specifically designed to fit the compact internal space of 7–15.6-inch frames, ensuring stable cloud connectivity and smooth remote image transfer.

Shenzhen Qianmu Communication Technology Co., Ltd., as a Chinese original manufacturer and producer, independently researches, develops, and manufactures digital photo frame WiFi antennas. We support overseas procurement, OEM manufacturing, and customized development, serving as a reliable supplier for customers worldwide.

Product Working Principle

The core working principle of the digital photo frame's WiFi antenna is the bidirectional conversion and transmission of electrical signals into electromagnetic waves. Relying on dual-band 2.4G/5G RF transmission technology, it enables stable and efficient wireless data exchange between the digital photo frame, router, mobile app, and cloud server throughout the entire process.

1. Signal transmission process: The digital photo frame's mainboard converts local images, videos, and text content into electrical signals, which are then transmitted to the device's WiFi antenna. The antenna transforms these electrical signals into high-frequency electromagnetic waves, radiating them outward to a home or commercial WiFi router, thereby completing data upload from the device and cloud synchronization.

2. Signal Reception Process: Images and update commands pushed from the mobile app or cloud backend are converted by the router into electromagnetic wave signals, which are then transmitted outward. The digital photo frame's Wi-Fi antenna precisely captures these wireless signals, converting the electromagnetic waves back into electrical signals. These signals are then sent to the device's Wi-Fi module, enabling content download, remote updates, and network-based device control.

Compatible device range

This digital photo frame WiFi antenna is compatible with 99% of smart digital photo frames on the market, covering all categories including home, commercial, gift, and engineering applications. It offers excellent compatibility and can be directly installed without requiring any additional mold modifications.

• 7-inch, 8-inch, 10.1-inch, 12-inch, and 15.6-inch full-size home smart cloud digital photo frames

• A touch-screen digital photo frame device that supports remote image pushing via mobile app, cloud synchronization, and scheduled updates

• Commercial smart display frames for hotels and guesthouses, lobby advertising digital photo frames, corporate culture display screens

• Cross-border e-commerce best-selling gift: Digital photo frame, portable wireless digital photo frame with battery

• Embedded digital photo frame motherboard module based on Rockchip, Allwinner, and ESP32 solutions

As a professional manufacturer, we can customize dedicated digital photo frame WiFi antennas based on customers' equipment structural drawings, installation space, and interface requirements, ensuring compatibility with non-standard devices of special dimensions and unique mounting configurations.

Detailed Technical Specifications

Product Comparison with Competitors

Installation and Usage Guide

This digital photo frame WiFi antenna is easy to install, requiring no professional tools, suitable for both mass production assembly and after-sales replacement. The entire process takes just three simple steps and fits all models:

1. Pre-installation: Turn off the digital photo frame power, remove the back cover of the device, clean dust and debris from the internal installation area, ensure there are no metal obstructions or wire compression in the installation zone, and reserve sufficient space for antenna wiring.

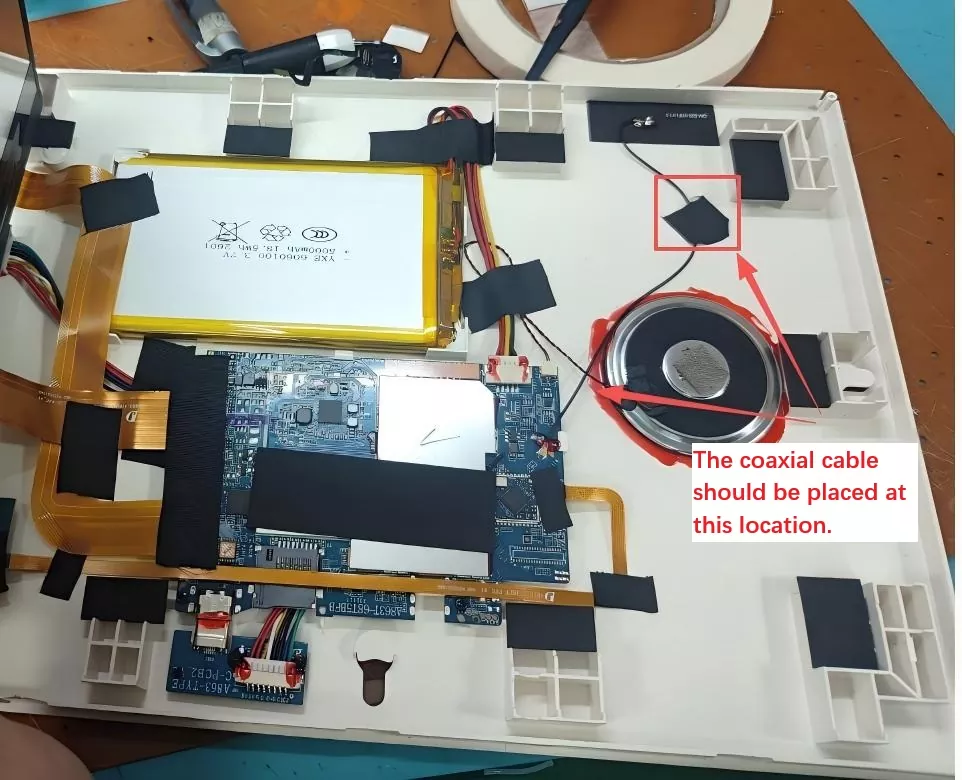

2. Secure the antenna body: Peel off the backing adhesive of the FPC flexible antenna and attach it flatly to the blank area on the inner wall of the frame, avoiding interference sources such as the screen, battery, and motherboard chips. For the external adhesive rod antenna, directly fix it onto the designated interface position on the device housing to ensure a firm, secure fit without loosening.

3. Interface Connection and Debugging: Accurately insert the antenna interface into the device's WiFi module port, securely snap it into place, organize the cables to avoid compression, bending, or tangling, then close the back cover, power on the device, and test the network connectivity and remote image transmission functions. Installation is complete once a stable signal is confirmed.

Installation Tip: For batch assembly, follow the standardized installation drawings provided by our factory to ensure maximum signal consistency across all units. If you require customized installation drawings, please contact the manufacturer to obtain them free of charge.

Product Selection Guide

Many purchasing customers often make mistakes when selecting models, leading to batch equipment signal failures and a surge in after-sales service. When choosing WiFi antennas for digital photo frames, refer to the following key criteria to ensure accurate selection:

1. Prioritize scene-specific models and avoid generic, filler options. Generic antennas lack optimization for photo frame environments; although they may appear cost-effective, they actually have a very high failure rate in mass production. Always choose dedicated antennas specifically designed for digital photo frames, optimized for enclosed, interference-resistant environments.

2. Verify key parameters and match the device solution. Select the appropriate model based on the device's Wi-Fi standard (Wi-Fi 4/Wi-Fi 5/Wi-Fi 6), installation space, interface type, and cable length. Mismatched parameters will directly result in poor signal quality or inability to connect to the network.

3. Prioritize direct factory sourcing and avoid intermediaries. Direct factories offer customization of specifications, sample testing, certification reports, and after-sales support, while intermediaries cannot provide technical assistance, lack quality control, and often result in significant batch-to-batch variations.

4. Test samples before bulk procurement: Conduct on-site testing prior to full-scale production to verify signal stability for long-distance networking, multi-device connectivity, and extended standby periods. Only place bulk orders after confirming all parameters are correct, thereby avoiding mass production risks.

FAQ

Q1: Does this digital photo frame WiFi antenna support custom dimensions and interfaces?

A: Yes, we support customization. As a manufacturer, we can tailor cable length, antenna dimensions, gain parameters, and connector types according to the customer's equipment structure, interface requirements, and installation space, and provide free sample testing.

Q2: Can the product be exported, and does it have the relevant certifications?

A: All products are RoHS and REACH certified, meeting global export standards. We can assist customers with obtaining CE, FCC, and other certifications, making them suitable for cross-border e-commerce and overseas supermarket listings.

Q3: How much improvement does it offer in real-world use compared to a regular Wi-Fi antenna?

A: Signal stability has improved by over 40%, disconnection probability reduced by 90%, significantly enhancing user experience in long-distance and multi-device networking scenarios, completely resolving issues such as lag and offline problems when remotely transferring images to digital photo frames.
