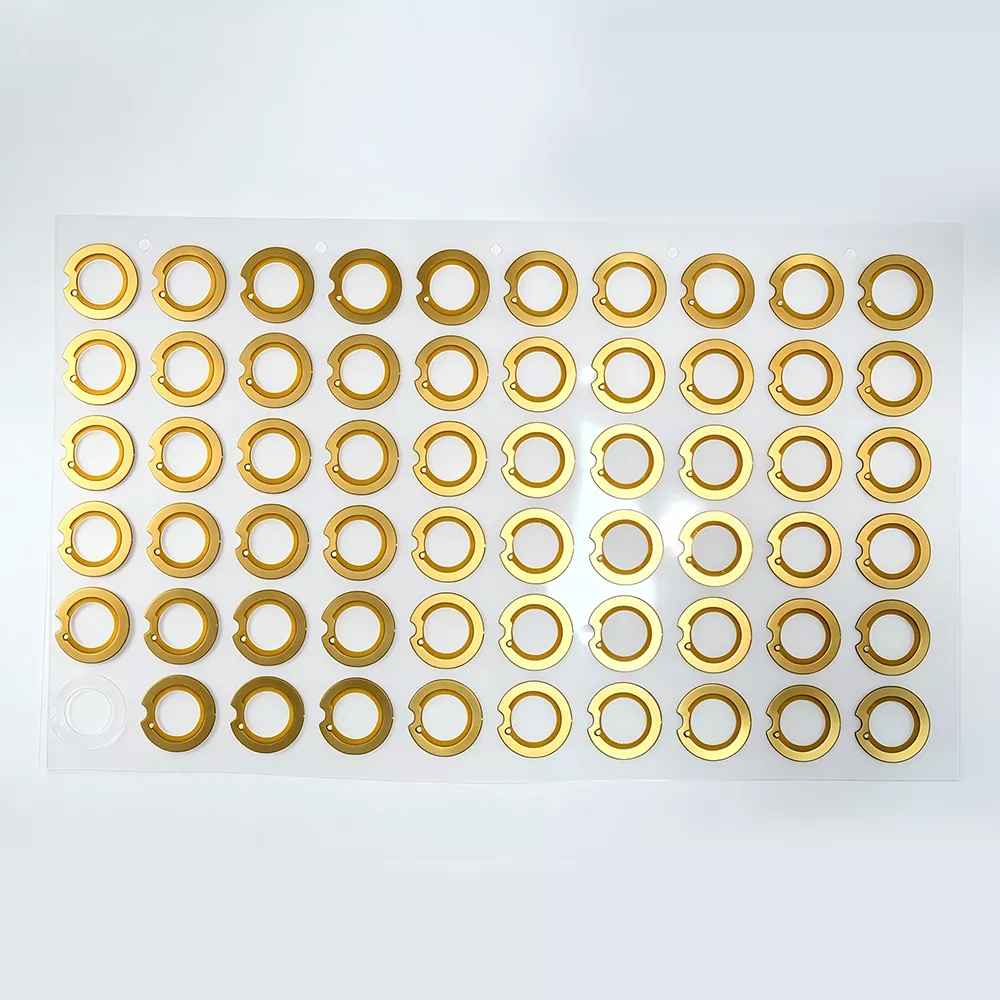

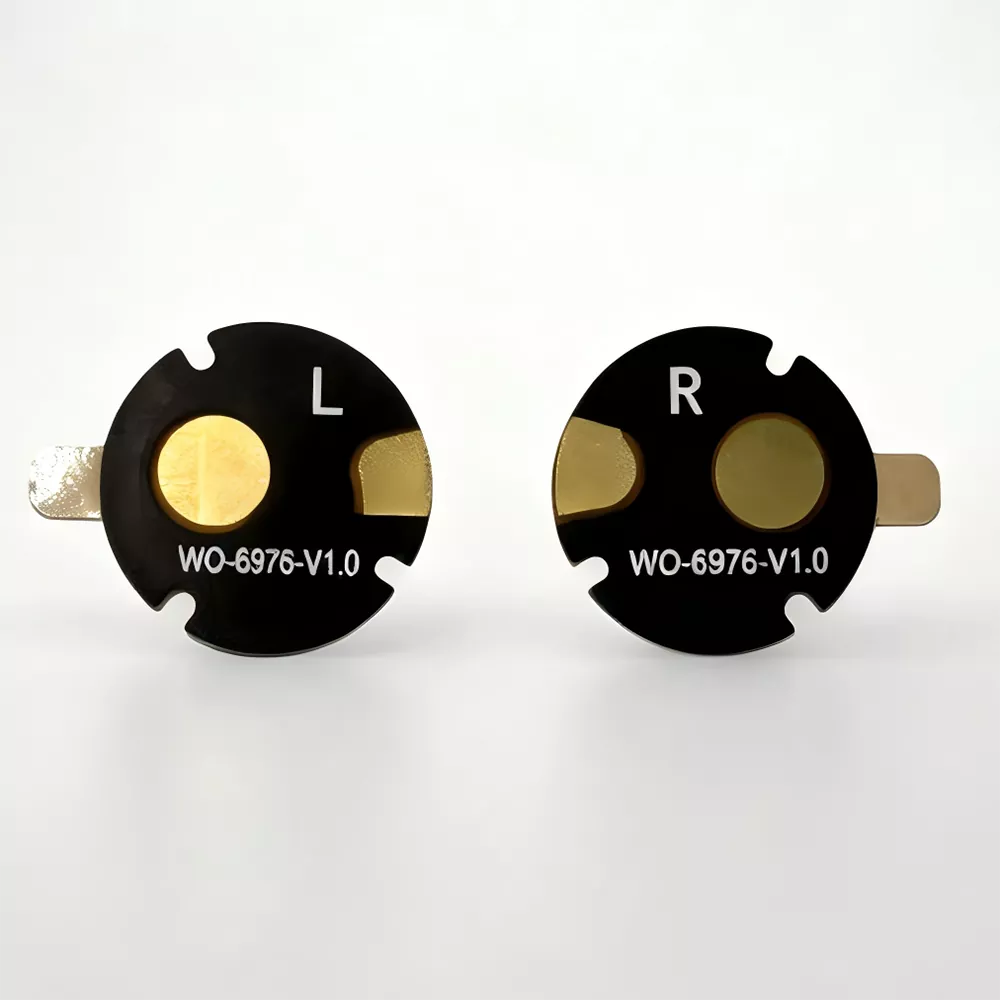

Flexible Headphone Antennas are miniature RF transceiver components that use PI/LCP flexible substrates as the base, with conductive radiating patterns formed through etching. They are specifically designed for TWS Bluetooth earbuds, over-ear wireless earphones, and bone-conduction headphones with compact internal cavities. Unlike rigid PCB or spring antennas, Flexible Headphone Antennas offer excellent bendability and ultra-thin profiles, enabling them to conform to inner walls of earphone housings, battery sides, and irregularly shaped ear stems. This effectively addresses challenges such as limited cavity space and signal obstruction caused by metal structures.

Shenzhen Qianmu Communication Technology Co., Ltd., as a Shenzhen-based antenna manufacturer, relies on its in-house RF laboratory to continuously refine headphone antenna design solutions and serves as a reliable supplier for numerous headphone brands.

Working Principle

They are essentially miniature planar RF radiation components. High-frequency electrical signals from the wireless audio module are transmitted to the antenna's radiating circuit, which converts them into electromagnetic waves through electromagnetic induction. Simultaneously, the antenna captures external Bluetooth electromagnetic waves and converts them back into electrical signals for transmission to the main control chip, enabling bidirectional audio data transfer between smartphones and earphones. To optimize performance in earphone usage scenarios, we have refined the antenna's feed point and grounding matching design to reduce signal absorption loss caused by the human head. Real-world test case: For the same TWS earbuds, replacing a standard spring antenna with our Qianmu Flexible Headphone Antenna increased stable connection distance through a wall from 3.2m to 6.1m, reducing disconnection probability by 72% (test data collected in anechoic chamber with real human wear; test reports available upon request).

List of Compatible Devices

This Flexible Headphone Antenna is widely compatible with various wireless audio terminals:

1. TWS True Wireless Bluetooth Earbuds (In-ear, Semi-in-ear)

2. Open-back ear-hanging Bluetooth headphones, air-conduction headphones

3. Bone conduction wireless earphones, neckband Bluetooth headphones

4. Auxiliary audio receiving headphones, wireless hearing aid-style headphones

5. Compact Headset Portable Wireless Earphones with Built-in Modification Solution

Key Selling Points

1.Ultra-thin and flexible, designed to fit the extreme stacking of earbuds

Available in thicknesses of 0.12–0.3 mm, with a minimum bending radius of ≤1.5 mm, it supports tens of thousands of flex cycles without copper cracking or delamination. It can be adhered to earphone stems, battery sides, or curved inner walls of housings, eliminating the need for flat PCB areas and helping structural engineers reduce earphone size.

Actual photo: Antenna multi-angle bending test in real time

2.Stable RF performance reduces disconnections and lag

The Qianmu Communications RF team completed impedance matching simulation ahead of schedule, achieving a headphone antenna VSWR ≤1.8 and high signal radiation efficiency. This effectively mitigates signal attenuation caused by head obstruction during wear, reducing audio stuttering in running and commuting scenarios.

3.Equipped with high-temperature adhesive backing for easy automated assembly

The back of the antenna features high-temperature-resistant double-sided adhesive, allowing for quick and secure attachment by simply peeling off the protective film—no clips or screws required. This design is ideal for fast assembly on factory production lines, reducing labor time during installation.

4.High Customization (Factory Direct Supply Advantage)

As a China headphone antenna manufacturer, we support customization of外形轮廓 (外形)， frequency band tuning (primarily 2.4GHz Bluetooth， expandable), lead length, terminal type (U.FL， tinned contacts), and substrate material (PI for economy-grade / LCP for high-end). We offer sample production for small batches and reliable delivery timelines for large-volume orders.

5.Strict quality control, high consistency

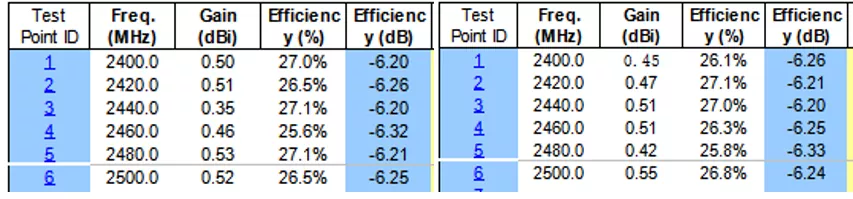

Each batch of earphone antennas undergoes sampling and testing in an RF anechoic chamber, as well as high-low temperature cycling and bending aging tests, eliminating batch performance variations and making them suitable for long-term mass production of branded earphones.

Technical Specifications

Flexible Headphone Antenna vs. Common Antenna Solutions in the Industry

Many headphone manufacturers struggle when selecting antennas, torn between spring antennas, rigid PCB antennas, and ceramic antennas. Based on real-world testing across thousands of headphone projects, we've compiled a clear and intuitive comparison:

If your earbuds have limited internal space, irregular housing shapes, or require high consistency in mass production, a Flexible Headphone Antenna is the optimal solution. As an original manufacturer based in Shenzhen, Qianmu Communications can quickly optimize the antenna design according to your prototype.

RF anechoic chamber testing equipment

How to Choose the Right Flexible Headphone Antenna

Many headphone procurement engineers often make mistakes when selecting models. Based on years of supplier service experience, here are four key selection criteria:

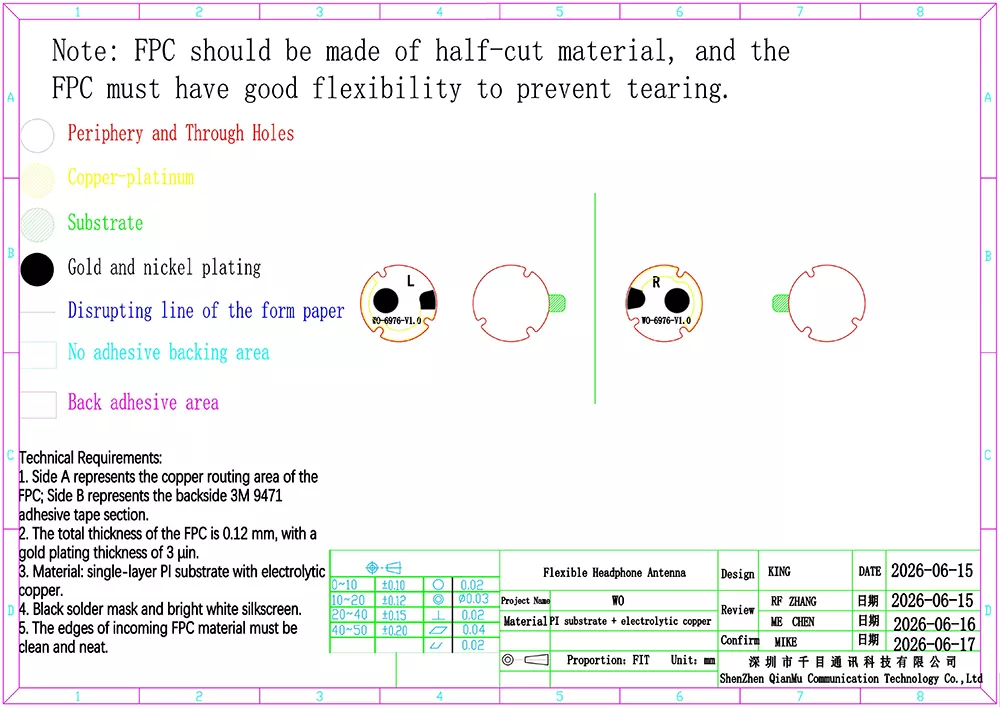

1. Prioritize confirming the available internal space within the earphone, and provide 3D drawings of the cavity's length, width, height, and structure. We will assess the maximum antenna dimensions and allowable bending areas. Do not directly purchase standard off-the-shelf antennas, as this is highly likely to result in poor signal performance.

2. Clearly define environmental usage goals. For products targeting sports and outdoor headphones, select versions optimized for bend resistance and vibration resistance; for export products, confirm the environmental certification requirements of the target market in advance.

3. Pay attention to RF tuning support services—simply purchasing a Flexible Headphone Antenna doesn't guarantee usability! Without proper antenna matching and tuning, even the best materials can result in performance lag. Choose a manufacturer with in-house RF engineers, rather than just a middleman.

4. Send us a sample for testing before placing the official order. We will produce prototype antennas for on-site testing by the customer. Mass production will only begin after successful testing, minimizing development risks.

FAQ

Q1: Does the earphone antenna support custom sizing?

A: Yes, we support customization. As a factory, we can mold and customize the external dimensions, lead length, and terminal type according to the internal structure of the earphone. You can provide 2D/3D drawings, and we will evaluate the design and produce samples.

Q2: What is the minimum order quantity (MOQ) for earphone antennas?

A: Standard in-stock earphone antennas with low MOQ; custom samples available in small quantities, and MOQ for mass production orders can be negotiated. Feel free to contact our sales team for inquiries.

Q3: Can you provide an antenna RF test report?

A: Yes. Each batch of products comes with factory test data, and we can also provide third-party inspection reports upon customer request, ensuring full traceability of documentation.

Q4: Can the earphone antenna be compatible with a Bluetooth 5.3 module?

A: Fully compatible. The Flexible Headphone Antenna operates in the standard 2.4G ISM band and is compatible with the entire series of Bluetooth 5.0/5.1/5.2/5.3 audio modules.

Q5: What documents can be provided for product export?

A: We can provide proforma invoices, packing lists, RoHS and CE reports, business licenses, and other documents to meet customs clearance requirements in various countries.
