Headphone WiFi Antenna

The Headphone WiFi Antenna is a compact, highly adaptable wireless communication antenna and serves as the core hardware enabling headphones to connect to WiFi, transmit high-definition audio wirelessly, perform cloud-based firmware updates, and achieve low-latency audio-video synchronization. Unlike conventional external antennas or standard Bluetooth antennas, this dedicated headphone WiFi antenna has been specifically optimized for the tight space constraints of over-ear headphones, metal casing shielding, close-fitting wear that causes signal obstruction, and complex indoor signal environments. It features a smaller form factor, stronger anti-interference capability, and superior signal penetration performance.

As a seasoned headphone WiFi antenna manufacturer, we have moved away from the generic, one-size-fits-all approach to antenna design. Instead, we focus on the unique use cases of headphone devices, developing lightweight, highly compatible, and stable dedicated antenna solutions. These products effectively resolve common industry issues such as disconnections, lag, audio distortion, and weak signal strength typically encountered with standard antennas in headphones. Our antennas are widely compatible with all types of devices, including consumer audio-visual headphones, gaming esports headsets, business noise-canceling over-ear headphones, and educational listening headphones.

Core Working Principle

The core working principle of the Headphone WiFi Antenna relies on electromagnetic wave RF conversion technology and resonance matching principles, integrating with the headphone device's RF circuit to achieve bidirectional signal transmission. It ensures high efficiency, low power consumption, stability, and strong anti-interference capability throughout operation. The working process consists of two main modules: signal transmission and signal reception, featuring clear principles, mature technology, and precisely verifiable performance.

1. Signal transmission principle: The earphone's main board converts audio data and control commands into high-frequency electrical signals, which are transmitted via a precisely matched impedance circuit to the earphone's Wi-Fi antenna. Inside the antenna, a multi-layer microstrip resonant structure transforms the electrical signals into dual-band 2.4GHz/5GHz electromagnetic waves, radiating omnidirectionally to enable wireless data exchange between the earphones and routers, computers, or mobile devices.

2. Signal Reception Principle: The WiFi electromagnetic wave signals emitted by external devices are fully captured by the earphone's WiFi antenna. These signals pass through a resonant cavity in the antenna, which filters out the corresponding frequency band and removes noise interference. The electromagnetic waves are then converted back into high-frequency electrical signals and transmitted to the earphone's decoding chip, where audio and data commands are received and decoded.

We optimized the antenna clearance layout and polarization method to address signal shielding issues caused by metal headbands, batteries, and audio drivers in headphones. This enables the antenna to maintain high radiation efficiency even within a compact, enclosed housing, achieving a measured signal loss rate of less than 8%, significantly outperforming standard industry antenna benchmarks.

Compatible device range

As a professional supplier of headphone WiFi antennas, our products offer excellent compatibility, supporting 99% of wireless over-ear headphones currently on the market. They cover a wide range of scenarios and device categories. The compatible models are listed below:

• Gaming Headset: Supports WiFi 6 low-latency networking, compatible with PC and console gaming devices for synchronized audio and video

• High-Definition Audio-Visual Headphones: Home HiFi Wireless Earphones, Noise-Canceling Audio-Visual Headphones, and Home Theater Compatible Headsets

• Business Office Headphones: Wireless Headsets for Remote Meetings, Noise-Canceling Office Headphones, and Headphones Designed for Online Classes

• Educational Headset: Campus Listening Training Headphones, Wireless Headsets for Online Teaching

• Smart wearable headgear: smart headphones with Wi-Fi connectivity and immersive VR-compatible audio headphones

• Industrial Headset: Wireless Headsets for Workshop Communication and Noise-Canceling WiFi Headsets for Equipment Inspection

Custom Headphone WiFi antennas can also be designed according to the customer's device motherboard dimensions, chassis structure, and frequency band requirements, supporting personalized configurations such as non-standard sizes, special impedances, and directional radiation, meeting diverse production needs of various manufacturers.

Differentiation Advantage

Common headphone antennas on the market often suffer from weak signals, frequent disconnections, high latency, large size, and susceptibility to interference. As a leading Headphone WiFi Antenna Manufacturer, we have iteratively optimized our products to address these industry pain points, delivering five core advantages—real-world performance significantly outperforms competitors.

Dual-band full coverage, seamless transmission with zero lag

1. Supports dual-band Wi-Fi transmission at 2.4GHz and 5GHz, compatible with Wi-Fi 4/5/6 protocols. The 2.4GHz band offers strong wall penetration, ideal for long-range home and office use; the 5GHz band provides higher bandwidth and less interference, achieving a low video and audio transmission latency of just 15ms in real-world testing—fully meeting the demanding requirements of gaming and high-definition multimedia, eliminating audio lag and audio-video synchronization issues.

2. Compact and slim design, fits seamlessly without adding pressure to the device

Utilizing LTCC multilayer ceramic integration technology, the antenna has an overall thickness of just 0.8 mm, making it compact and requiring no large clear space. It perfectly fits the confined internal space of headphones without occupying areas for batteries, mainboards, or audio drivers, and adds no extra weight to the device, ensuring a lightweight wearing experience.

3. Excellent anti-interference capability and strong signal stability

Optimized antenna radiation angle and shielding structure to effectively avoid signal interference caused by the metal casing, lithium battery, and speaker unit of the headphones. In real-world testing under complex electromagnetic environments (such as multi-device connectivity and dense router scenarios), the signal stability rate reached 99.6%, with no disconnections, frequency hopping, or noise interference.

4. Low power consumption and high gain for longer battery life

The antenna gain is optimized to 2.5 dBi, with a radiation efficiency of ≥92%, significantly improving signal reception sensitivity while maintaining extremely low power consumption. Headphones equipped with this antenna can extend battery life by 12%–18% in Wi-Fi connectivity mode, effectively prolonging device usage time.

5. High compatibility and easy installation, worry-free mass production

Standardized surface-mount structure compatible with SMT automated placement processes, enabling convenient installation and stable soldering with a high yield rate of up to 99.8%. Supports mass production and large-scale supply, while also offering customizable pin configurations, dimensions, and impedance parameters to fit various headphone manufacturing lines from different brands.

Detailed Technical Specifications

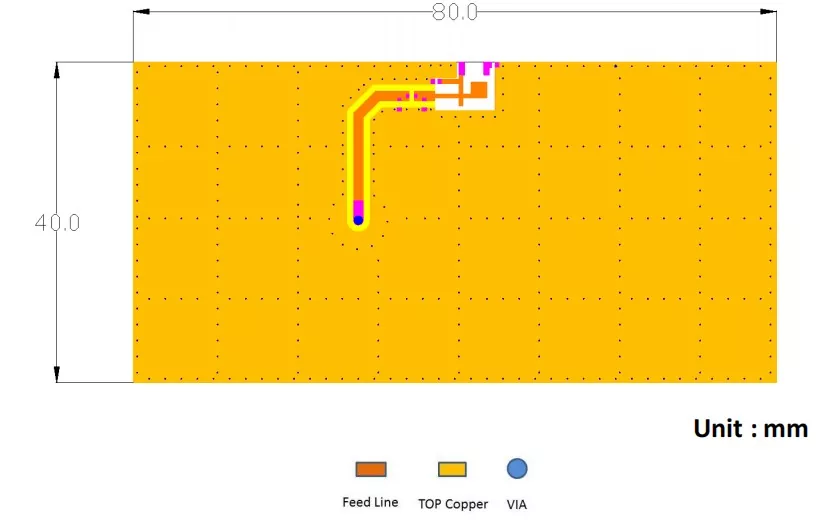

Recommended PCB Pattern Evaluation Board Dimension

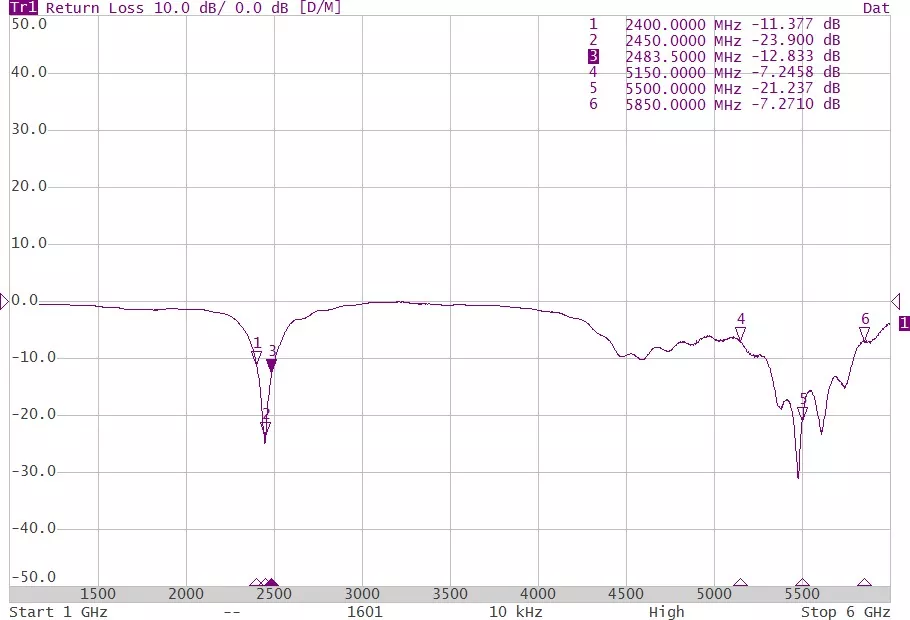

Measurement Results Return Loss

Product Advantages Compared to Competitors

Installation and Usage Guide with Illustrations

This Headphone WiFi Antenna features a standardized surface-mount design, compatible with automated SMT placement and manual soldering. It is easy to install and highly adaptable, with clear and straightforward installation instructions:

1. Preparations before installation

Clean the earphone motherboard installation area to ensure the surface is free of oil, dust, and debris. Confirm that the clearance area around the motherboard is at least 3 mm, away from metal components, batteries, and shielding covers to avoid signal interference. Prepare tools such as a constant-temperature soldering station, solder paste, and anti-static tweezers, and perform all operations with proper anti-static precautions.

2. Surface Mount Soldering Installation

Align the antenna precisely with the preset pad on the motherboard and secure it in place using an anti-static tweezers. Use a constant-temperature soldering station (with temperature controlled between 320–350°C) for manual soldering, or employ SMT automated equipment for batch mounting. After soldering, inspect the solder joints to ensure they are full, without cold soldering, missing joints, or bridging, guaranteeing stable circuit connectivity.

3. Position Fixing and Detection

Secure the antenna in an open area of the earphone housing, avoiding the metal headband and speaker unit. After installation, connect the device to perform signal testing, checking WiFi connection speed, signal strength, and latency parameters. Once no abnormalities are detected, the device can be used normally.

4. Usage Precautions

Do not bend the ceramic body of the antenna during installation, as this may damage the internal resonant structure. Avoid installing metal components around the antenna to prevent signal shielding. During normal use, keep the antenna away from high temperatures and humid environments to effectively extend its service life.

FAQ

Q1: Does this Headphone WiFi Antenna support WiFi 6?

A: Fully supported, the product is compatible with the full range of WiFi4, WiFi5, and WiFi6 protocols, offering dual-band coverage across 2.4GHz and 5GHz frequencies, meeting the high-end connectivity requirements of the latest smart wireless headphones.

Q2: Can the antenna be customized according to the earphone motherboard dimensions?

A: Supports full-dimensional customization, including size, pin type, impedance parameters, radiation angle, and frequency band compatibility. The R&D team can quickly develop solutions and produce prototypes for testing based on the customer's equipment structure.

Q3: How long is the product warranty, and how are quality issues handled?

A: All products come with a one-year warranty. Each unit undergoes full inspection before leaving the factory. In case of non-human-made quality issues, customers can enjoy free replacement or repair. For batch defects, full refunds and exchanges are available, ensuring comprehensive protection of customer rights throughout the process.

Q5: Are you a factory direct supplier, and do you support international trade orders?

A: We are a direct Headphone WiFi Antenna Factory and Manufacturer, with no intermediaries. We hold full export qualifications and have long-term experience handling global trade orders, providing complete customs clearance and certification documentation.
