Cabinet Mounted Antenna

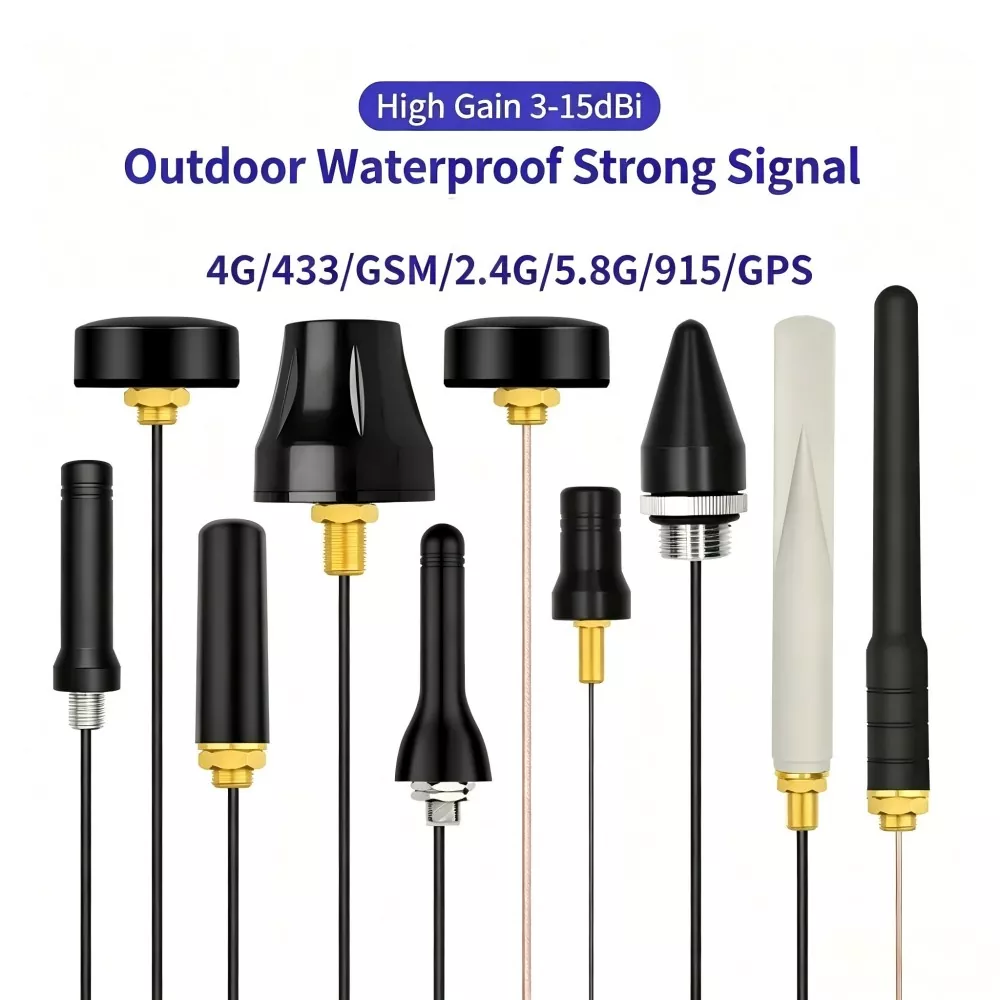

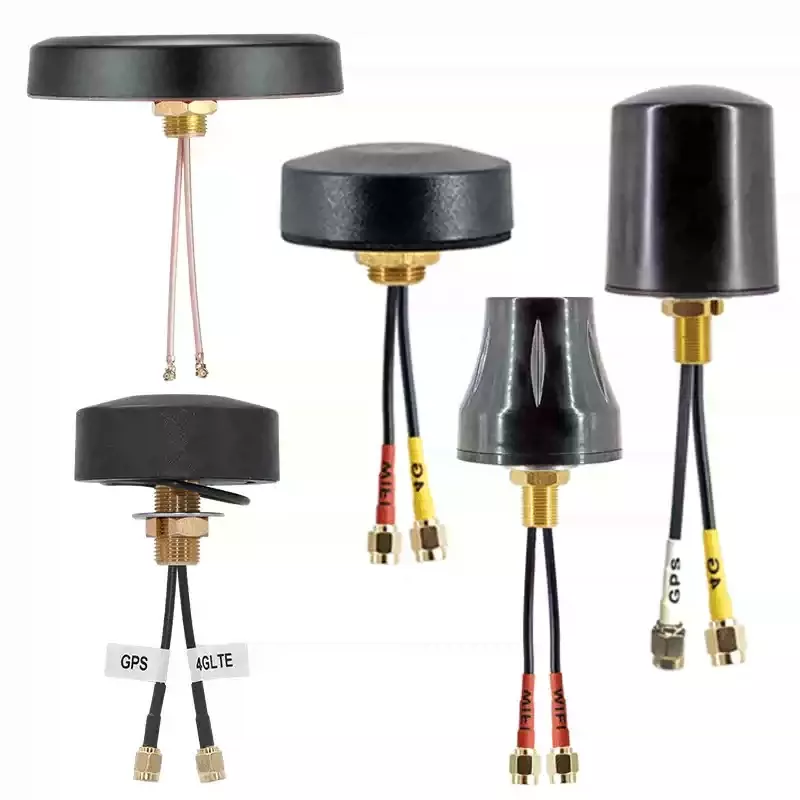

Cabinet Mounted Antenna is a built-in communication antenna specifically designed for enclosed cabinet environments. In typical industrial cabinets, server cabinets, and electrical control cabinets, the internal metal structures are densely packed, the space is confined, and electromagnetic interference is intense. As a result, conventional external antennas cannot be installed and suffer from severe signal attenuation. However, the dedicated cabinet antenna has undergone electromagnetic optimization and tuning, enabling it to stably transmit and receive wireless signals even inside tightly sealed metal enclosures. This perfectly addresses industry challenges such as weak signals, disconnections, and lagging performance in network connectivity, positioning, and data transmission for cabinet-based equipment.ProblemAs a professional manufacturer of cabinet antennas, our company's cabinet antennas cover 2.4G, 5G, and 4G.GPS,GNSS, WiFi,BTAll-frequency-band model.

How Does a Cabinet Mounted Antenna Work in a Metal Enclosure?

The working principle of a cabinet mounted antenna mainly includes four key processes:

1. Efficient Signal Reception

Qianmu Communications' customized cabinet antenna adopts a precision radiation structure with optimized antenna length and impedance matching. It accurately adapts to different frequency bands, enabling effective reception of weak signals in enclosed metal cabinet environments.

2. Signal Optimization and Loss Reduction

The built-in low-loss impedance matching circuit minimizes signal attenuation and improves transmission efficiency, reducing signal interference caused by signal reflection inside metal enclosures.

3. Anti-Interference Protection

The integrated high-frequency shielding layer helps filter electromagnetic interference generated by internal components such as power supplies, motherboards, and chips, ensuring cleaner and more stable wireless signal transmission.

4. Stable Signal Transmission

Through a standardized feedline interface, the antenna provides stable wireless signal transmission between the external environment and the device motherboard, supporting reliable network connectivity and continuous data communication.

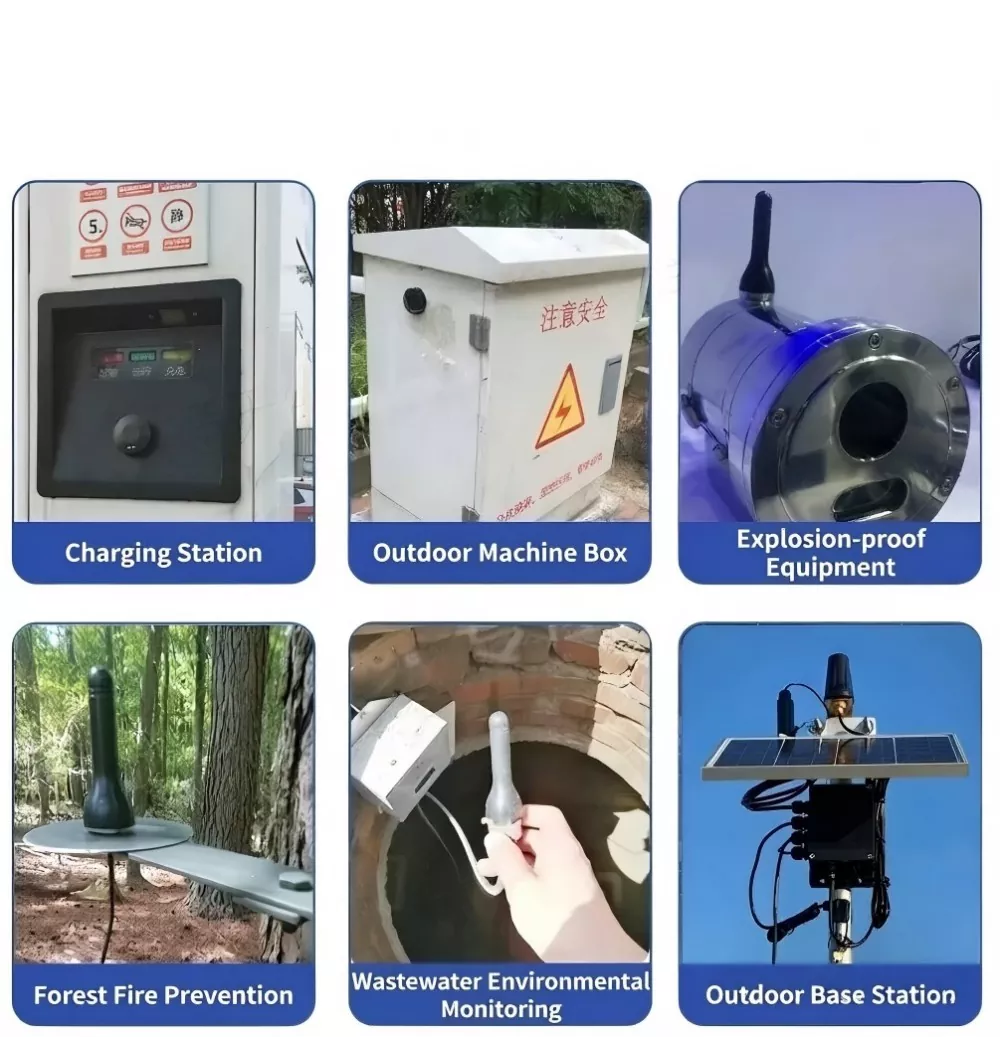

Compatibility List

Qianmu Communications is a reliable China machine cabinet mounted antenna supplier. Our products are compatible with over 98% of closed-cabinet equipment currently available on the market, providing excellent adaptability and interoperability. Main compatible applications include:

Data Center Server Cabinet

Suitable for enterprise server rooms, data centers, cloud server cabinets, and network switch cabinets. It supports wireless networking, remote monitoring, and stable equipment data transmission in server environments.

Industrial Control Cabinet

Designed for automated industrial control cabinets, PLC control cabinets, and industrial IoT control boxes. It supports wireless communication, remote debugging, and real-time data uploading for industrial equipment.

New Energy Charging Station Cabinet

Compatible with DC charging piles, AC charging piles, and outdoor charging cabinets. It supports 4G/5G networking, cloud-based billing systems, device positioning, and remote operation and maintenance.

Smart Security Cabinet

Suitable for low-voltage electrical cabinets, integrated security control cabinets, and outdoor waterproof cabinets. It enables WiFi wireless transmission, device networking, and remote monitoring applications.

Vehicle-Mounted Equipment Cabinet

Designed for vehicle-mounted industrial control cabinets and specialized equipment integration cabinets. It supports GNSS positioning, 4G all-network communication, and Bluetooth data transmission.

Smart IoT Device Cabinet

Applicable to IoT integrated cabinets, smart municipal equipment boxes, environmental monitoring cabinets, and smart agriculture control cabinets, providing reliable wireless connectivity for intelligent devices.

Product Comparison with Competitors

Common cabinet antennas on the market generally suffer from issues such as falsely advertised signal strength, failure at high temperatures, severe interference, and poor workmanship. As a veteran Cabinet Mounted Antenna Factory, our company's product has the following core differences from competing products in the same industry:

Shopping Guide

Many purchasers and engineering teams may select unsuitable cabinet mounted antennas, leading to weak signal performance or device compatibility issues. Based on years of antenna manufacturing experience, Qianmu Communications provides the following professional purchasing guidelines to help customers choose the right solution.

Select According to Device Frequency Band

Before purchasing, confirm the communication frequency band required by the device, such as 2.4G, WiFi, 4G, 5G, or GNSS. Choose it specifically designed for the target frequency range. Using an incompatible frequency model may result in signal attenuation and reduced communication performance.

Consider Available Installation Space

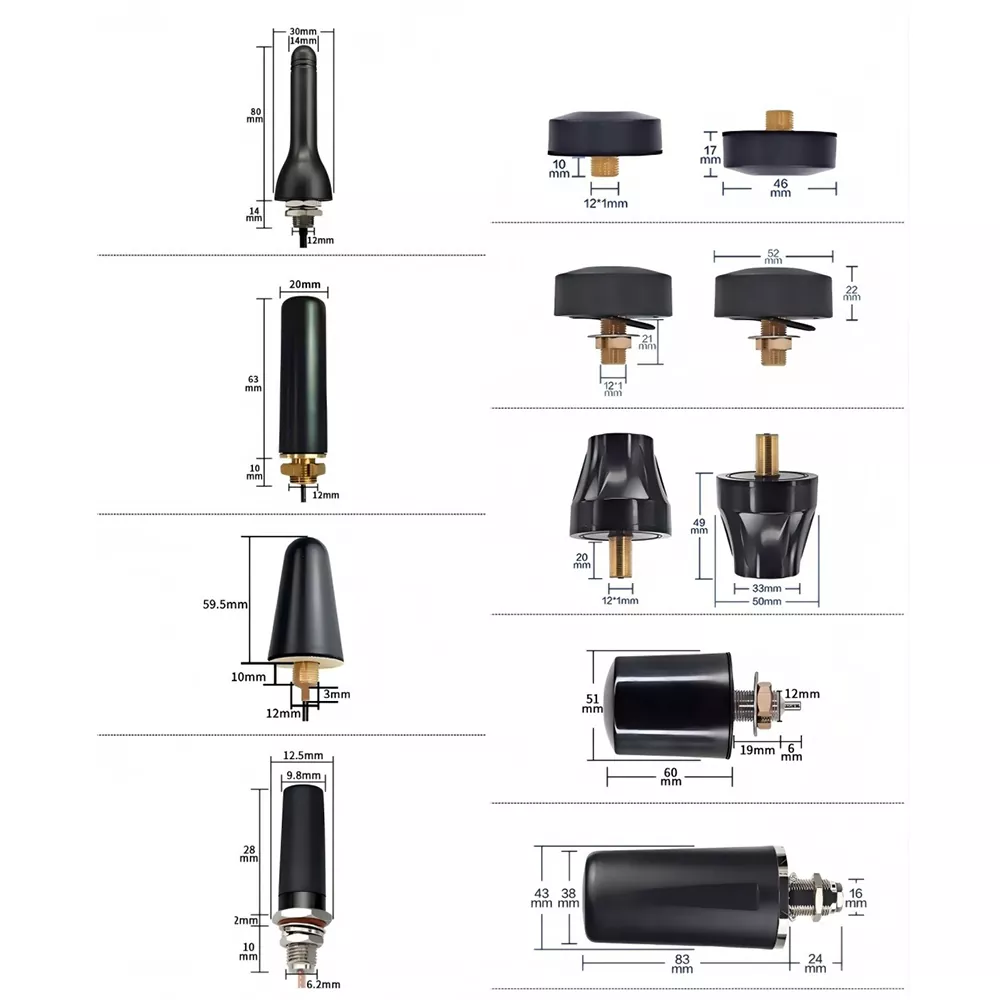

For compact or narrow cabinets, ultra-thin cabinet antenna models are recommended. For larger cabinets with sufficient installation space, high-gain antenna solutions can be selected. Matching the antenna size with the cabinet structure helps avoid installation restrictions.

Choose Based on Operating Environment

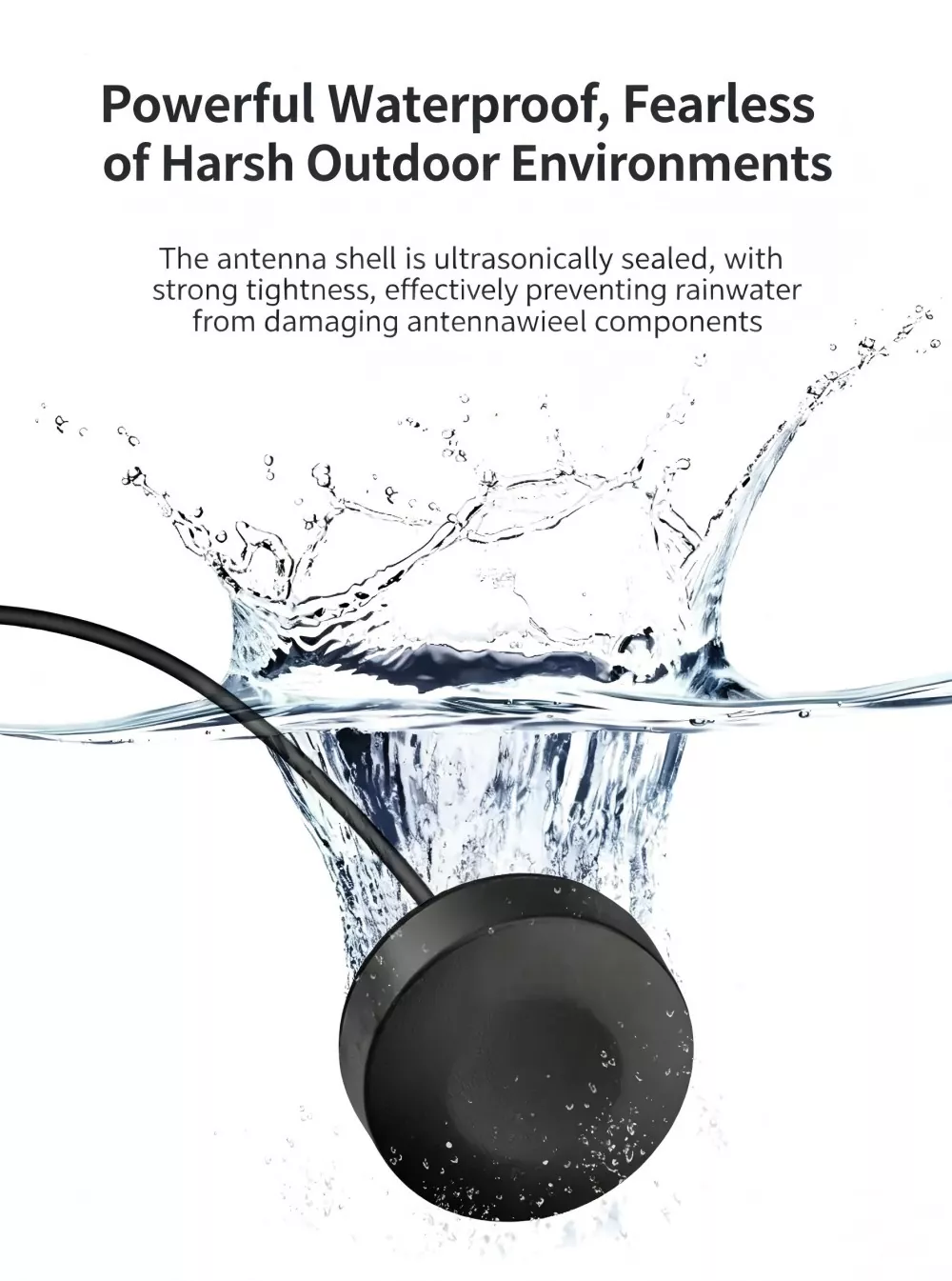

For standard indoor applications with normal temperature and humidity conditions, conventional antenna models are suitable. For outdoor installations or harsh environments involving extreme temperatures and high humidity, industrial-grade IP67 waterproof antennas with wide temperature resistance are recommended.

Match Interface Type and Cable Requirements

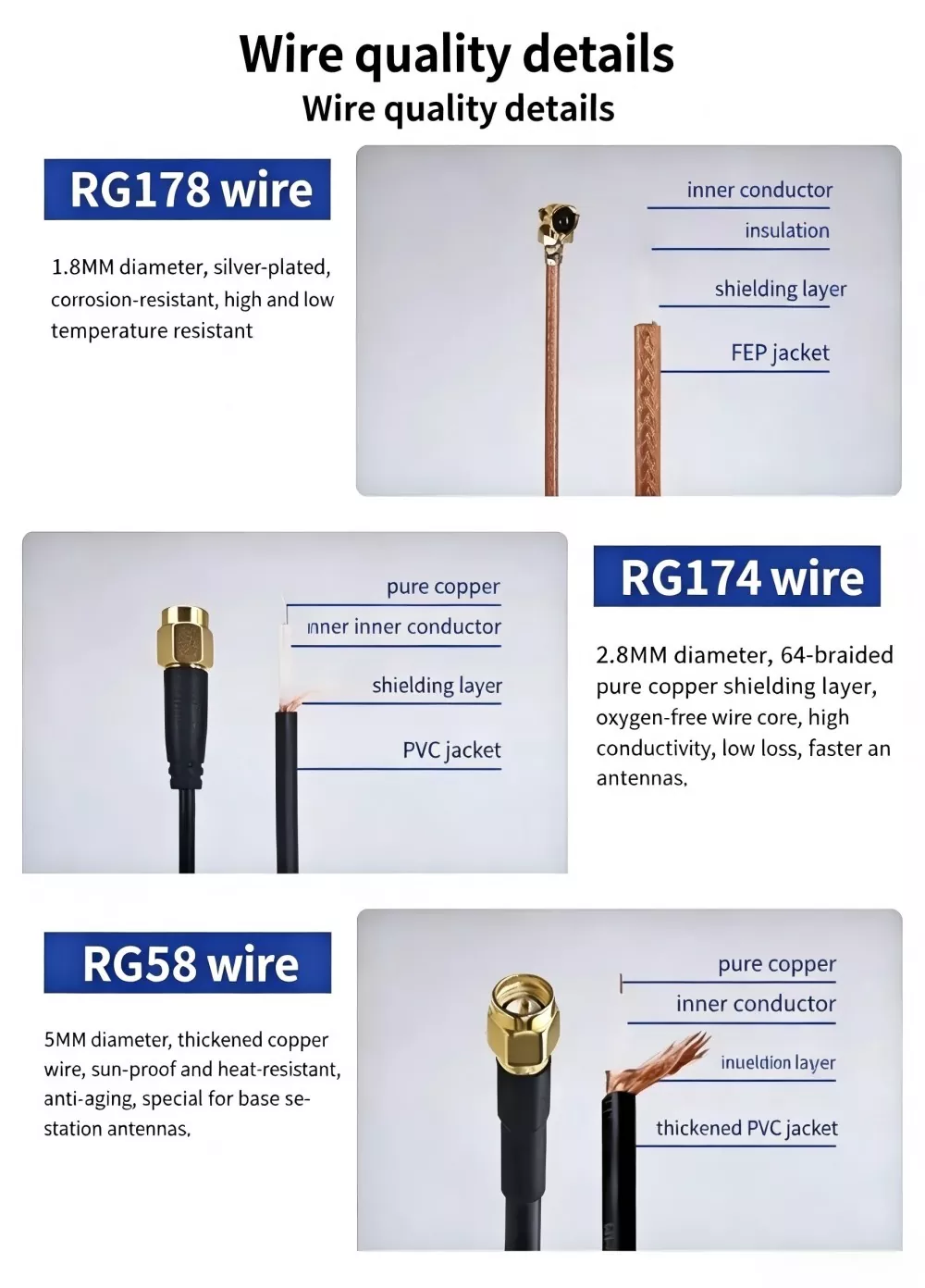

Ensure the antenna connector matches the device interface, such as SMA or IPEX. The feeder cable length should also be customized according to the internal cabinet layout and wiring distance to prevent signal loss caused by improper cable routing.

Choose a Reliable Original Factory Supplier

Selecting a professional cabinet mounted antenna supplier and experienced cabinet antenna manufacturer ensures accurate specifications, consistent product quality, and reliable after-sales support. Avoid low-quality OEM products without verified production capabilities.

FAQ

Q1: In the case of sealed metal enclosures, will the signal of a cabinet mounted antenna be severely blocked?

A1: No. Our cabinet antenna is specifically tuned for enclosed metal environments within cabinets. It features optimized impedance and radiation structures that effectively reduce signal attenuation caused by metal shielding. Based on extensive field testing, it fully meets the requirements for normal device networking, positioning, and data transmission.

Q2: Does it support custom sizes, interfaces, and frequency bands?

A2: Supported. As a manufacturer directly from the source, we can customize antenna dimensions, feeder cable lengths, connector types, gain, and frequency bands according to customer equipment parameters, cabinet space, and application scenarios, and provide free design proposals.

Q3:Are there any price discounts for bulk purchases, and what is the delivery lead time?

A4: Direct supply from the factory - no intermediaries; enjoy tiered discounts on bulk purchases. Regular in-stock items are shipped the same day; custom-made products are available upon request.7Delivery within business days; large orders can be arranged for expedited production upon coordination.

Q4:Can it be used in industrial high-temperature and low-temperature environments?

A5: Yes, it's possible. The product operates within a temperature range of -40℃ to +85℃ and is suitable for harsh environments such as industrial settings, outdoor applications, and charging stations. It features excellent resistance to high and low temperatures and aging, ensuring stable performance over the long term.
