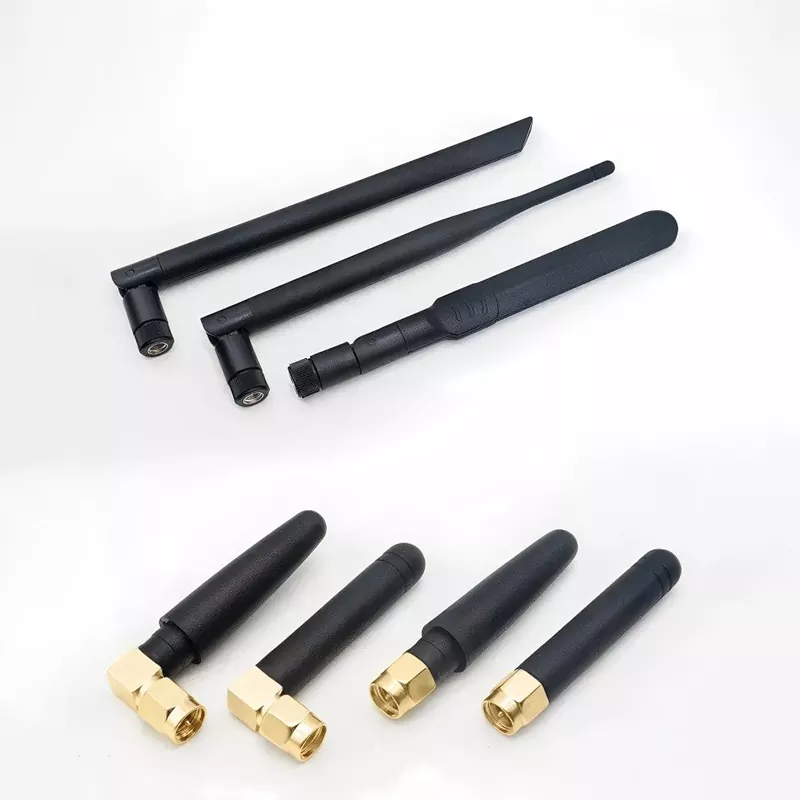

High Gain Rubber Duck Antenna for Router

The High Gain Rubber Duck Antenna for Router is an external omnidirectional RF antenna, commonly known as a whip antenna or rubber duck antenna. It is primarily used to enhance signal strength externally for devices such as wireless routers and IoT gateways. Unlike ordinary, inexpensive short antennas, our antenna features an optimized radiator structure that enables longer-range wireless signal transmission and reception. Connected via an SMA connector to the host's RF port, it serves as a key component for overcoming weak wall penetration in routers and poor long-distance communication in gateways.

Working Principle

The high gain rubber duck antenna for routers enables bidirectional signal transmission and reception by radiating electromagnetic waves through an omnidirectional radiator. The high-frequency signal from the device's mainboard RF circuit is transmitted to the SMA connector, then conducted to the internal radiator of the antenna, which radiates radio waves into the surrounding space. Conversely, wireless electromagnetic waves in the air are captured by the antenna and relayed back to the device's RF chip.

Each high-gain rubber ducky antenna for routers manufactured by Qianmu Communications undergoes impedance matching calibration in a microwave anechoic chamber, ensuring the standing wave ratio remains within an optimal range to minimize internal signal loss. In contrast, low-quality antennas often use poorly made internal elements that waste significant power within the antenna itself, resulting in very little actual signal radiation. This antenna design reduces internal losses, converting more RF power into effective wireless signals transmitted through the air.

Which devices are compatible

This antenna interface standard is SMA male (custom SMA female or RP-SMA also available), compatible with most wireless devices equipped with external antenna connectors:

• Home & Commercial Wireless Routers, Dual-Band WiFi Routers, WiFi 6 Routers

• 4G/5G industrial gateways, DTU data transmission modules, CPE portable broadband devices

• Wireless AP, repeater, signal amplifier

• Industrial wireless data transmission, PLC wireless communication terminal

• Bluetooth and Zigbee IoT gateway

• Monitoring NVR wireless host, outdoor wireless bridge equipment

Product Core

Dual-band compatible, 2.4G + 5.8G universal

High Gain Rubber Duck Antenna for Router, optimized for common WiFi dual-band usage—2.4GHz handles long-range wall penetration, while 5.8GHz supports high-speed data transmission. A single antenna covers both bands, eliminating the need to configure two separate antennas.

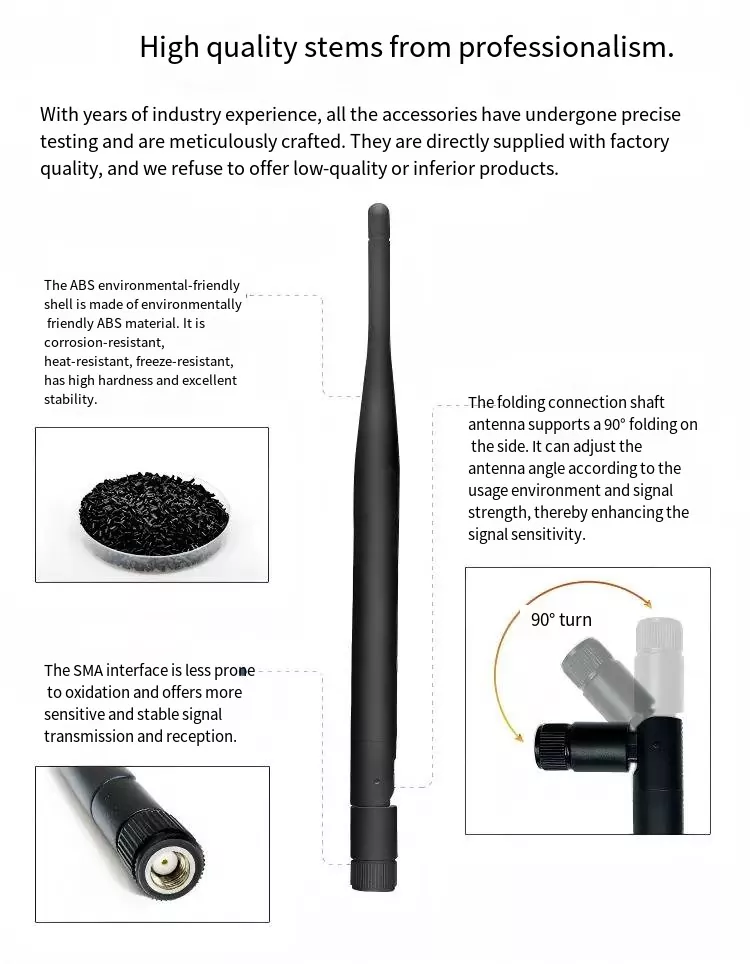

90-degree foldable hinge design

The antenna features a metal hinge at its base, allowing free rotation from 0 to 90 degrees. When the router is placed in a cabinet corner or a tight electrical enclosure, you can bend the antenna to adjust its direction, avoiding obstructions such as walls and metal enclosures, and flexibly find the optimal signal angle. The hinge has undergone thousands of swing tests and will not loosen or slip.

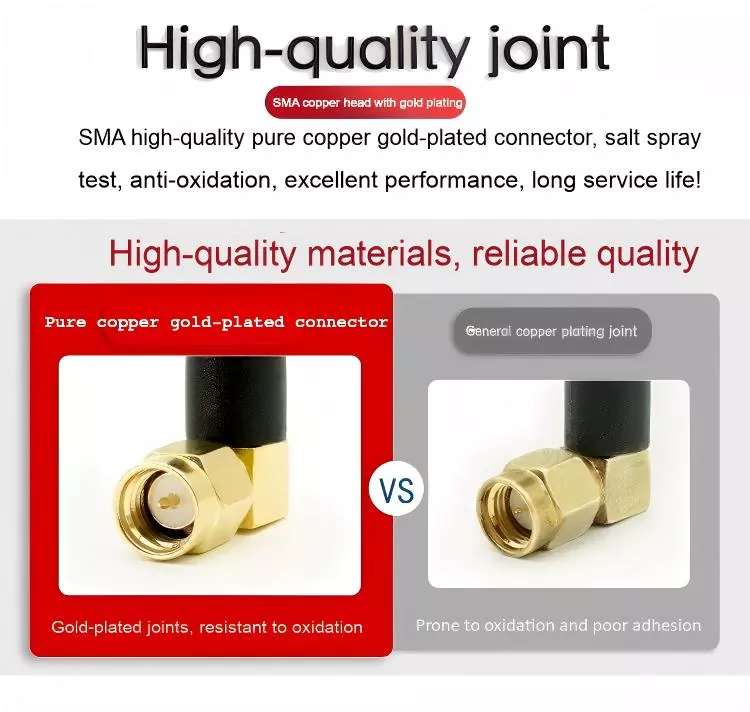

SMA gold-plated pure copper connector

The connector body is made of brass with a gold-plated surface. Compared to standard copper-plated connectors, it offers superior resistance to salt spray and oxidation, preventing green copper corrosion over long-term use. This ensures stable RF contact without intermittent disconnections or fluctuating internet speeds. It can be used reliably in coastal areas and humid industrial environments.

ABS anti-aging glue stick casing

The outer layer is made of new eco-friendly ABS plastic, resistant to extreme temperatures and will not crack, become brittle, or yellow in environments ranging from -40°C to +75°C. Suitable for outdoor equipment and open-air cabinet installations, it withstands prolonged sun exposure and temperature fluctuations.

Omnidirectional radiation, installation with no directional pressure

It is an omnidirectional antenna that does not require precise alignment; it can be placed at any angle and transmit or receive signals in all directions, ensuring no installation errors even when assembled by ordinary workers.

Factory full inspection before shipment, customization available

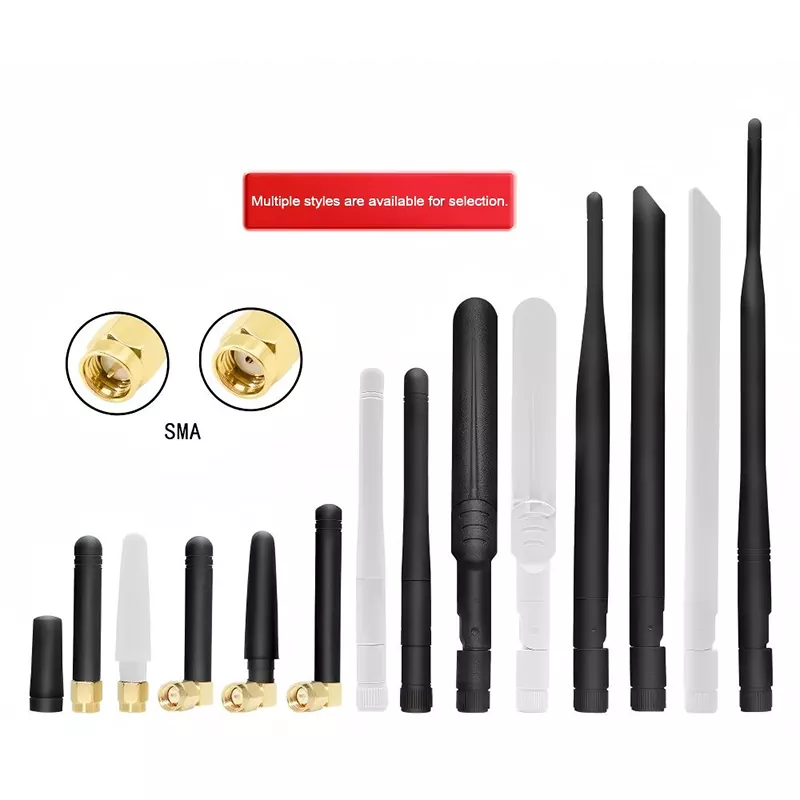

As a China manufacturer, every batch of rod antennas is 100% tested with a network analyzer. Customization is available for length, connector type, gain parameters, and black/white housing color, supporting both small sample orders and large production runs.

Technical Specifications

Why Choose Us

As a China manufacturer, supplier, and factory specializing in High Gain Rubber Duck Antennas for Routers, Shenzhen Qianmu Communication Technology Co., Ltd. offers the following advantages:

Direct from the factory, no middlemen markup—bulk purchases offer price advantages, and free sample testing is available.

2. RF technical support is provided as part of the package; when customers experience poor signal performance, engineers can assist in analyzing system integration issues, offering more than just product supply.

3. Flexible customization: Antenna length, color, connector type, and gain parameters can all be adjusted, supporting OEM branding.

4. Rigorous reliability testing, with full inspection of all antenna RF performance before shipment and strict control over defect rates.

5. Extensive export experience, familiar with overseas market certification requirements, supporting FOB and EXW trade terms, and providing customs clearance documentation.

6. Guaranteed delivery: standard models are available in large quantities with ready stock, while custom orders have clear production schedules and timely progress updates.

FAQ

Q1: High Gain Rubber Duck Antenna for Router—does a higher dBi number mean a stronger signal?

A: Not entirely. The gain should match the overall RF power of the device. Blindly choosing ultra-high gain antennas may actually degrade performance if the antenna matching is poor. For home routers, 5dBi rubber duck antennas generally offer the best overall performance. You can discuss your specific equipment model with us to select the appropriate type.

Q2: My router has an RP-SMA reverse polarity connector. Can I use this high-gain rubber duck antenna with it?

A: The default is SMA male connector in stock. Our factory can customize RP-SMA reverse polarity connectors; just specify the connector type when placing your order.

Q3: Can the glue stick antenna be used outdoors in open areas for a long time?

A: This ABS casing is suitable for short-term outdoor use; if you require long-term exposure to sun and rain, please consult us about our outdoor waterproof version of the adhesive rod antenna.

Q4: Can I get samples for testing? What is the minimum order quantity?

A: Sample testing is supported, with no minimum order quantity required for in-stock items; custom modifications will have corresponding minimum order quantities.

Q5: Why hasn't the WiFi improved after installing the antenna?

A: The antenna only enhances signal reception capability. If the router's RF hardware is faulty or its placement is completely blocked by heavy metal, performance will be limited. As a manufacturer, we can assist in troubleshooting issues related to system compatibility.
