2G/3G/4G LTE Antenna

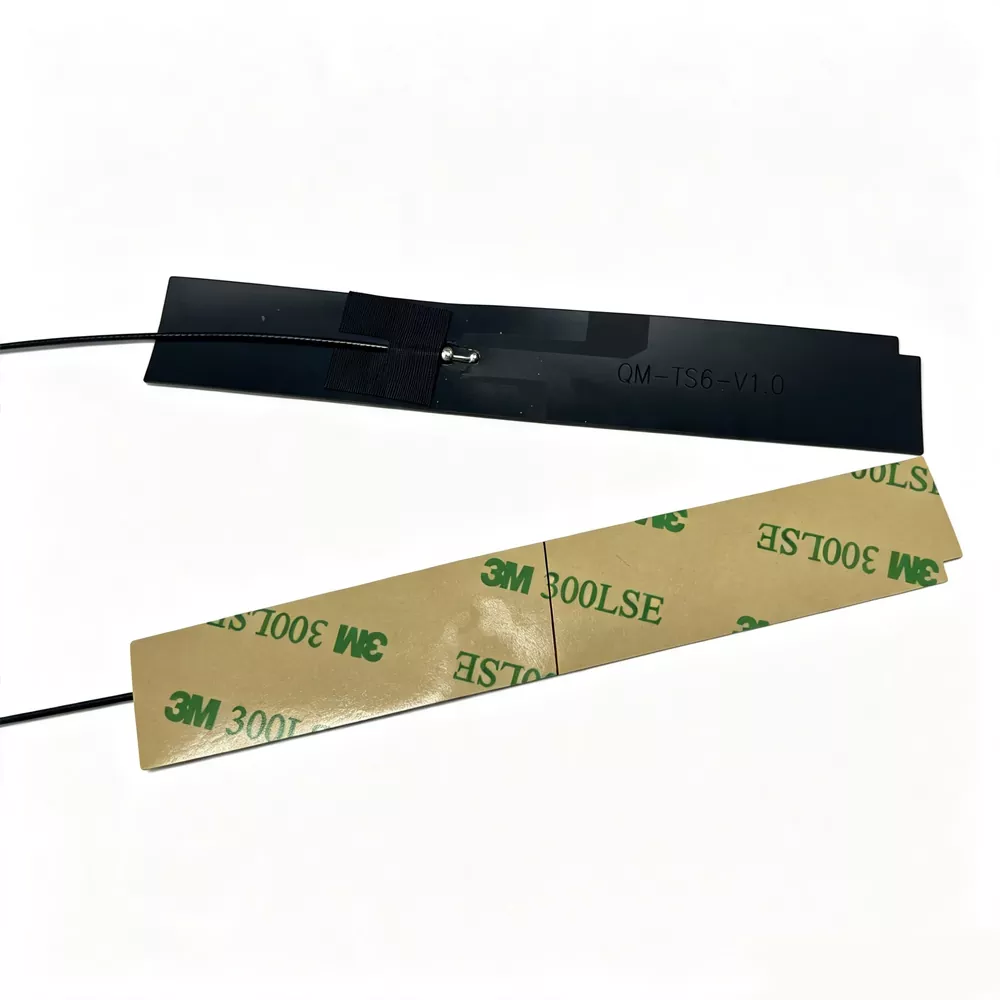

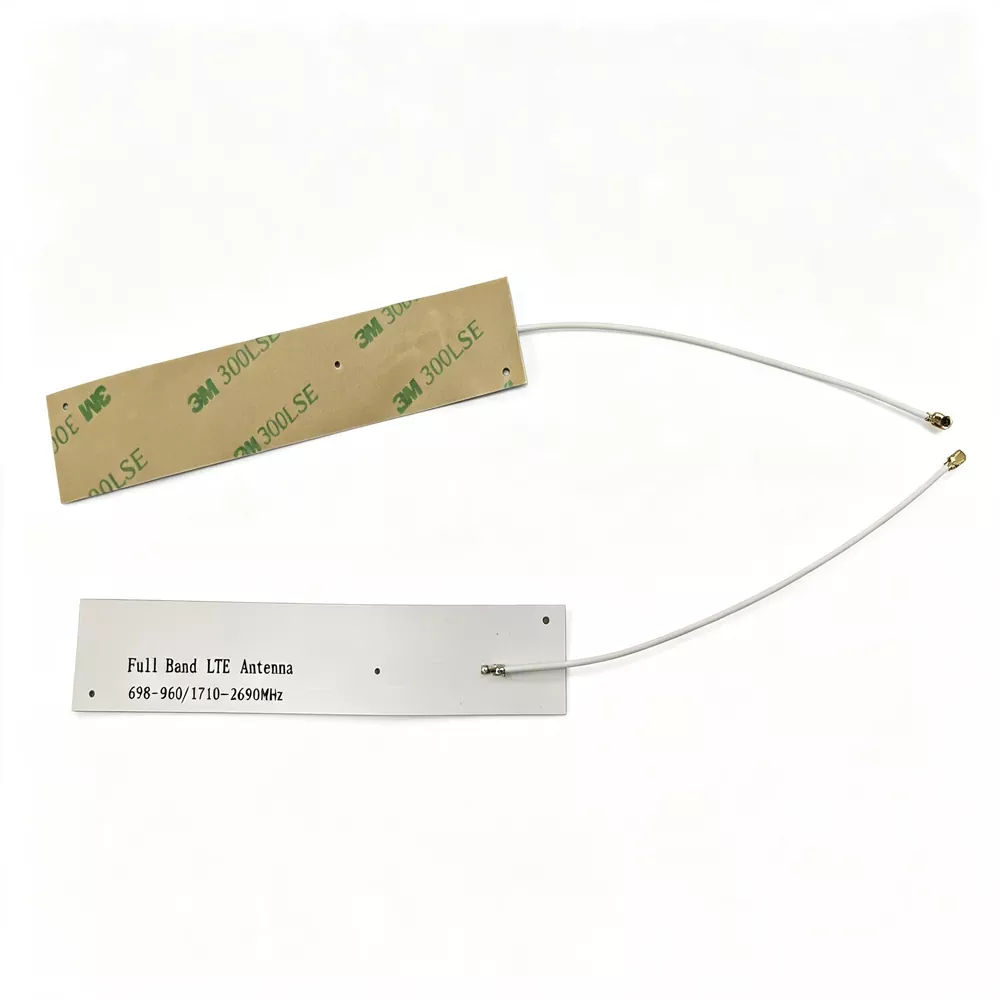

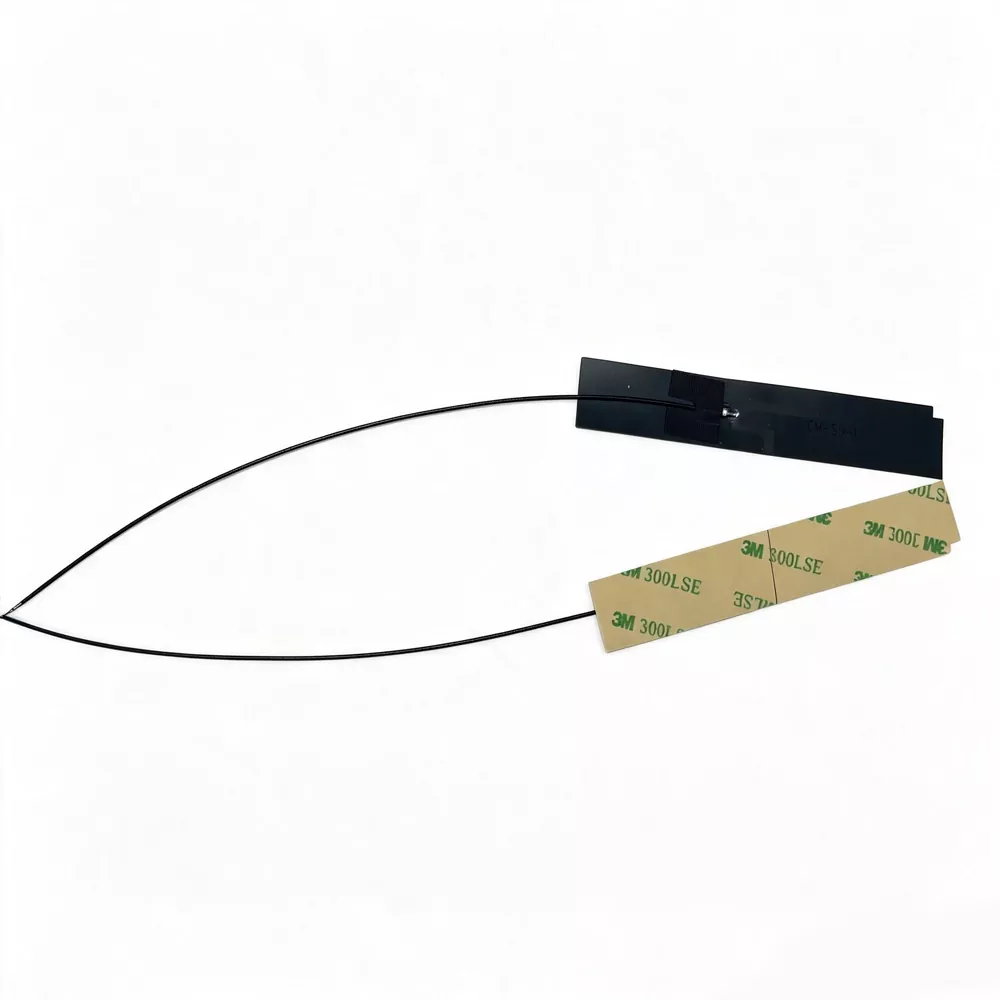

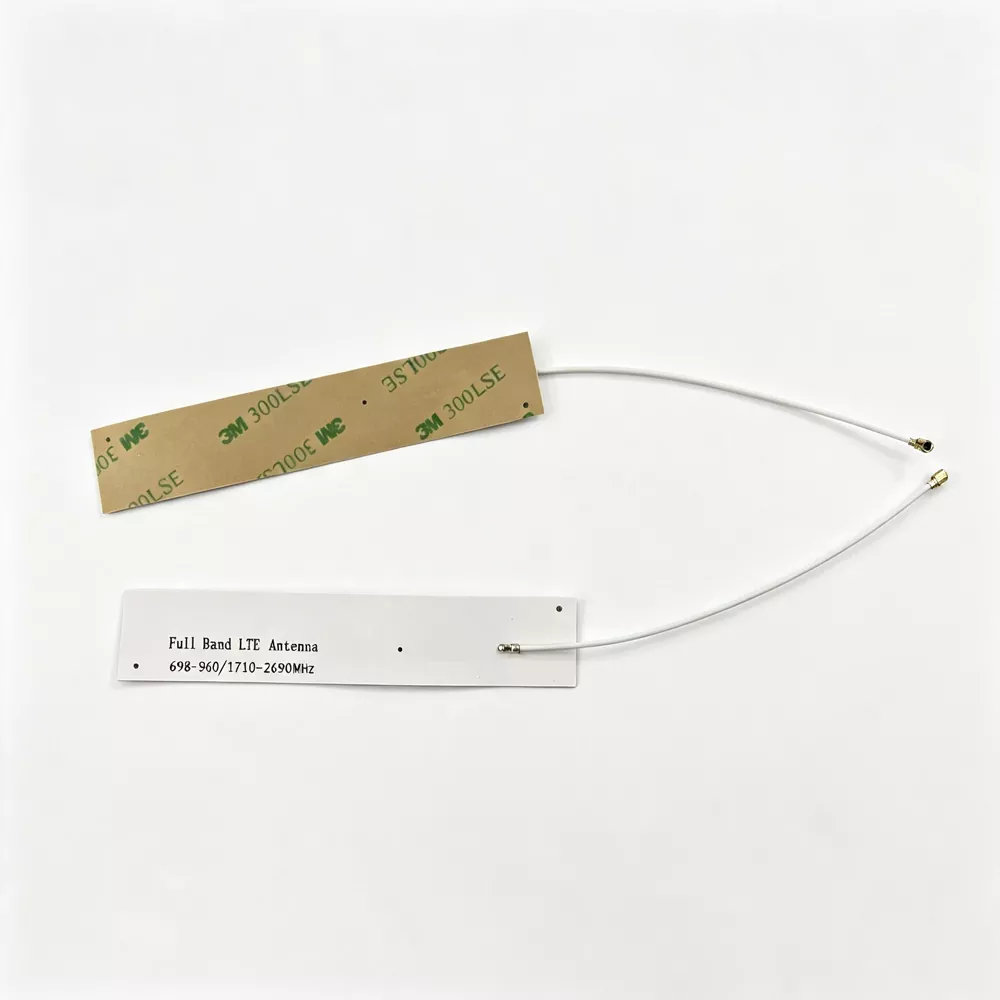

The 2G/3G/4G LTE antenna is a lightweight, flexible and bendable built-in full-band cellular communication antenna. Unlike the common surface mount antenna, this product uses FPC flexible circuit board + coaxial direct soldering process. The antenna is light, thin, soft and can fit freely into the curved surface and narrow slot space inside the device. It supports 2G GSM, 3G WCDMA and 4G LTE multi-network signal transmission and reception. It is the preferred type of built-in communication antenna for small smart iot devices at present, widely solving industry pain points such as small built-in space, weak signal, unstable contact and poor vibration resistance of the device.

Principle of operation

This 2G/3G/4G LTE antenna FPC welded coaxial antenna works based on the radio frequency principle of flexible microstrip oscillator array and transmits signals with coaxial shielded feeders. It is divided into three parts: signal radiation layer, insulating substrate layer, and shielded transmission layer. The working logic is stable and efficient:

• Rf radiation principle: FPC board surface precisely etches multi-band oscillator lines, precisely matches 2G/3G/4G full band resonance points, no band dead zones, measured full band standing wave ratio is stable ≤1.5, signal reflection loss is extremely low.

• Advantages of welded transmission: The coaxial line and the FPC oscillator plate are formed in one piece by high-temperature tin soldering. Compared with the common riveted and clamped structure, the measured seismic performance is improved by 85%, and there is zero contact shedding and zero signal disconnection in the long-term vibration environment.

• Shielding anti-interference mechanism: The RG1.13 coaxial line double-layer shielding structure effectively isolates the electromagnetic noise from the CPU, power supply, and chip of the main board of the equipment. Measured in the internal interference environment of the equipment, the signal reception sensitivity is increased by 3-5 dB.

• Omnidirectional radiation characteristics: Planar omnidirectional transmission and reception design can maintain stable signal output in scenarios where the device's enclosed shell and metal casing are blocked, and the success rate of iot device outdoor networking has been measured to increase by 28%.

Installation and Usage Guide

This FPC antenna is built-in embedded installation, easy to operate, suitable for mass production assembly, and does not require professional debugging. The steps are as follows:

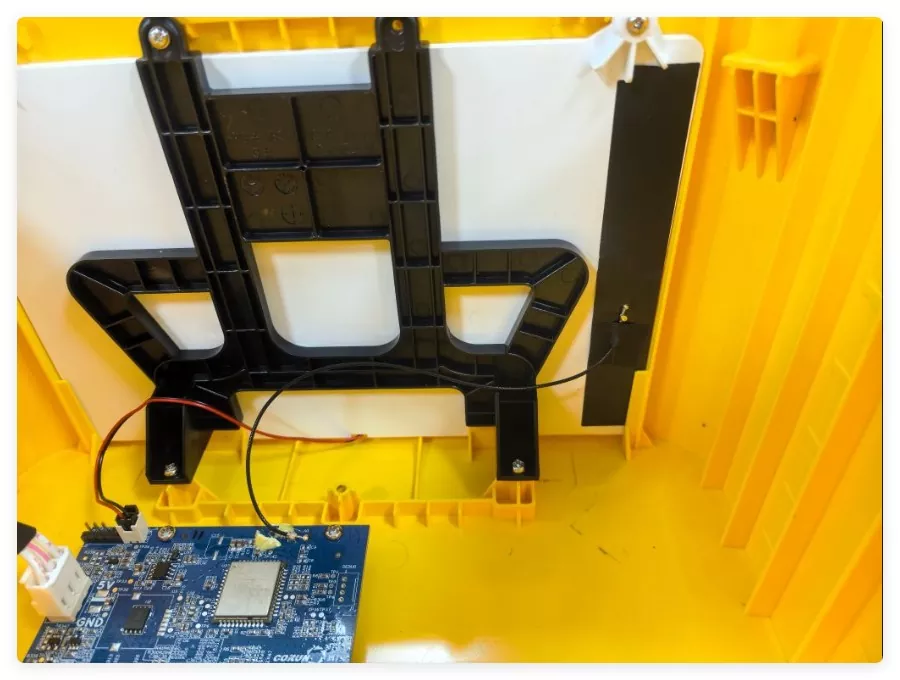

1. Location selection: Choose an open area inside the device, away from the motherboard chip, power supply, and metal casing to avoid signal blocking and interference.

2. Fit and fix: The back of the antenna comes with high-strength 3M adhesive. After cleaning the dust and oil stains on the inner wall of the device, fit it flat and firmly, and bend it as needed to fit the curved surface of the device.

3. Interface docking: Precisely connect the IPEX/SMA interface at the rear to the device module antenna socket and gently fasten it to avoid violent pulling of the wire.

4. Wire organization: Excess wires should be neatly stored to avoid squeezing, bending or dead folds, and to prevent damage to the shielding layer that may affect the signal.

5. Power-on test: After assembly is completed, power on and connect to the network to test that all 2G/3G/4G network signals receive normally, and then mass production is possible.

FAQ

Q1: Can this 2G/3G/4G LTE antenna FPC welded coaxial antenna be bent for use?

A1: Yes. The product is made of flexible FPC base material, which can be bent freely and fitted to curved surfaces. It fits the small built-in space of the device and will not break or affect signal performance when bent normally.

Q2: Do you support custom cable lengths and interface types?

A2: Fully supported. As a source Factory, customizable line lengths ranging from 10cm to 50cm, replaceable interfaces such as SMA, BNC, IPEX, LOGO silk-screen and size fine-tuning are supported.

Q3: What are the advantages of the soldering process over the ordinary pasted antenna?

A3: Coaxial line welding in one piece, no loose gap, stronger shock resistance, tensile resistance, anti-aging performance, completely solves the problems of equipment vibration, signal flicker and poor contact in high-temperature environment, more suitable for harsh industrial and vehicle scenarios.
