Metal Stamp Antenna

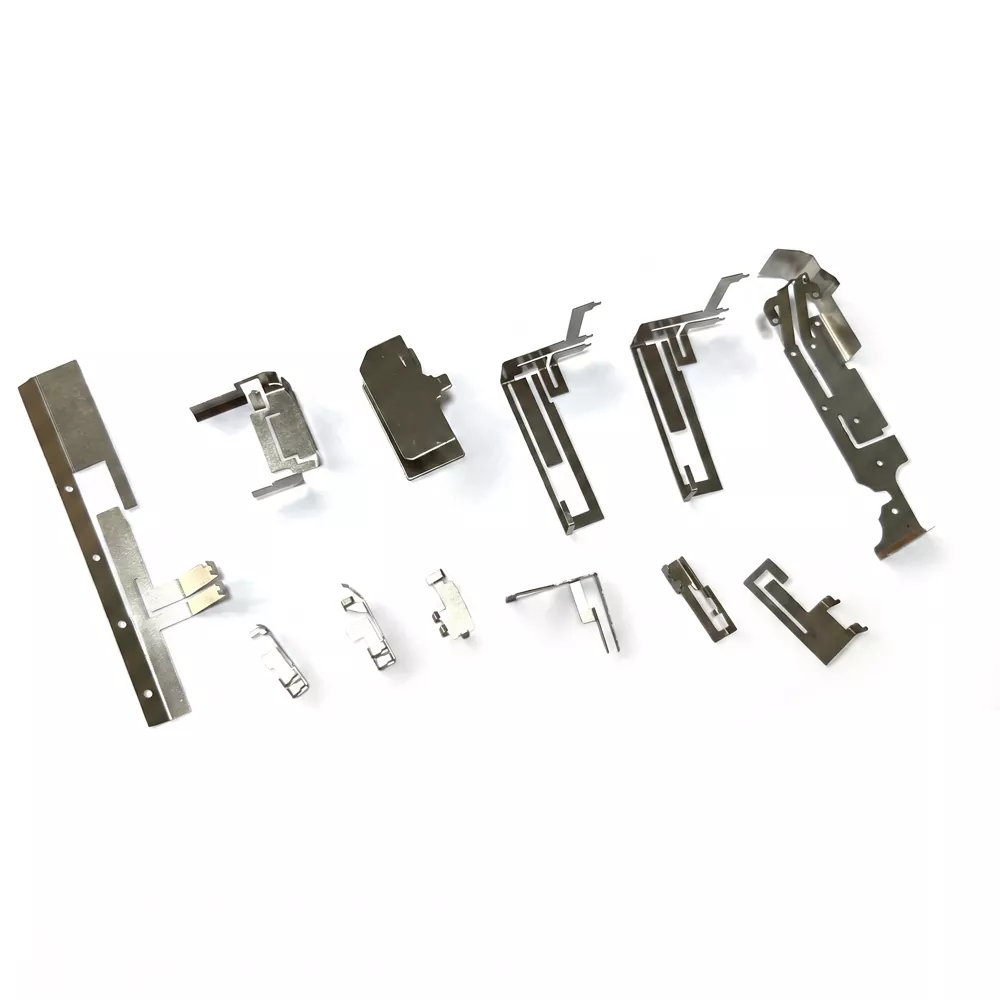

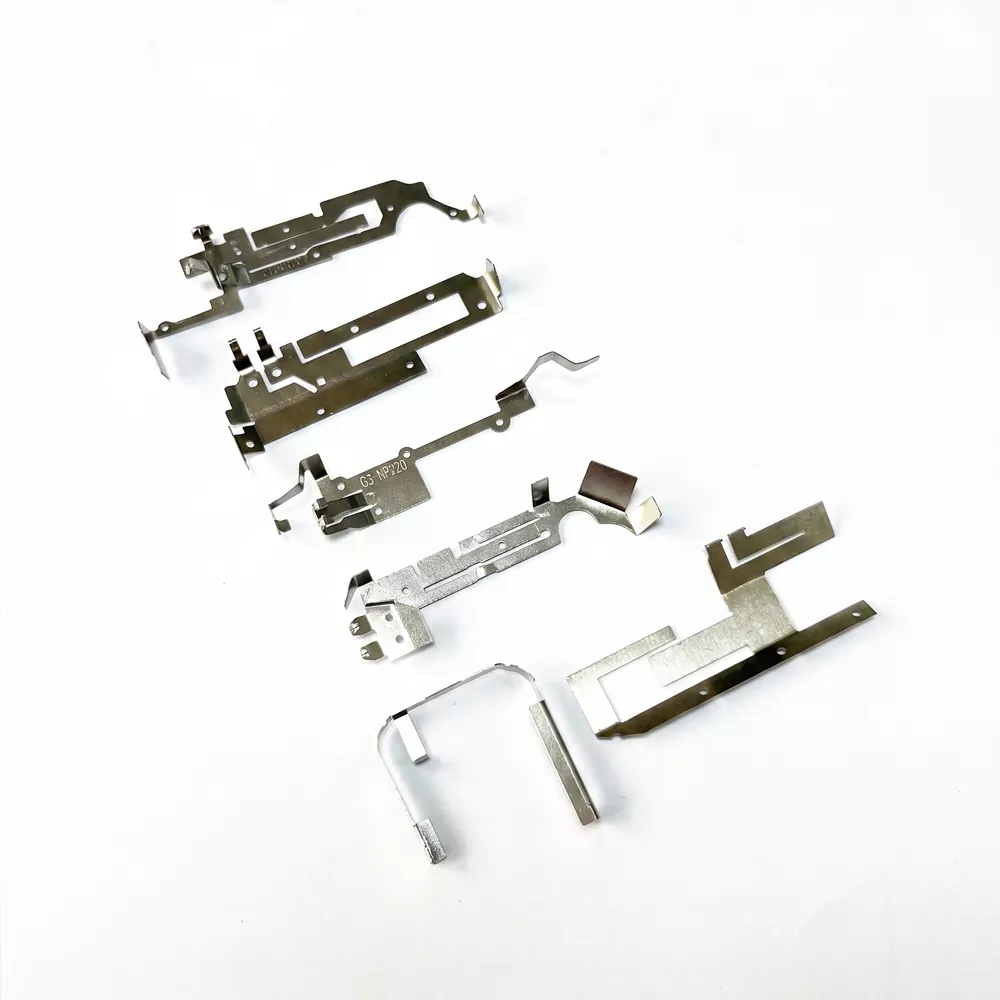

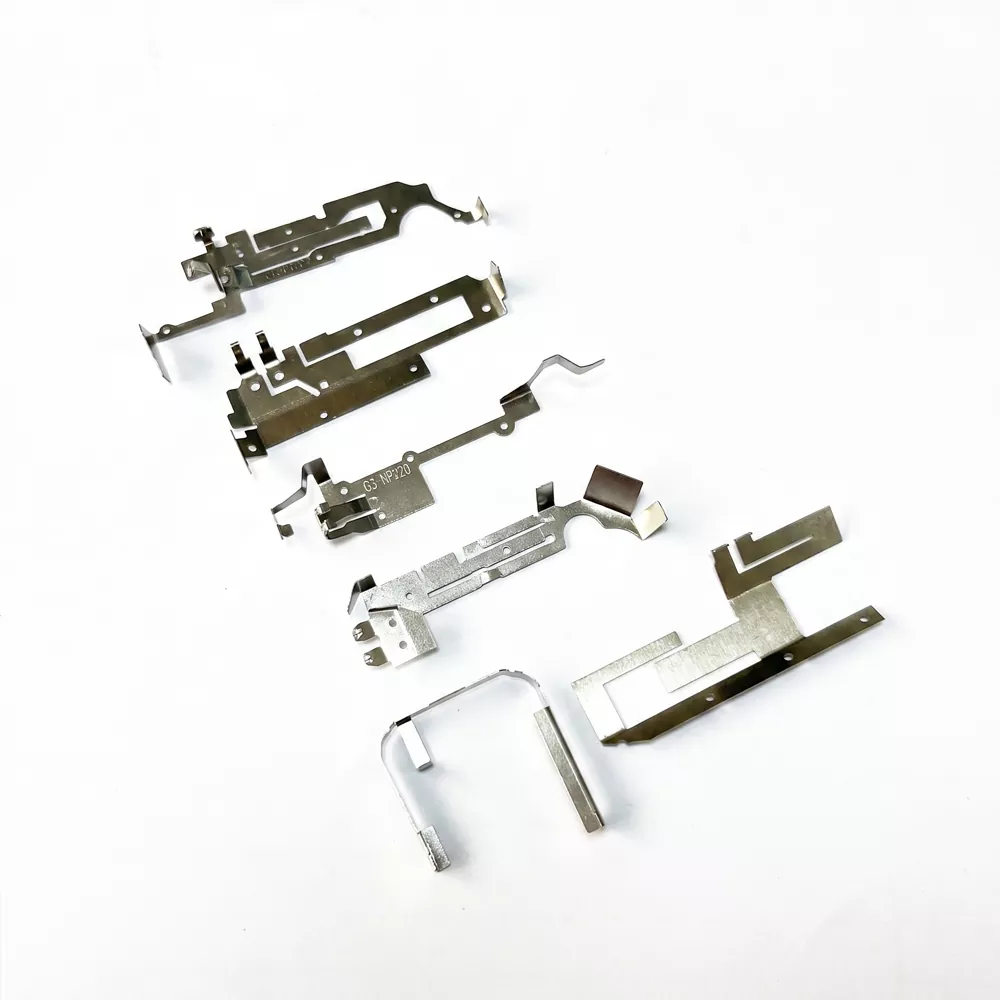

A Metal Stamp Antenna is an RF component manufactured from ultra-thin stainless steel (such as SUS301 or SUS304) or copper alloy using a precision stamping process. Typically less than 1 mm in thickness, it is designed to conform closely to curved or irregular device surfaces, making it suitable for compact electronic products.

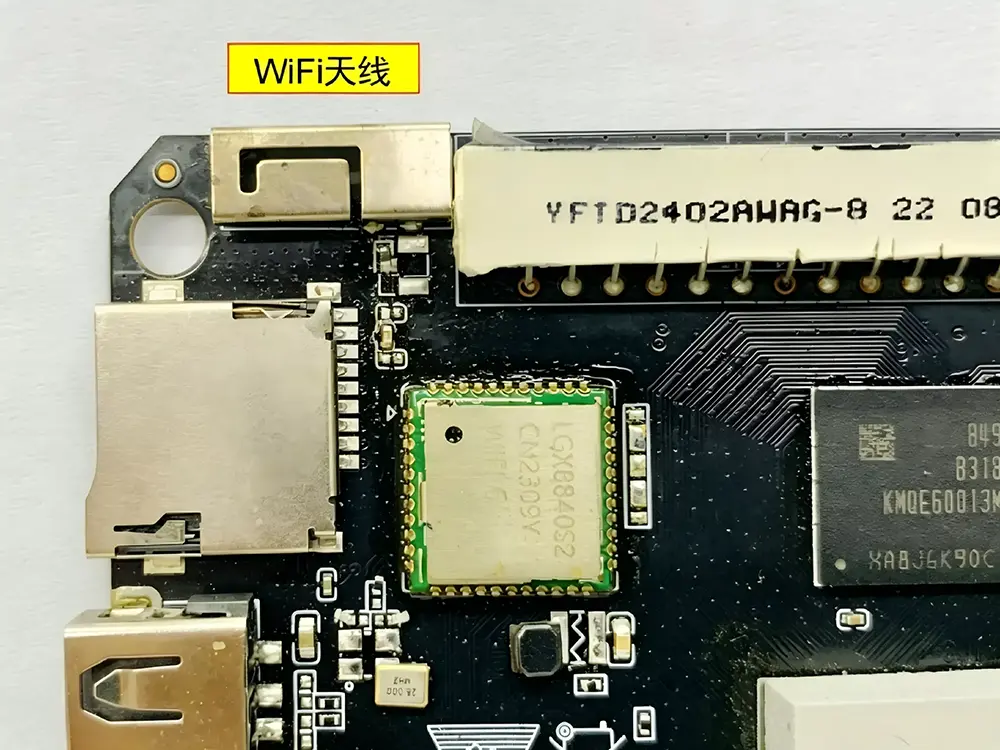

This antenna operates through electromagnetic resonance generated by its carefully designed metal geometry. During installation, the bottom contact points are pressed onto PCB antenna terminals, forming a reliable electrical connection without soldering. The spring contact structure ensures stable signal transmission while absorbing mechanical stress through elastic deformation, supporting long-term durability under repeated assembly and vibration conditions.

Core Technical Specifications

The Metal Stamp Antenna is designed for compact RF applications with controlled impedance and stable mechanical contact performance.

Standardized Test Conditions

To ensure data consistency, all RF and mechanical parameters are measured under the following standardized conditions:

Impedance & VSWR Measurement

Tested using a calibrated Vector Network Analyzer (VNA) with a 50Ω reference system.

RF Performance Environment

Measurements performed in a free-space or semi-anechoic environment with a standard reference ground plane.

Mechanical Contact Test

Antenna is mounted on a standard PCB pad layout with defined contact height and controlled press force.

Frequency Measurement Condition

Center frequency evaluated after installation in a representative device enclosure to account for detuning effects.

Temperature Test Condition

Thermal cycling conducted from -40℃ to +85℃ under continuous electrical monitoring.

Applicable Devices and Application Scenarios

Key Selling Point: Why Choose a Hardware Spring Antenna?

Space-Efficient Design

Its low-profile structure can conform to curved or irregular surfaces, helping maximize internal space for batteries and other components.

Cost-Effective Assembly

The press-fit connection to PCB contacts eliminates soldering processes, reducing assembly time and manufacturing cost in mass production.

Mechanical Durability

The elastic contact structure maintains stable electrical performance under vibration, shock, and repeated mechanical stress.

Accurate Positioning Design

Stamped alignment holes (round and slotted) ensure precise positioning between the antenna feed point and PCB during automated assembly.

Installation Guide and Engineering Recommendations

The following installation guidelines are provided by Shenzhen Qianmu Communication Technology Co., Ltd. to ensure optimal performance of the Metal Stamp Antenna in system-level applications.

1. Positioning Design

Design at least two alignment holes on the antenna structure: one circular hole for primary positioning and one elongated hole for secondary alignment. The spacing should be sufficient to ensure mechanical stability during assembly.

2. Clearance Requirements

Keep the radiating element free from surrounding metal components and conductive materials. A proper clearance zone should be maintained to minimize detuning effects caused by nearby structures. Adhesive fixation can be used for stable mounting.

3. Contact Pressure Control

The contact force between the spring terminal and the PCB feed pad should be controlled within the specified mechanical range. Insufficient pressure may affect RF contact stability, while excessive pressure may lead to permanent deformation of the contact structure.

4. System-Level Tuning

After assembly into the final device, antenna performance may shift due to coupling with the enclosure and surrounding components. Final tuning using a vector network analyzer (VNA) is recommended to ensure resonance accuracy at system level.

How to Choose the Right Hardware Spring Antenna?

When selecting a Metal Stamp Antenna, evaluation should be based on the following key design factors:

Available Device Space

Measure the internal space of the enclosure and select an antenna with appropriate length, width, and thickness to ensure proper mechanical fit.

Operating Frequency and Bandwidth

Define the target communication band (e.g., WiFi, Bluetooth, or sub-GHz IoT bands). For narrow-band designs, antenna performance can be fine-tuned through structural adjustment during development.

Application Environment

For automotive, outdoor, or industrial use, material selection such as SUS304 and surface plating is recommended to improve corrosion resistance and temperature stability.

PCB and Assembly Design

Ensure correct alignment of the feed point on the PCB. Choose a suitable mounting structure (press-fit or spring contact design) to improve assembly consistency and mass production yield.

Why Choose Shenzhen Qianmu Communication Technology Co., Ltd.

Shenzhen Qianmu Communication Technology Co., Ltd. focuses on the design and production of Metal Stamp Antenna solutions for wireless devices, supporting OEM/ODM development and customized antenna structures for different RF applications.

In-House Manufacturing Capability

Precision stamping and tooling are controlled internally, ensuring stable production consistency and scalable output.

Application-Driven Customization

Antenna structures can be adjusted in geometry, elasticity, and surface treatment to match different device and enclosure requirements.

Process-Level Quality Control

Mechanical reliability and RF performance are verified throughout production, including contact stability and electrical consistency checks.

Engineering Support During Development

Technical assistance is available from prototyping to mass production, including integration guidance at PCB and system level.

FAQ

Q1: How is the signal efficiency of the metal clip antenna?

A: Due to its compact size, efficiency typically ranges from 30% to 50%. It is suitable for short-range and cost-sensitive applications such as smart home devices. For long-range requirements, Qianmu Communications also provides optimized antenna solutions.

Q2: What should I do if the soldering lug is pressed onto the PCB and the contact is poor?

A: Ensure correct PCB pad height and proper fixture pressure during assembly. The spring structure is designed for stable contact, and standard testing is performed before shipment.

Q3: Do you support small-batch sampling?

A: Fully supportive. As a professional Metal Stamp Antenna supplier, we understand the requirements during the R&D phase and offer flexible prototyping services to help you quickly advance your project validation.

Q4: What affects the performance of a Metal Stamp Antenna?

 A: Performance is mainly affected by PCB layout, ground size, surrounding metal, and enclosure structure.

Q5: Why does frequency shift after installation?

A: Metal surroundings and housing materials can detune resonance, requiring final system-level tuning.

Q6: What causes poor contact performance?

A: Incorrect PCB pad height or insufficient spring pressure may affect electrical stability.

Q7: Do you support prototyping? A: Yes, both sample production and small-batch customization are supported for R&D validation.
