PIFA Antenna

What is a PIFA antenna

PIFA antennas, also known as planar inverted-F antennas, are one of the most widely used built-in radiation antenna structures in consumer electronics and IoT devices. They are low-profile, miniaturized RF antennas designed for enclosed applications.

Compared with ordinary ceramic antennas, wire antennas, and PCB antennas, the main advantage is their ability to maintain stable resonance in metal housings, plastic sealed structures, and limited internal spaces, with strong resistance to shielding attenuation.

Our mass-produced products are divided into two mainstream structures:

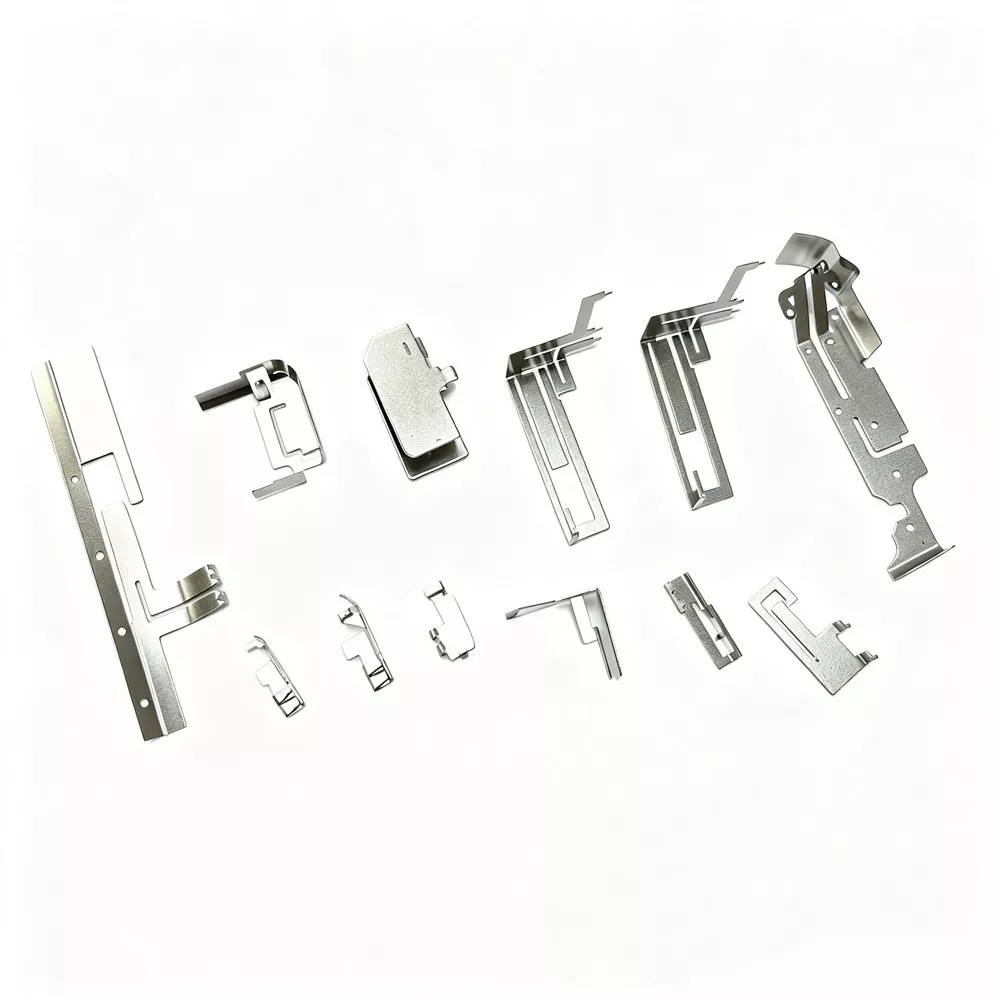

1. Spring PIFA antenna

The stainless steel/phosphor bronze spring is formed by one-piece stamping, with high hardness, good resilience, shock resistance, suitable for vehicle-mounted, industrial control, sports equipment, does not loosen or oxidize in long-term contact, suitable for standardized mass production.

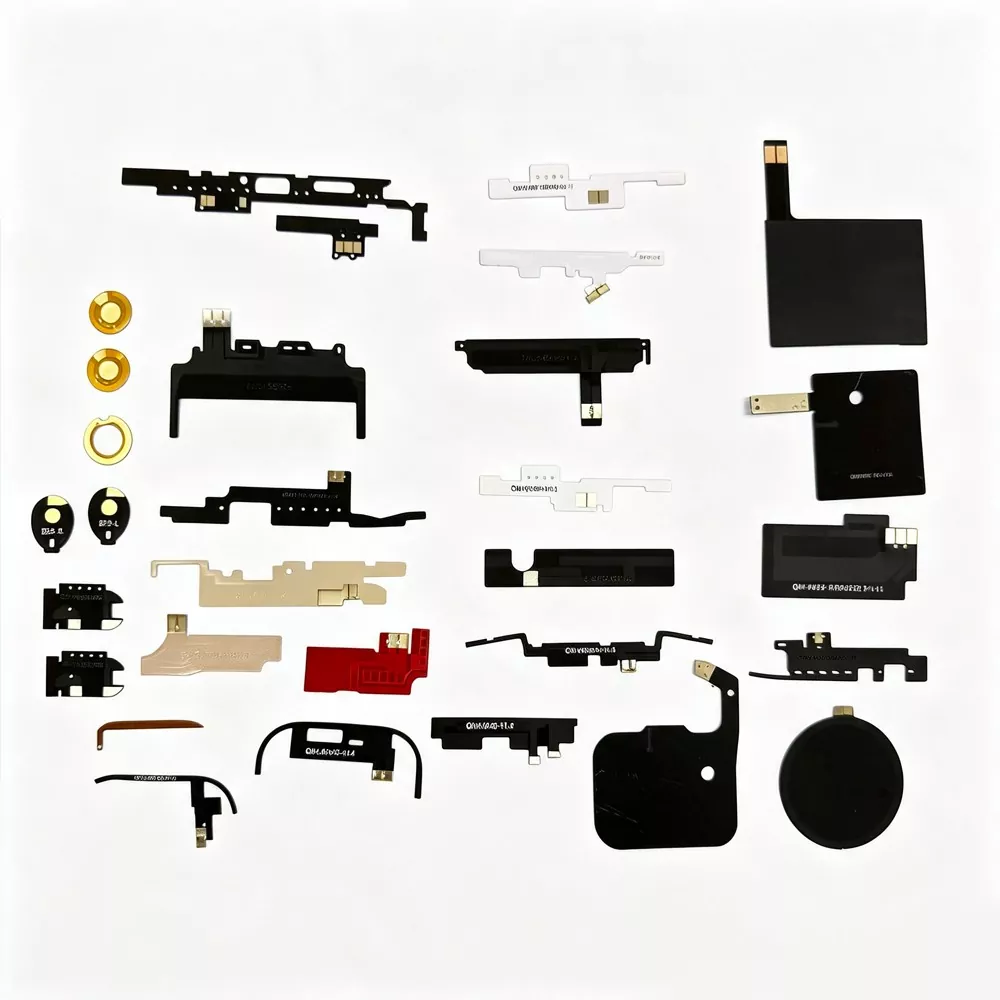

2. Single FPC flexible PIFA antenna

With a single-layer FPC flexible circuit board etching process, it is light, thin, flexible, bendable, and wall-attached, suitable for ultra-thin devices, irregular structures, and small bodies. It is currently the mainstream built-in antenna solution for smart hardware.

How PIFA antennas work

Many customers mistakenly think that the built-in antenna is just a "metal patch". In fact, it has a very rigorous radio frequency resonance structure, and the principle can be fully verified by spectrum analyzers, network analyzers, and anechoic chamber tests without the void theory.

1. Ground resonance principle: The PIFA structure relies on the radiation arm + ground coupling to form an inverted F resonance loop. Compared with ordinary antennas, it is less dependent on the ground of the device's main board and has a higher overall fit tolerance rate.

2. Low profile radiation: The antenna is extremely low and installed close to the fuselage, which can effectively reduce signal attenuation caused by metal shell shielding and solve the problem of signal plunge after the equipment is fitted.

3. Noise filtering: PIFA has inherent filtering properties that can filter out high-frequency noise generated by the motherboard CPU, power supply, and memory, significantly reducing background noise and improving signal-to-noise ratio.

4. Multi-band compatible resonance: Through precise routing, slotting, and impedance matching design, a single FPC PIFA antenna can simultaneously accommodate multiple bands including 2.4G, 5G, Bluetooth, and LTE, significantly saving internal space of the device.

Detailed Technical specifications

Advantages Over Peer Products

Ordinary antennas on the market often have common issues, including high housing attenuation, unstable VSWR, poor interference resistance, and inconsistent batch performance. Our PIFA Antenna provides clear advantages:

· Compared with ordinary PCB antennas: PCB antennas are easily affected by housing shielding. The antenna reduces housing attenuation by more than 70%.

· Compared with ceramic antennas: Ceramic antennas are fragile and sensitive to temperature differences, while this structure provides better shock resistance, heat resistance, and a higher overall pass rate.

· Compared with ordinary FPC antennas: Ordinary FPC antennas lack a PIFA resonant structure, resulting in significant signal drift. Our single FPC solution provides precise resonance and stable performance.

· Compared with no-name spring antennas: Ordinary spring antennas lack impedance matching, causing unstable signal performance. Qianmu Communication performs full inspection and calibration before shipment.

How to choose a quality PIFA antenna

1. Look at the structure: For airtight bodies, choose the PIFA structure instead of blindly using ordinary FPC/PCB antennas;

2. Consider the application scenarios: For vibration equipment, select the spring PIFA antenna; for ultra-thin equipment, choose the FPC PIFA antenna.

3 Look for batch consistency: Large factory mass production calibration, small batch performance differences, low after-sales failure rate;

4 Look at customization capabilities: Size, wiring, and matching can be modified according to the overall structure of the machine to fit different product ID designs.

FAQ

Q1: Can it be customized in size and frequency band?

A: Yes. Our company supports custom, full-size, full-band, impedance matching for spring PIFA antennas and single FPC PIFA antennas, and offers free scheme optimization.

Q2: What are the better signals of PIFA antennas than regular antennas?

A: The biggest advantage is that it has less attenuation in the case, is resistant to shielding and interference, and the real experience in the whole machine environment is far better than that of ordinary antennas.

Q3: Do you support export and can you provide a certificate?

A: Global export is supported. CE, ROHS, FCC, test reports, factory qualifications are available, fully meeting the B2B procurement requirements for foreign trade.
