Yagi Antenna

Technical Specifications

The following are the measured standard parameters of the regular Yagi antenna, which can be customized and adjusted as needed:

Comparison Between Yagi Antennas and Suction Cup Antennas

Many purchasing customers hesitate between these two antenna solutions because they are designed for different application scenarios and offer different performance characteristics. As a professional antenna factory, Shenzhen Qianmu Communication Technology Co., Ltd. clearly explains the key differences to help customers make the right choice quickly.

Signal Performance Differences

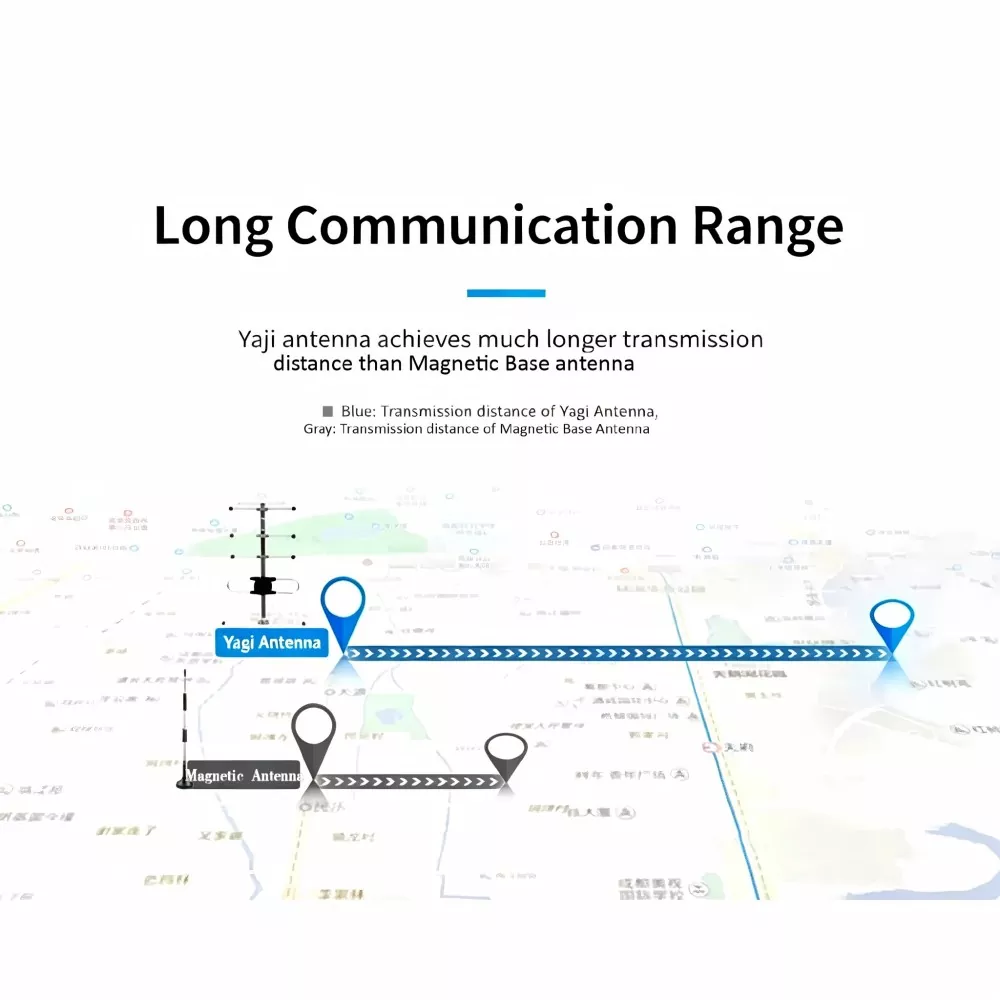

The Yagi Antenna is a directional high-gain antenna with a gain range of up to 6–18dBi. It provides strong signal focusing, longer transmission distance, and better anti-interference performance.

In comparison, Suction Cup Antennas are generally omnidirectional low-gain antennas, with a typical gain of only 2–5dBi. Their signals are distributed in multiple directions, resulting in shorter transmission distances and greater sensitivity to environmental interference.

Application Scenario Differences

This directional antenna solution is mainly designed for outdoor long-distance communication applications, including mountainous areas, construction sites, bridge transmission, IoT remote communication, and wireless signal blind spot coverage.

The other antenna type is commonly used for indoor, vehicle-mounted, and short-distance signal reception applications. It is more suitable for environments with shorter communication distances and stronger signal conditions.

Environmental Adaptation Differences

The antenna supports IP65 waterproof and dustproof protection and offers resistance to high and low temperatures, rust, and corrosion, making it suitable for long-term outdoor use.

Compared with this, ordinary models have weaker waterproof and aging resistance performance, making them less suitable for continuous installation in harsh outdoor environments.

Installation and Stability Differences

The directional antenna is installed with a mounting bracket, allowing angle adjustment and providing firm fixation. It is less likely to loosen under strong winds or heavy rain.

The suction-mounted antenna relies on suction or magnetic mounting methods and is mainly suitable for flat surfaces. In outdoor windy environments, it may experience movement or detachment, affecting signal stability.

Engineering Adaptation Differences

Yagi Antennas support customization of frequency bands, gain, and interface options to meet different industrial, export, and engineering project requirements.

Standard suction-mounted models generally have fixed parameters with limited customization options, making them more suitable for standard small equipment applications.

Application Scenarios

The directional transmission capability of the Yagi Antenna makes it suitable for various outdoor and industrial wireless communication scenarios:

· Mobile signal enhancement in rural areas, mountainous regions, and remote locations

· Wireless bridge transmission for outdoor surveillance systems in construction sites, mining areas, tunnels, and parks

· Drone image transmission and model aircraft wireless signal enhancement and stabilization

· IoT devices, industrial sensors, and long-distance data transmission applications

· Amateur radio communication and outdoor intercom signal extension

· Long-distance WiFi coverage enhancement for urban buildings and residential areas

Product Advantage: Compared with peers

Most of the common Yagi antennas on the market have problems such as false gain labeling, thin material, poor anti-interference, and easy rusting. Qianmu Communication, as a professional supplier, controls quality throughout the entire process from research and development, material selection to testing:

• True parameters without false labeling: All gain and frequency band parameters are measured through laboratory equipment, data is traceable and verifiable, eliminating the chaos of false labeling.

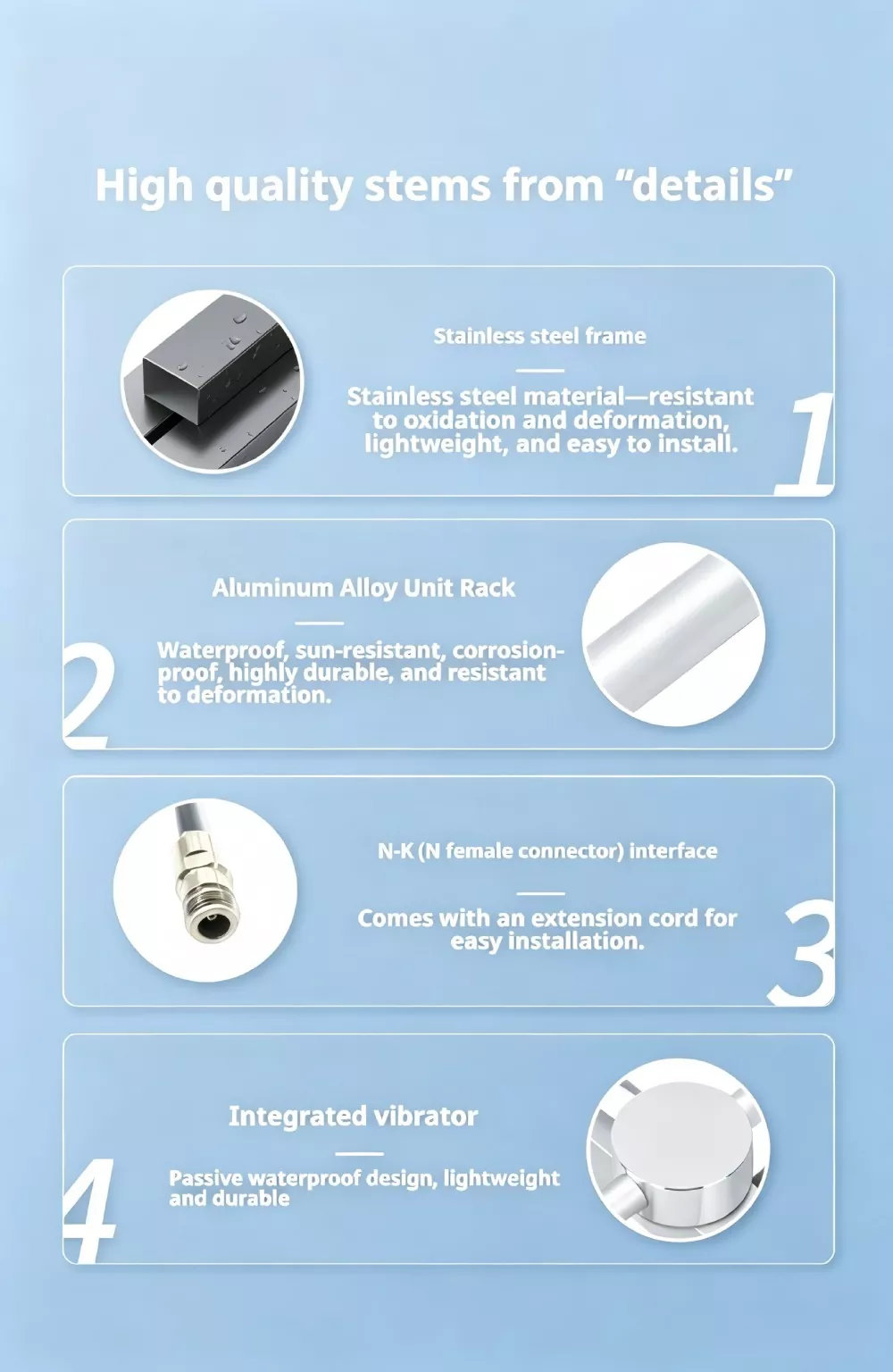

• Solid material usage: Thickened alloy vibrators, upgraded anti-rust and anti-corrosion processes, significantly enhanced outdoor durability compared to thinner materials in the same industry.

• Strict quality control: Each product undergoes standing wave, gain, water resistance, high and low temperature tests before leaving the factory, with a defect rate far lower than the industry average.

• Better service: Support for small-batch stock purchase + large-batch customization, fast delivery, and full follow-up of after-sales technical support.

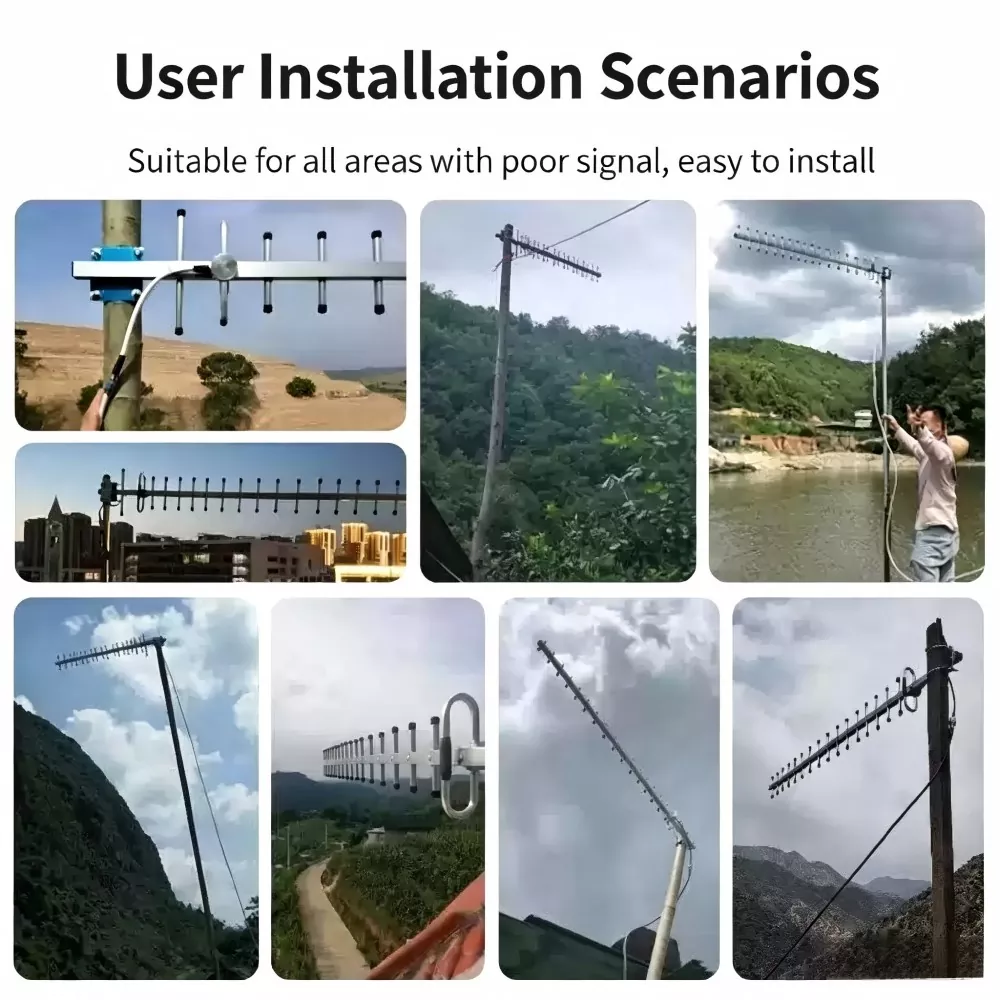

Installation Guide

The Yagi antenna is easy to install, requires no professional skills, and can be quickly installed and debugged by a single person:

1. Fixing bracket: Secure the matching mounting bracket to a flat and stable position on a pole, wall, etc., and tighten the screws to reinforce.

2. Connect devices: Align the antenna interface with the signal amplifier, bridge, base station and other device interfaces and tighten them to prevent loosening.

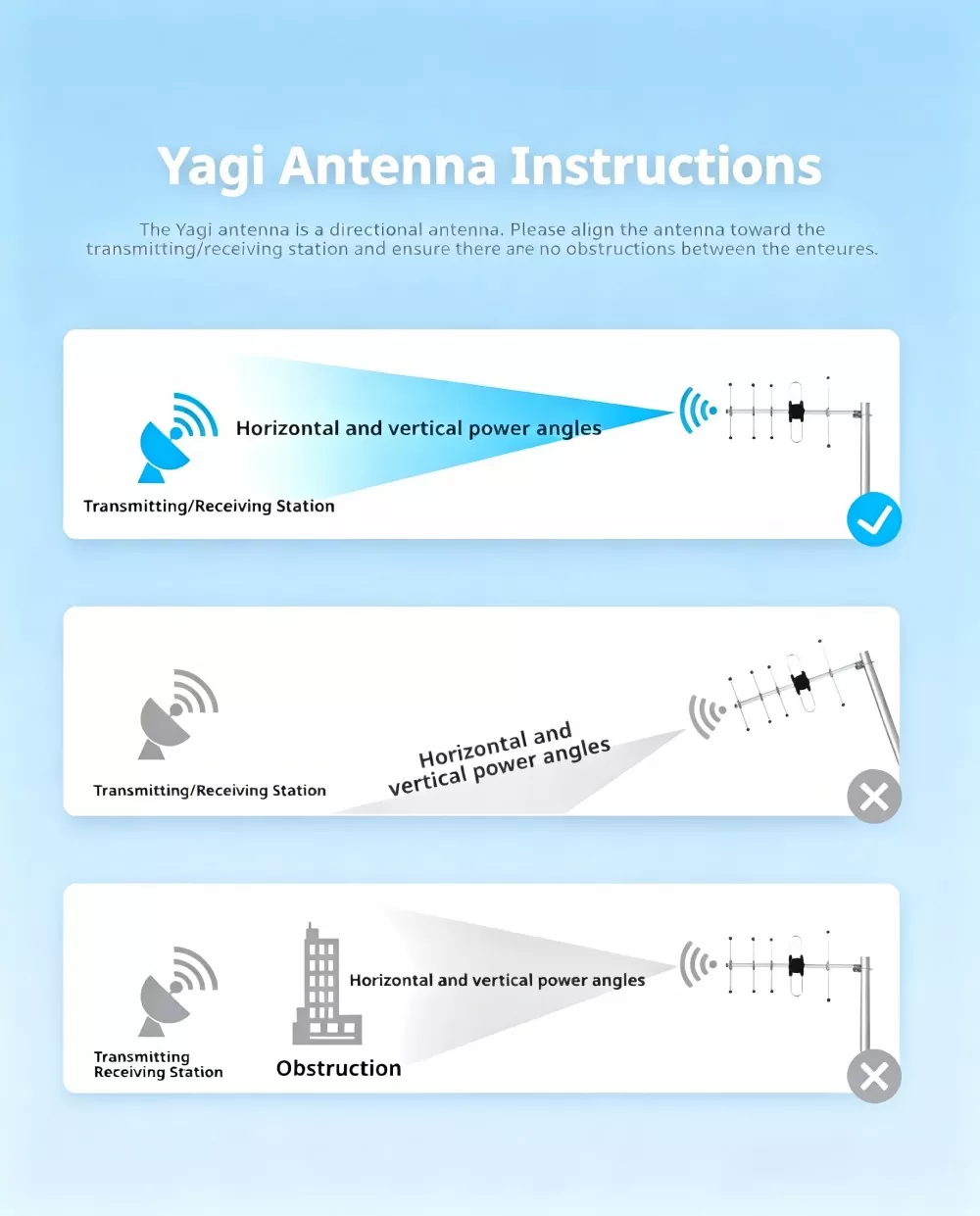

3. Angle adjustment: Adjust the antenna orientation according to the direction of the signal source and keep the antenna facing the signal transmitter to ensure the best reception effect.

4. Reinforced waterproofing: After installation, wrap the joints with waterproofing for outdoor installation to effectively prevent moisture and water and extend the service life.
